C311

C311 Body Harness To Driver Seat Harness (With RPO Code A50):

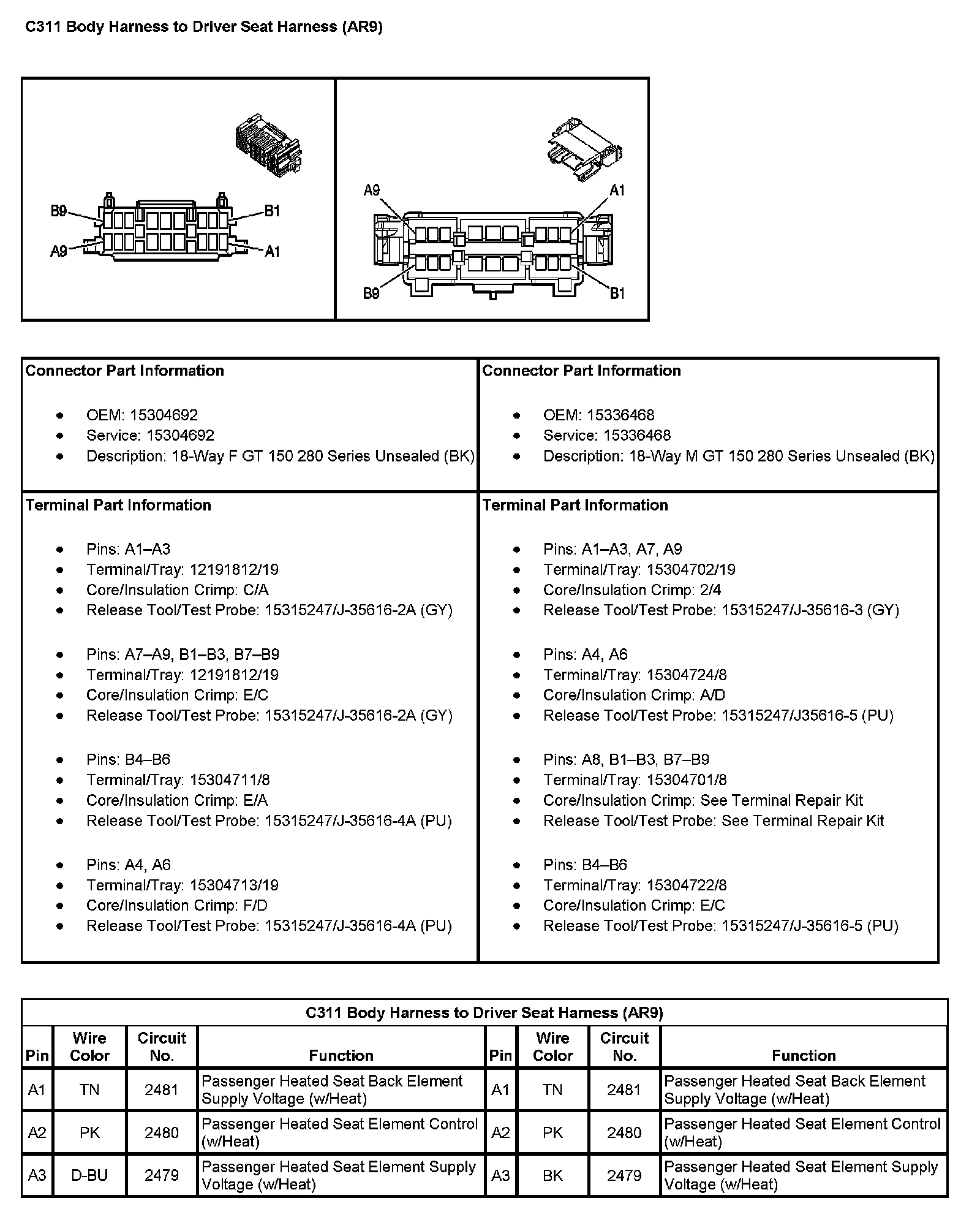

C311 Body Harness To Driver Seat Harness (With RPO Code AR9) (Pin A1 To A3):

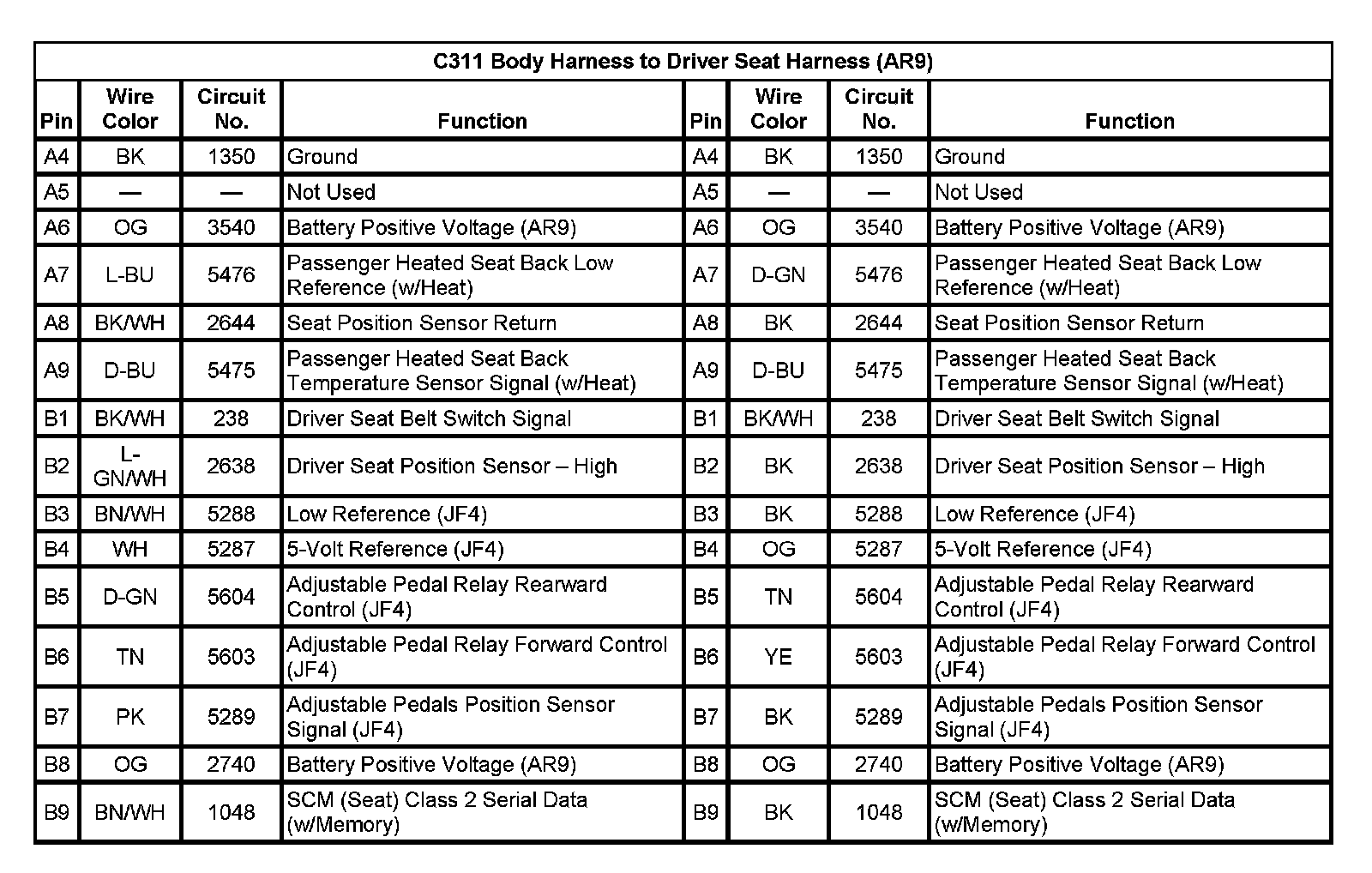

C311 Body Harness To Driver Seat Harness (With RPO Code AR9) (Pin A4 To B9):
