Transfer Case Shift Control Module C2

Transfer Case Shift Control Module C2

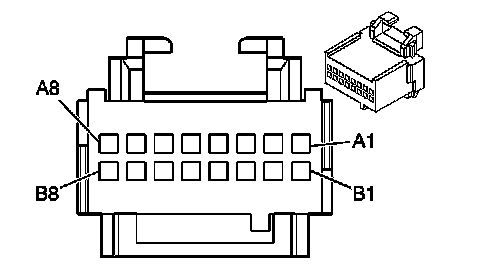

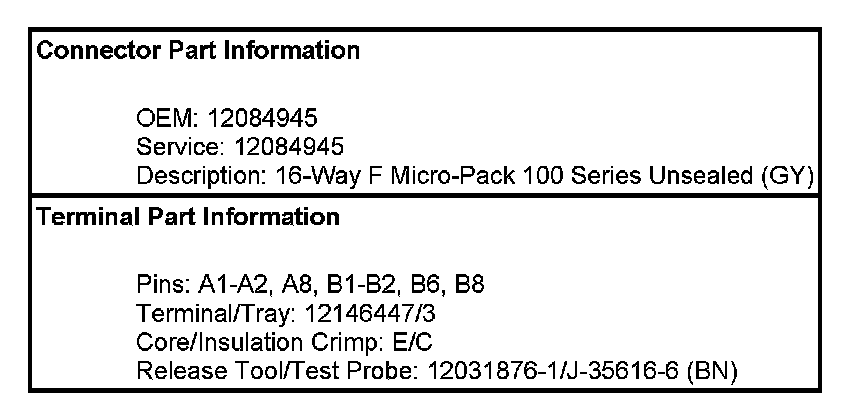

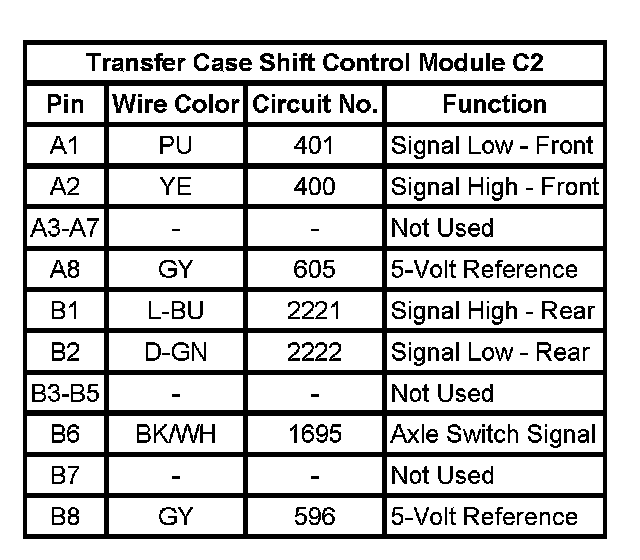

Transfer Case Shift Control Module C2:
