Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics (5.3L/6.0L)

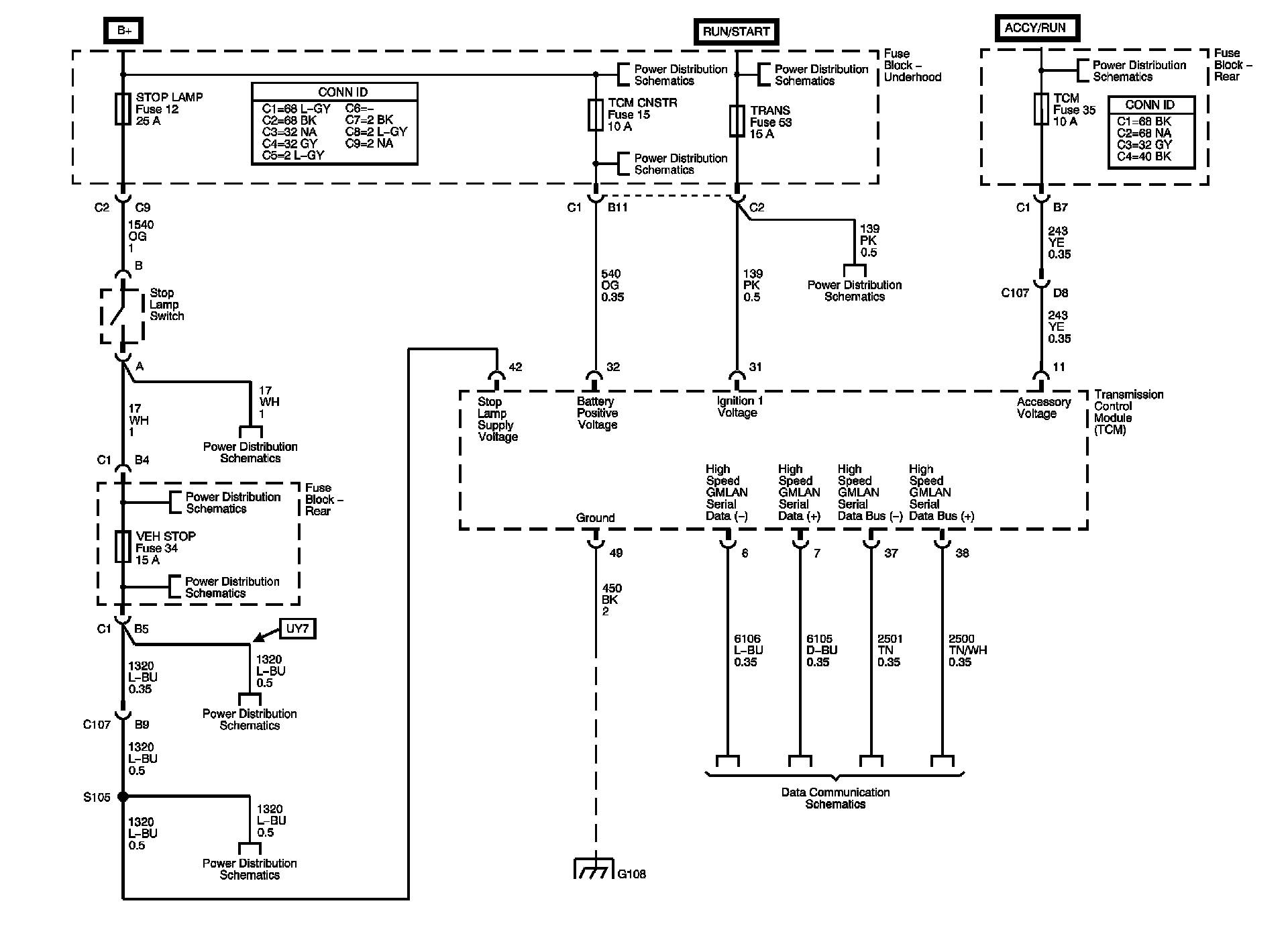

Module Power, Ground, Serial Data, and Stop Lamp Switch
Automatic Transmission Controls Schematics 1:

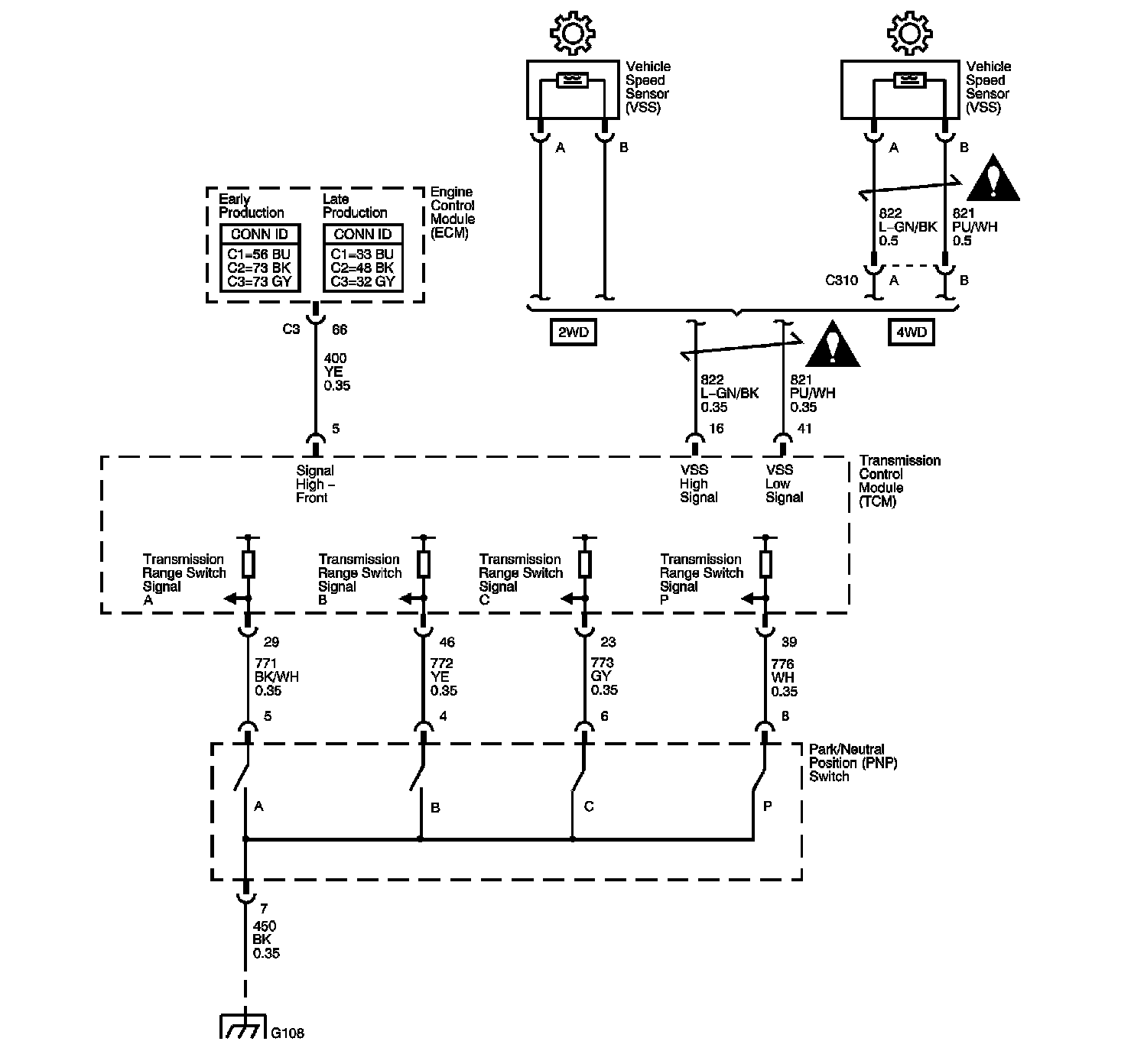

PNP Switch and VSS
Automatic Transmission Controls Schematics 2:

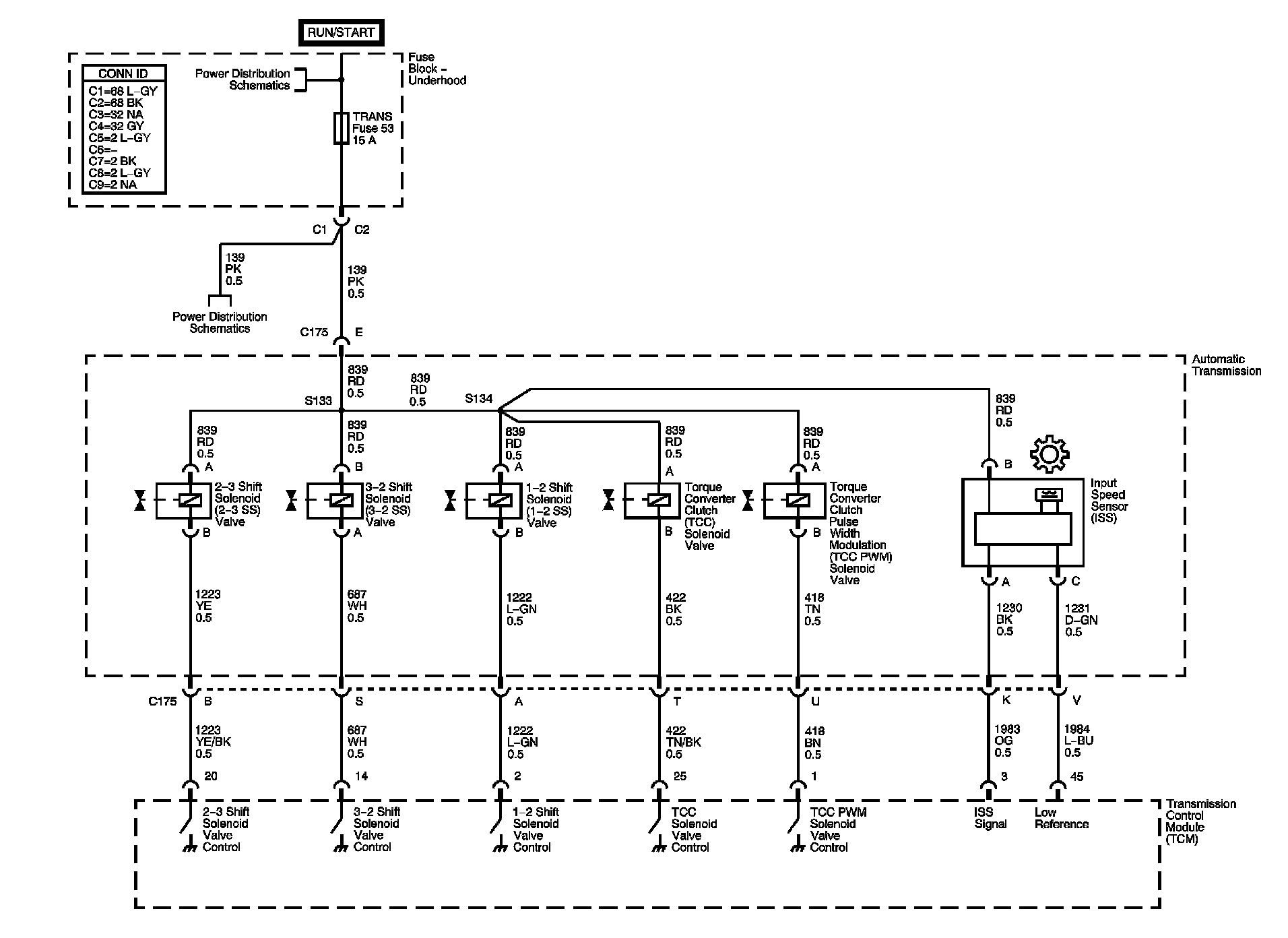

Shift Controls
Automatic Transmission Controls Schematics 3:
Temperature and Pressure Controls
Automatic Transmission Controls Schematics 4:
