P2671



DTC P2671

Circuit Description

The transmission control module (TCM) provides voltage to shift solenoid 1, 2, and 3 (SS1, SS2, and SS3) and pressure control solenoid 2 (PCS2) through a separate solid-state device called high side driver 2 (HSD2). HSD2 is continuously ON during normal operation, except during a brief circuit test. The TCM regulates control current to the solenoids by switching the appropriate low side driver ON and OFF.

DTC P2671 is a type A DTC.

DTC Descriptor

This diagnostic procedure supports the following DTC:

DTC P2671 Actuator Supply Voltage 2 High

Conditions for Running the DTC

* The components are powered and ignition voltage is greater than 9.0 volts and less than 18 volts.
* HSD2 is commanded ON.

Conditions for Setting the DTC

DTC P2671 sets when the TCM detects greater than 6.0 volts at the HSD2 terminal prior to commanding HSD2 ON.

Action Taken When the DTC Sets

* The TCM illuminates the malfunction indicator lamp (MIL).
* If the failure occurs while in a forward range, a shift to 1st, 3rd or 5th range is made.
* While diagnostic response is active, if the shift selector is moved to NEUTRAL, the transmission will shift to NEUTRAL. If the shift selector is moved to REVERSE, the transmission will shift to REVERSE. If the shift selector is moved to a forward range or to REVERSE and the transmission is compromised by overspeeding or direction change, the transmission will shift to NEUTRAL.
* DTC P2671 is stored in TCM history.
* Main modulation (MAIN MOD) is inhibited.
* The TCM freezes shift adapts.
* The TCM inhibits torque converter clutch (TCC) engagement.

Conditions for Clearing the MIL/DTC

A scan tool can clear the code from TCM history. The TCM automatically clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without failure.

Diagnostic Aids

* Inspect the wiring for poor electrical connections at the TCM. Inspect for the following conditions:

- A bent terminal
- A backed-out terminal
- A damaged terminal
- Poor terminal tension
- A chafed wire
- A broken wire inside the insulation

* When diagnosing for an intermittent short or open, massage the wiring harness while watching the test equipment for a change.
* You may have to drive the vehicle in order to experience a condition.

Step 1 - Step 7:

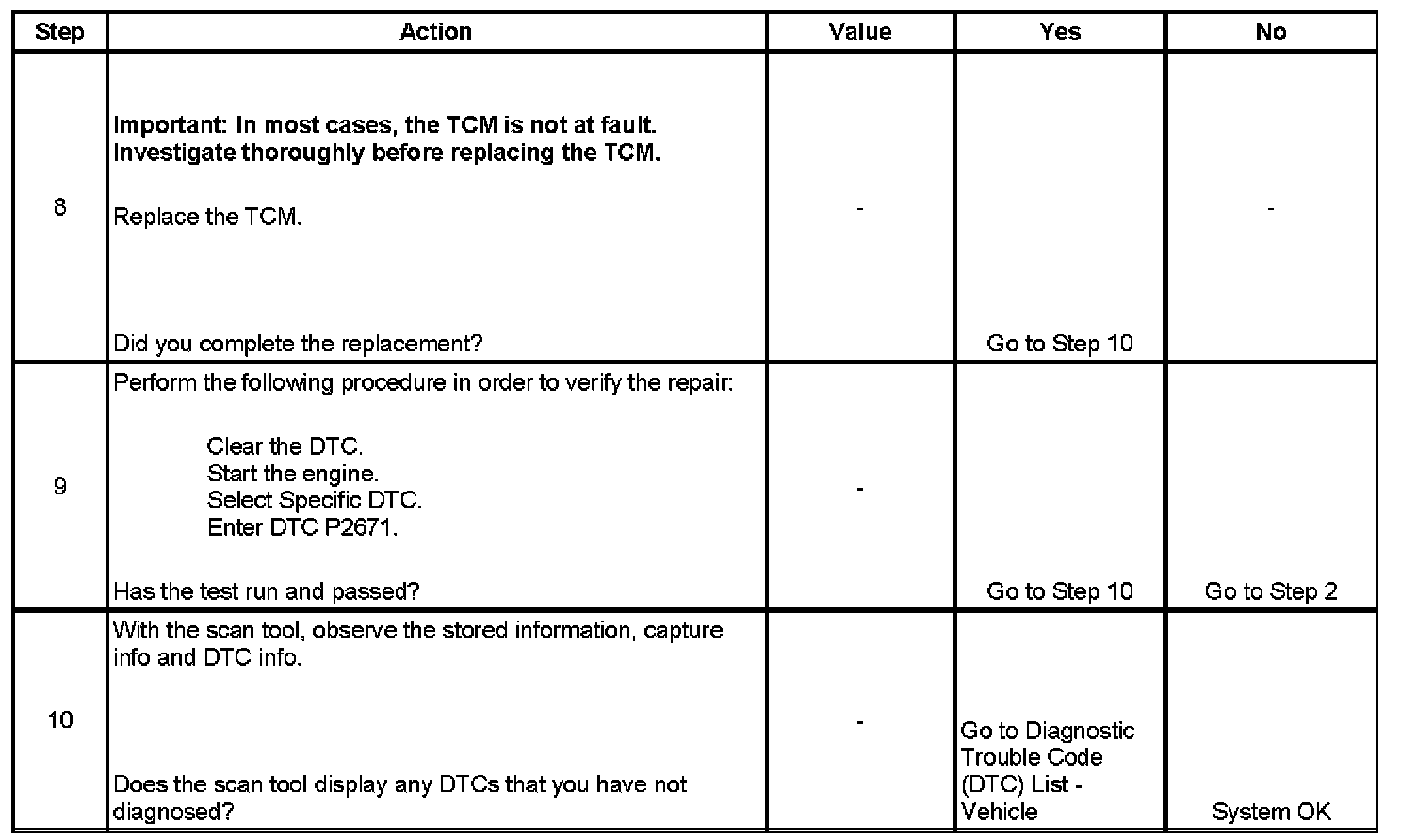

Step 8 - Step 10:
