Removal and Replacement

Amplifier Replacement

Removal Procedure




1. If equipped with a Bose(TM) amplifier, remove the radio amp fuse located under the hood electrical center. Refer to Electrical Center Identification Views.
2. Remove the floor console bezel.
3. Remove the cupholder.
4. Remove the bolts (1) retaining the console to the instrument panel (I/P).
5. Remove the console storage bin.
6. Remove the center console end panel.
7. Disconnect the audio amplifier electrical connectors.




8. Remove the 4 screws retaining the upper console bracket to the lower console bracket.
The front 2 screws (1) are shown in the graphic.




9. Move both front seats to the fully forward.
10. Reposition the inboard seat track trim (1) in order to gain access to the rear console side panel screw (2).
11. Remove both rear console side panel screws.




12. Move both front seats to the fully rearward.
13. Remove both front console side panel screws (1).




14. Disconnect the floor console electrical connector.
15. Remove the console assembly from the vehicle.

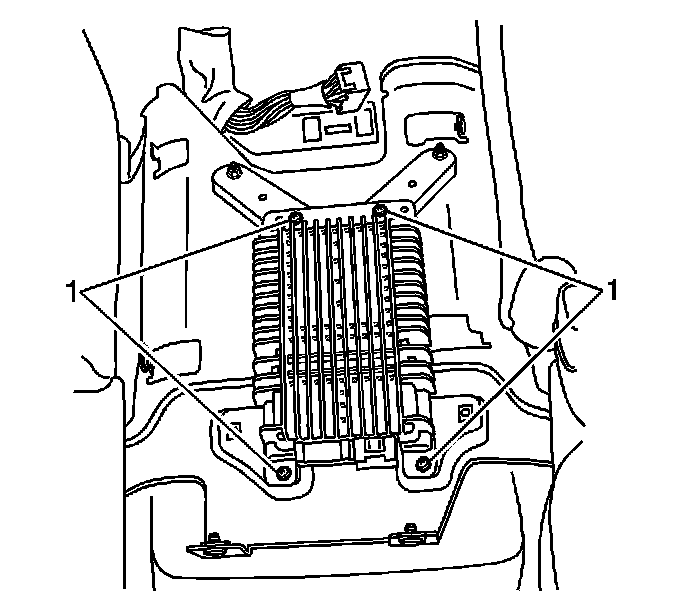

16. Remove the audio amplifier screws (1).
17. Remove the audio amplifier from the vehicle.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install the audio amplifier to the floor console lower bracket.
2. Install the amplifier screws.

Tighten the screws to 3.4 N.m (30 lb in).




3. Install the floor console.
4. Connect the floor console electrical connector.
5. Install the screws (1) that retaining the upper console bracket to the lower console bracket.

Tighten the retaining screws to 2 N.m (18 lb in).




6. Install the bolts (1) retaining the console to the I/P.

Tighten the bolts to 4 N.m (35 lb in).




7. Install both front console side panel screws (1).

Tighten the screws to 2 N.m (18 lb in).




8. Move both front seats to the fully forward.
9. Install both rear console side panel screws (2).

Tighten the retaining screws to 2 N.m (18 lb in).

10. Reposition the inboard seat track trim (1).
11. Connect the audio amplifier electrical connectors.
12. Connect the floor console electrical connector.
13. Install the center console end panel.
14. Install the console storage bin.
15. Install the cupholder to the console.
16. Install the upper console bezel.
17. Install the radio amp fuse. Refer to Electrical Center Identification Views.
18. If the amplifier has been replaced, perform the audio amplifier set up procedure for the BOSE(TM) amplifier with UQ7 and Y91. Refer to Audio Amplifier Setup. Programming and Relearning
19. Refer to Control Module References for programming and setup information. Programming and Relearning
