Auxiliary Power Outlet
>>
Auxiliary Power Outlet
Auxiliary Power Outlet
Auxiliary Power Outlet - Console (with RPO Code UQ7):
Auxiliary Power Outlet - Front (Except RPO Code Z75):

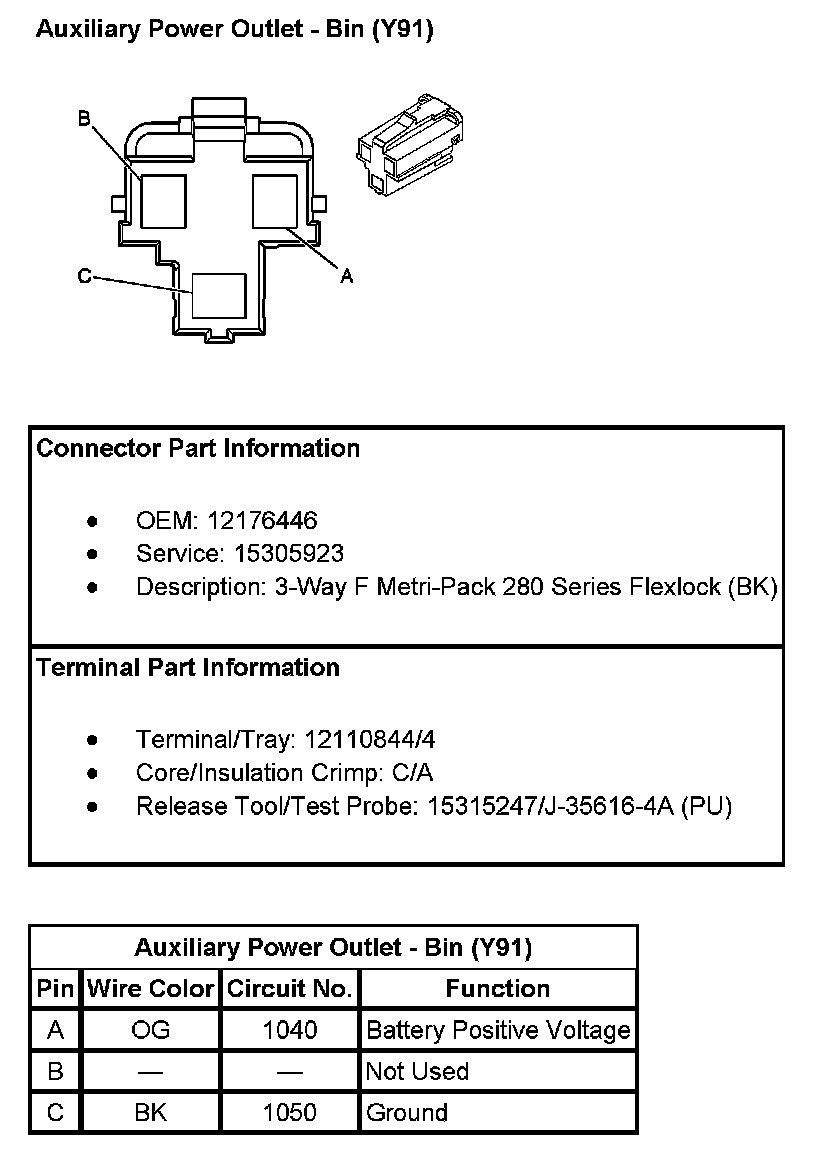

Auxiliary Power Outlet - Bin (with RPO Code Y91):
