Air Delivery Improper
Air Delivery Improper
Diagnostic Aids
* The condition may be intermittent. Refer to Testing for Intermittent Conditions and Poor Connections. Component Tests and General Diagnostics
* Inspect the air delivery system for the following conditions:
- A dirty HVAC air filter, if applicable
- An obstruction to the airflow
- Air leaks
- Misaligned air ducts
- Broken or binding linkages or doors

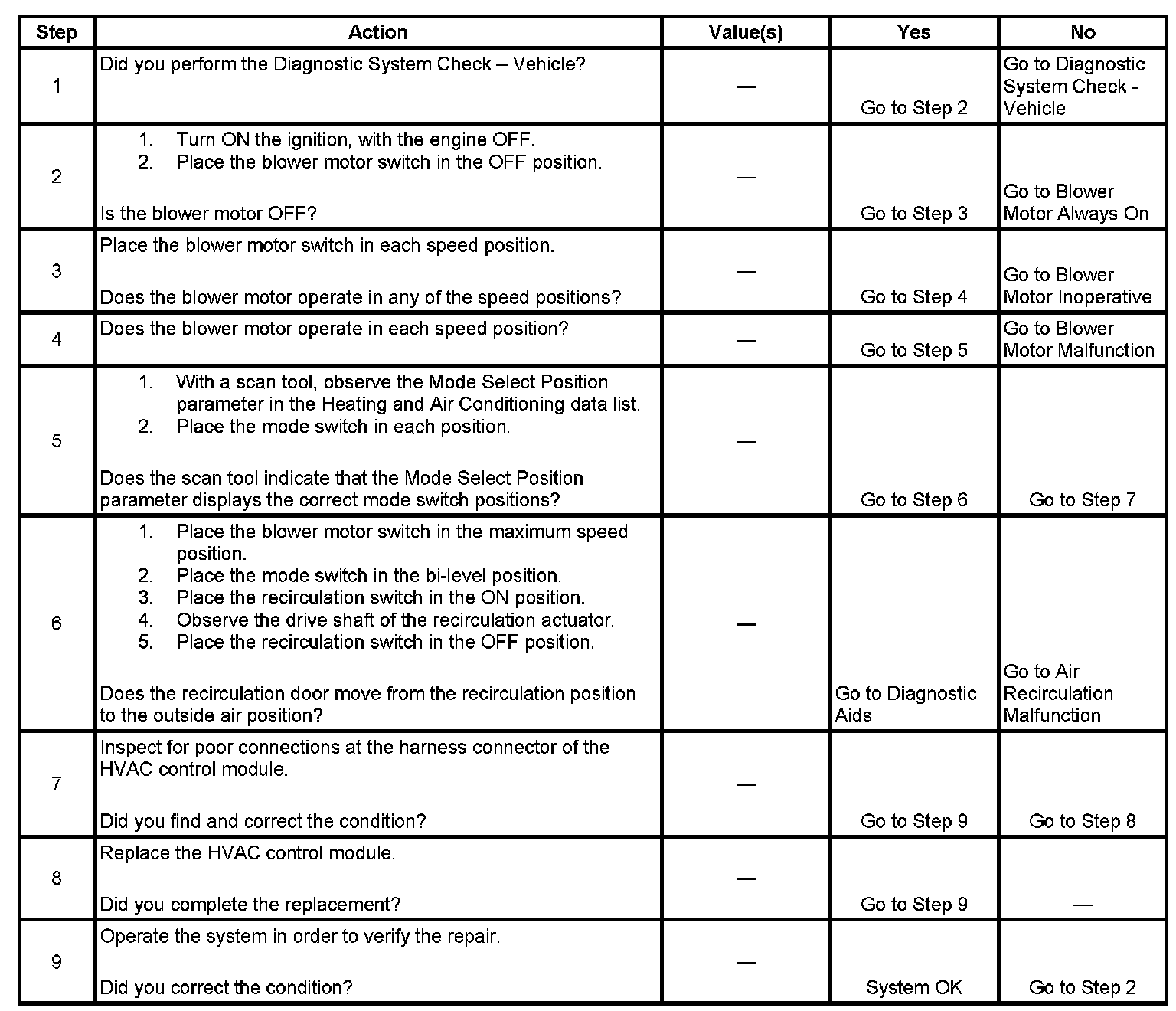

Test
