Water-in-Fuel Lamp Always On



Water-in-Fuel Lamp Always On

Diagnostic Aids

* The water in fuel sensor illuminates the Water in Fuel message when there is water in the fuel system. Perform the Water in Fuel Draining procedure before performing the following test steps to accurately determine if a malfunction exists. Refer to Water-in-Fuel Draining.
* For intermittent diagnosis, Refer to Testing for Intermittent Conditions and Poor Connections. Component Tests and General Diagnostics

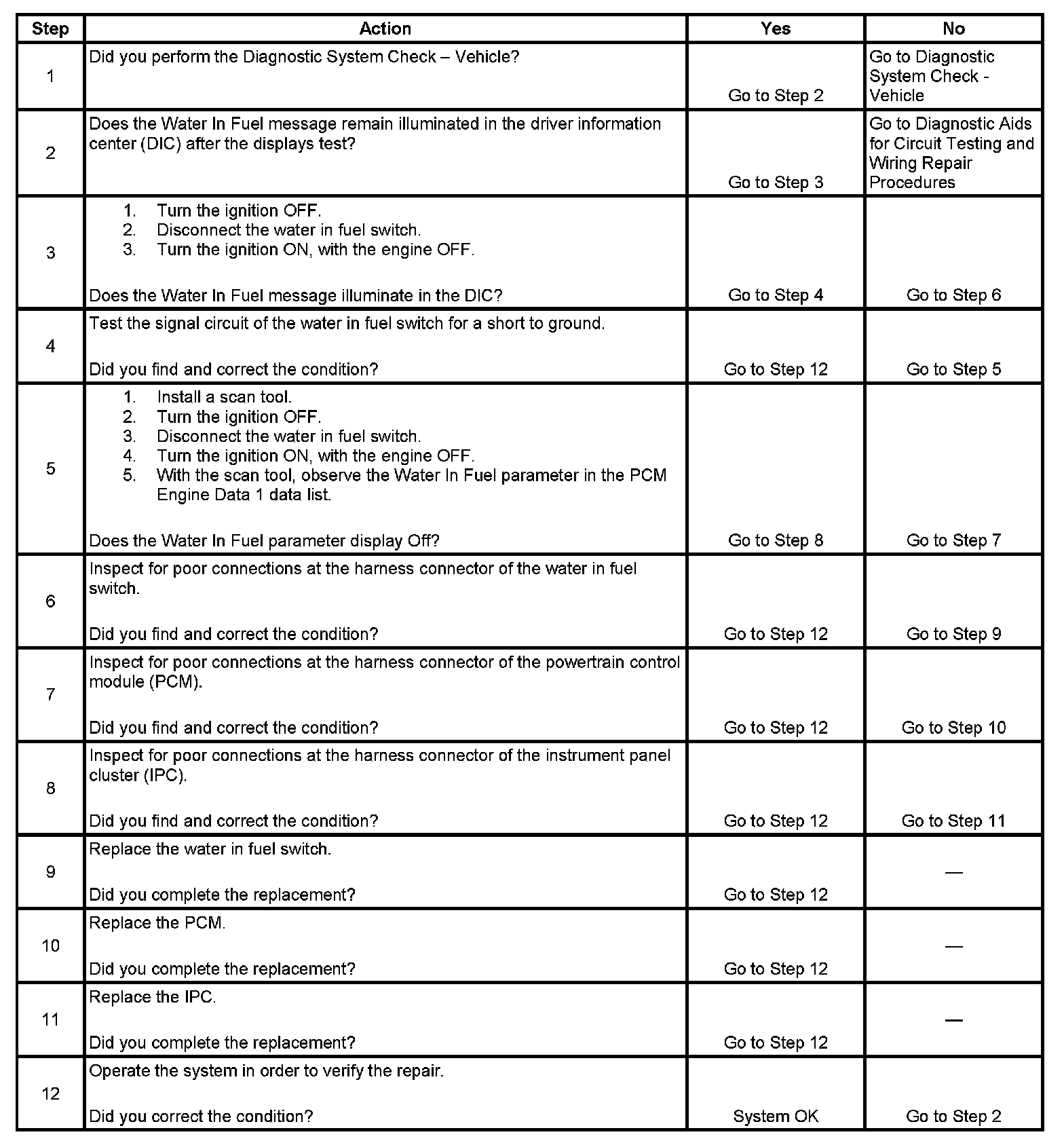

Test

Step 1 - Step 12:
