Seat Belt Replacement - Center Rear

Seat Belt Replacement - Center Rear

Caution: To avoid personal injury to the occupants of the vehicle, observe the following precautions:

* More than one supplier's seat belts are used, therefore, install ONLY the seat belt components specified in the GM parts catalog.

* To verify that the correct seat belt components were installed, insert the seat belt latch in the seat belt buckle. The latch must be fully seated and be retained in the buckle until purposely released.

Removal Procedure

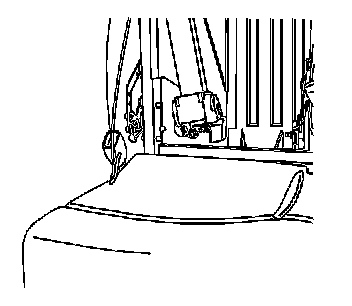

1. Remove the seat belt guide cover (1).
2. Remove the rear seat armrest.




3. Release the J-Clip from under the center armrest.
4. Remove the nut from the seat belt retractor.




5. Remove the bolt (1) from the seat belt anchor.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the bolt (1) to the seat belt anchor.

Tighten the bolt to 52 N.m (38 lb ft).




2. Install the nut to the seat belt retractor.

Tighten the nut to 52 N.m (38 lb ft).

3. Install the J-Clip under the center armrest.




4. Install the rear seat armrest.
5. Install the seat belt guide cover (1).
