Auxiliary Battery Replacement



Auxiliary Battery Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution.

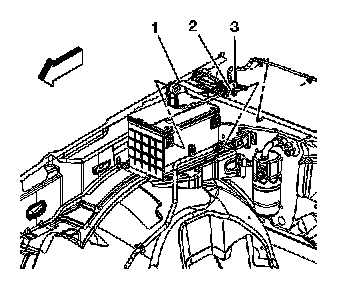

1. Disconnect the auxiliary battery negative cable.
2. Unsnap the auxiliary battery positive cable cap.
3. Disconnect the auxiliary positive battery cable (1).




4. Remove the battery hold down retainer bolt and retainer.
5. Remove the auxiliary battery.

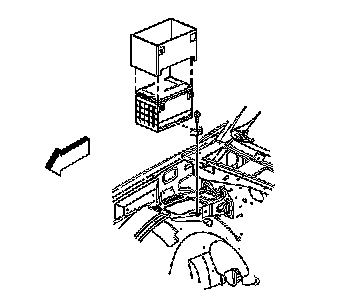

6. Remove the battery insulator, if necessary.

Installation Procedure




1. Install the battery insulator, if necessary.
2. Install the auxiliary battery.

Notice: Refer to Fastener Notice.

3. Install battery hold down retainer and bolt.

Tighten the bolt to 25 N.m (18 lb ft).




4. Connect the auxiliary positive battery cable (1).

Tighten the bolt to 17 N.m (13 lb ft).

5. Snap the auxiliary positive battery cable cap closed.
6. Connect the auxiliary battery negative cable.
