Underhood Fuse Block - Cooling Fan
Underhood Fuse Block - Cooling Fan

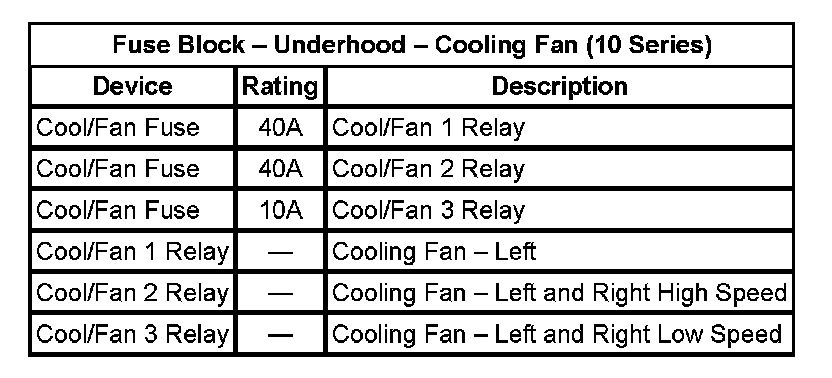

Fuse Block - Underhood - Cooling Fan (10 Series):
Fuse Block - Underhood - Cooling Fan (10 Series):
