Output Shaft Speed Sensor Replacement

Output Shaft Speed Sensor Replacement

Removal Procedure

Important:
This procedure is for 2-wheel drive (2WD) vehicles only. If the vehicle is equipped with 4-wheel drive (4WD), the output speed sensor is located on the transfer case.





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

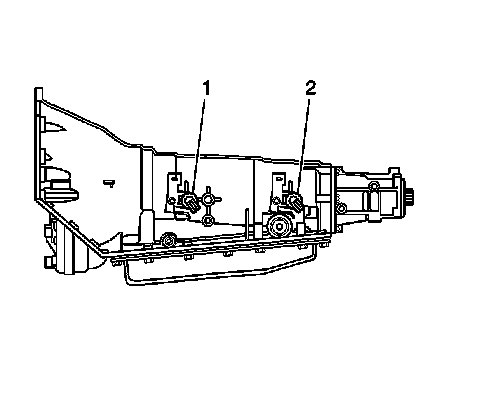

2. Disconnect the output speed sensor (2) electrical connector.





3. Remove the output speed sensor bolt.
4. Remove the output speed sensor (2).
5. Inspect the output speed sensor (2) for any evidence of damage.

Installation Procedure





1. Lubricate the output speed sensor seal with automatic transmission fluid.
2. Install the output speed sensor (2).

Notice:
Refer to Fastener Notice.

3. Install the output speed sensor bolt.

Tighten the bolt to 11 Nm (96 inch lbs.).





4. Connect the output speed sensor (2) electrical connector.
5. Lower the vehicle.
