Drive Pinion Flange/Yoke and/or Oil Seal Replacement (All Except 9.75 Inch Axle)



Drive Pinion Flange/Yoke and/or Oil Seal Replacement (All Except 9.75 Inch Axle)

Tools Required

^ J 8614-01 Flange/Pulley Holding Tool
^ J 22388 Rear Axle Pinion Oil Seal Installer - Rear (8.6 inch, 9.5 inch axle)
^ J 44414 Rear Axle Pinion Oil Seal Installer (10.5 inch, 11.5 inch axle)

Removal Procedure

1. Important:
Observe and mark the positions of all the driveline components, relative to the propeller shaft and the axles, prior to disassembly. These components include the propeller shafts, drive axles, pinion flanges, output shafts, etc. Reassemble all the components in the exact places in which you removed the parts. Follow any specifications, torque values, and any measurements made prior to disassembly.

Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assemblies (8.6 inch, 9.5 inch axles).
3. Remove the rear brake calipers (8.6 inch, 9.5 inch axles). Refer to Rear Brake Caliper Replacement.
4. Remove the brake rotors (8.6 inch, 9.5 inch axles). Refer to Rear Brake Rotor Replacement.
5. Remove the axle shafts (10.5 inch, 11.5 inch axle). Refer to Rear Axle Shaft and/or Gasket Replacement.





6. Reference mark the rear propeller shaft (3) to the rear axle pinion yoke (4).
7. Disconnect the propeller shaft from the axle. Wrap the bearing caps with tape in order to prevent the loss of bearing rollers. Support the propeller shaft as necessary.





8. Measure the amount of torque required to rotate the pinion. Use an inch-pound torque wrench. Record this measurement for reassembly. This will give the combined preload for the following components:
^ The pinion bearings
^ The pinion pilot bearing (10.5 inch axle)
^ The pinion oil seal
^ The differential case bearings
^ The axle bearings (8.6 inch, 9.5 inch axles)
^ The axle seals (8.6 inch, 9.5 inch axles)

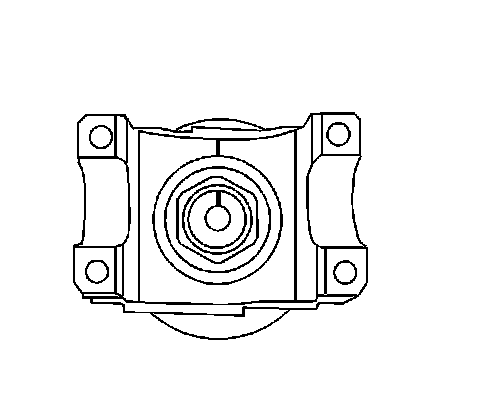

9. Place an alignment mark between the pinion and the pinion yoke.





10. Install the J 8614-01 as shown.
11. Remove the pinion nut while holding the J 8614-01.
12. Remove the washer.





13. Install the J 8614-2 (2) and the J 8614-3 (3) into the J 8614-01 (1) as shown.
14. Remove the pinion yoke by turning the J 8614-3 (3) clockwise while holding the J 8614-01 (1). Use a container in order to retrieve the lubricant.
15. Remove the pinion oil seal. Use a suitable seal removal tool. Do not damage the housing.

Installation Procedure





1. Install a new pinion oil seal using the J 22388 (8.6 inch, 9.5 inch axles) or the J 44414 (10.5 inch, 11.5 inch axle).
2. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the splines of the pinion yoke.
3. Install the pinion yoke. Align the marks made during removal.

4. Notice:
Refer to Pinion Flange/Yoke Installation Notice.

Seat the pinion yoke onto the pinion shaft by tapping it with a soft-faced hammer until a few pinion shaft threads show through the yoke.
5. Install the washer and a new pinion nut.





6. Install the J 8614-01 onto the pinion yoke as shown.

7. Notice:
Refer to Fastener Notice.

Important:
If the rotating torque is exceeded, the pinion will have to be removed and a new collapsible spacer installed.

Tighten the pinion nut while holding the J 8614-01.

^ Tighten the nut until the pinion end play is just taken up. Rotate the pinion while tightening the nut to seat the bearings.





8. Measure the rotating torque of the pinion. Compare this measurement with the rotating torque recorded during removal.

Tighten the nut in small increments, as needed, until the rotating torque is 0.40 - 0.57 Nm (3 - 5 inch lbs.) greater than the rotating torque recorded during removal.

9. Once the specified torque is obtained, rotate the pinion several times to ensure the bearings have seated. Recheck the rotating torque and adjust if necessary.





10. Install the propeller shaft (3) to the pinion yoke (4). Align the reference marks made during removal.
11. Install the propeller shaft yoke retaining clamps and the bolts.

Tighten the propeller shaft yoke retaining clamp bolts to 25 Nm (18 ft. lbs.).

12. Install the axle shafts (10.5 inch, 11.5 inch axle). Refer to Rear Axle Shaft and/or Gasket Replacement.
13. Install the brake rotors (8.6 inch, 9.5 inch axles). Refer to Rear Brake Rotor Replacement.
14. Install the brake calipers (8.6 inch, 9.5 inch axles). Refer to Rear Brake Caliper Replacement.
15. Install the tire and wheel assemblies.
16. Inspect and add axle lubricant to the axle housing, if necessary. Refer to Rear Axle Lubricant Level Inspection.
17. Lower the vehicle.
