NVG 263-NP1 - Transfer Case

Transfer Case Shift Control Switch Replacement

Removal Procedure





1. Remove the instrument panel (IP) cluster bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement.

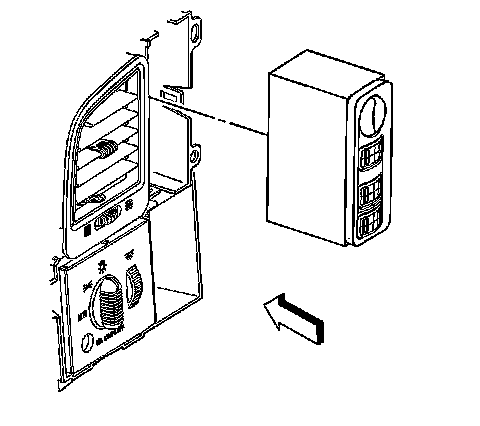

2. Pull the tabs on the side of the transfer case driver control switch out.
3. Pull the transfer case driver control switch straight out from the panel.

Installation Procedure





1. Important:
Make sure that the transfer case control switch is seated properly in the instrument panel before installing the instrument panel trim bezel.

Install the transfer case driver control switch into the instrument panel.
2. Install the IP cluster bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement.
