Removal

Ventilator

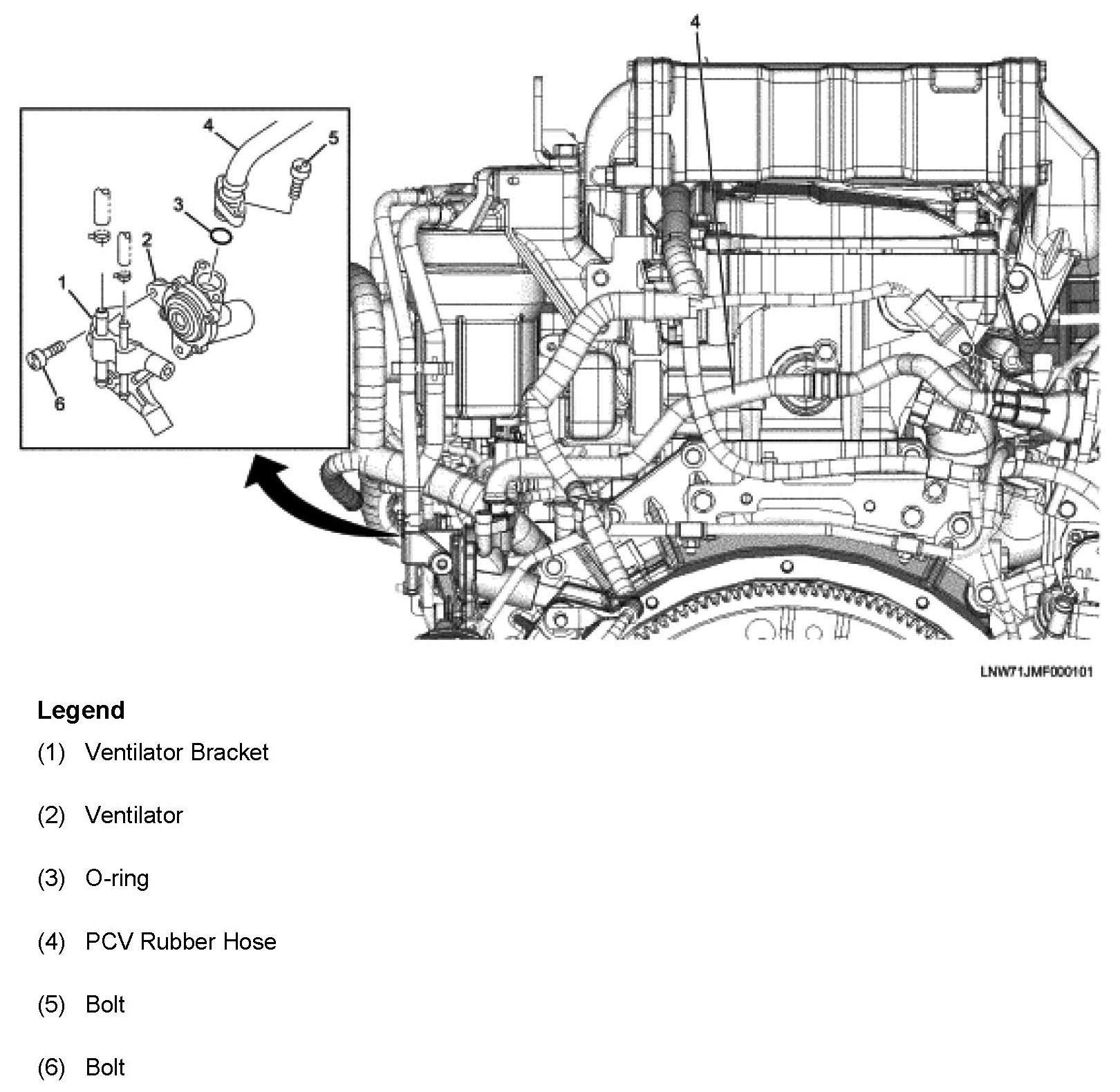

Components


Removal







1. Remove the PCV rubber hose connecting bolts. Use EN-48711-1 to remove the tamper proof bolts.
2. Remove the ventilator bracket. Use EN-48711-2 to remove the tamper proof bolts.
3. Remove the ventilator. Use EN-48711-2 to remove the tamper proof bolts.
