Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC
>>
2007
>>
Yukon XL Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System
Connector End Views

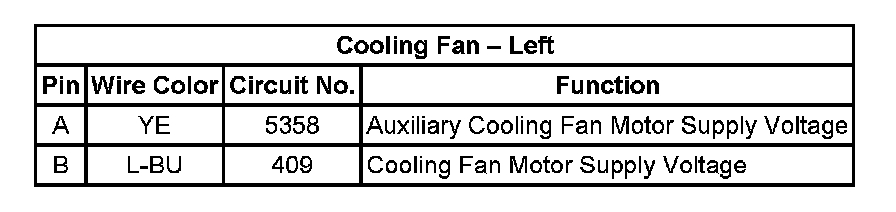

Cooling Fan - Left:
Cooling Fan - Right:
