Fog/Driving Lamp

Fog Lamp - LF (With RPO Codes X88, Z88 And T96):

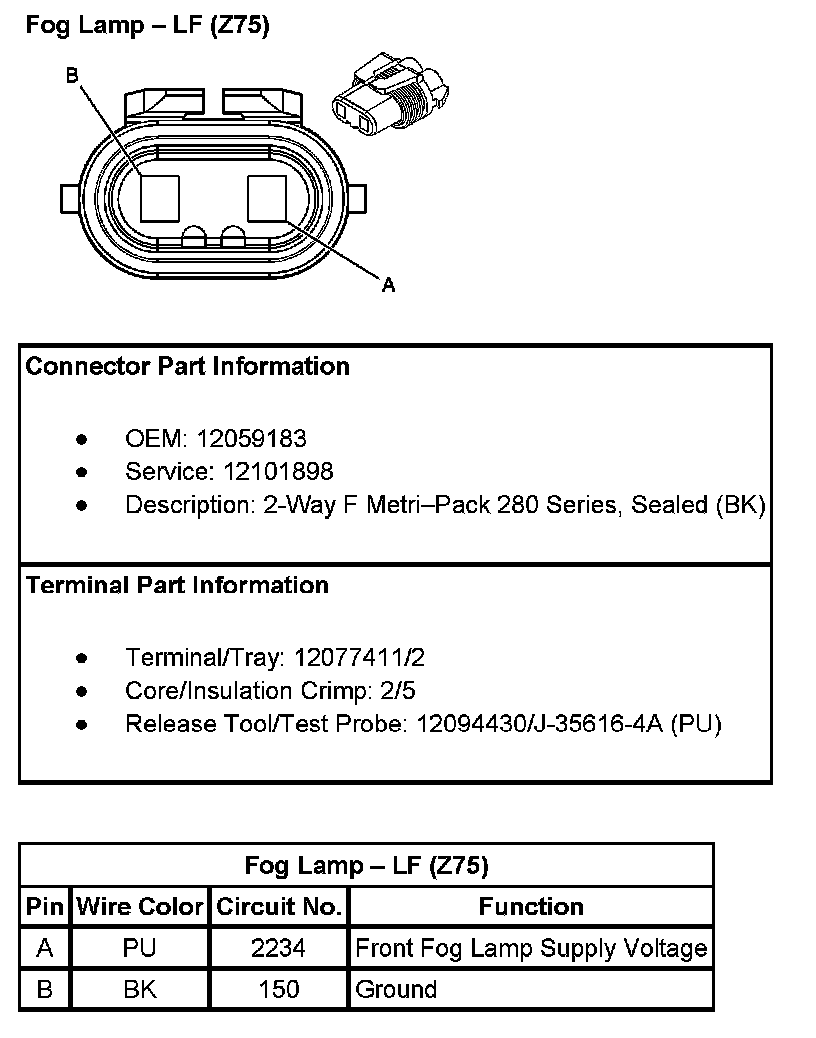

Fog Lamp - LF (With RPO Code Z75):

Fog Lamp - RF (With RPO Codes X88, Z88 And T96):

Fog Lamp - RF (With RPO Code Z75):
