Vent Hose Replacement (8.25 Inch Axle)

Vent Hose Replacement (8.25 Inch Axle)

Removal Procedure




1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the front differential carrier shield, if equipped.

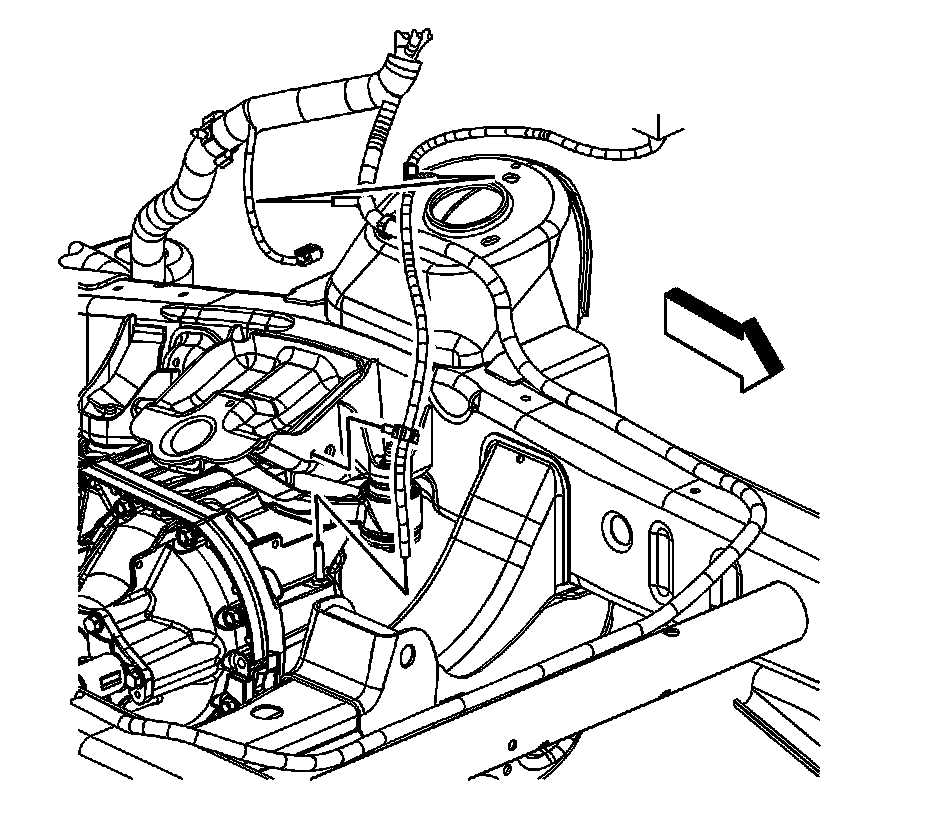

3. Remove the vent hose the retainers from the frame.
4. Remove the vent hose from the connector.
5. Lower the vehicle.

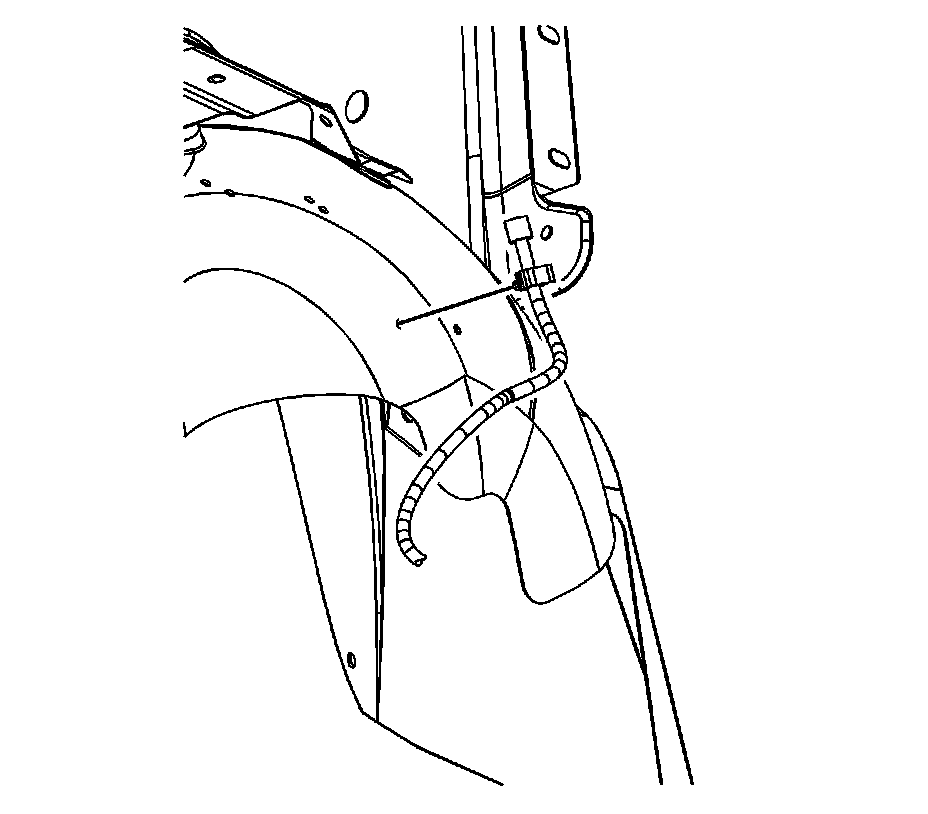

6. Remove the vent hose from the inner fender.

Installation Procedure




1. Install the vent hose to the inner fender.
2. Raise the vehicle.




3. Install the vent hose retainers to the frame.
4. Install the vent hose to the connector.
5. Install the front differential carrier shield, if equipped.
6. Lower the vehicle.
