Restraint Systems



Component Connector End Views

Inflatable Restraint Front End Sensor - Left





Inflatable Restraint Front End Sensor - Right





Inflatable Restraint I/P Module





Inflatable Restraint Passenger Presence System (PPS) Module





Inflatable Restraint Passenger Presence System (PPS) Sensor





Inflatable Restraint Roof Rail Module - Left (ASF)





Inflatable Restraint Roof Rail Module - Right (ASF)





Inflatable Restraint Seat Position Sensor - Left





Inflatable Restraint Seat Position Sensor - Right





Inflatable Restraint Sensing and Diagnostic Module (SDM)








Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)





Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)





Inflatable Restraint Steering Wheel Module X1





Inflatable Restraint Steering Wheel Module X2





Seat Belt Buckle - Driver





Seat Belt Buckle - Passenger X1





Seat Belt Buckle - Passenger X2

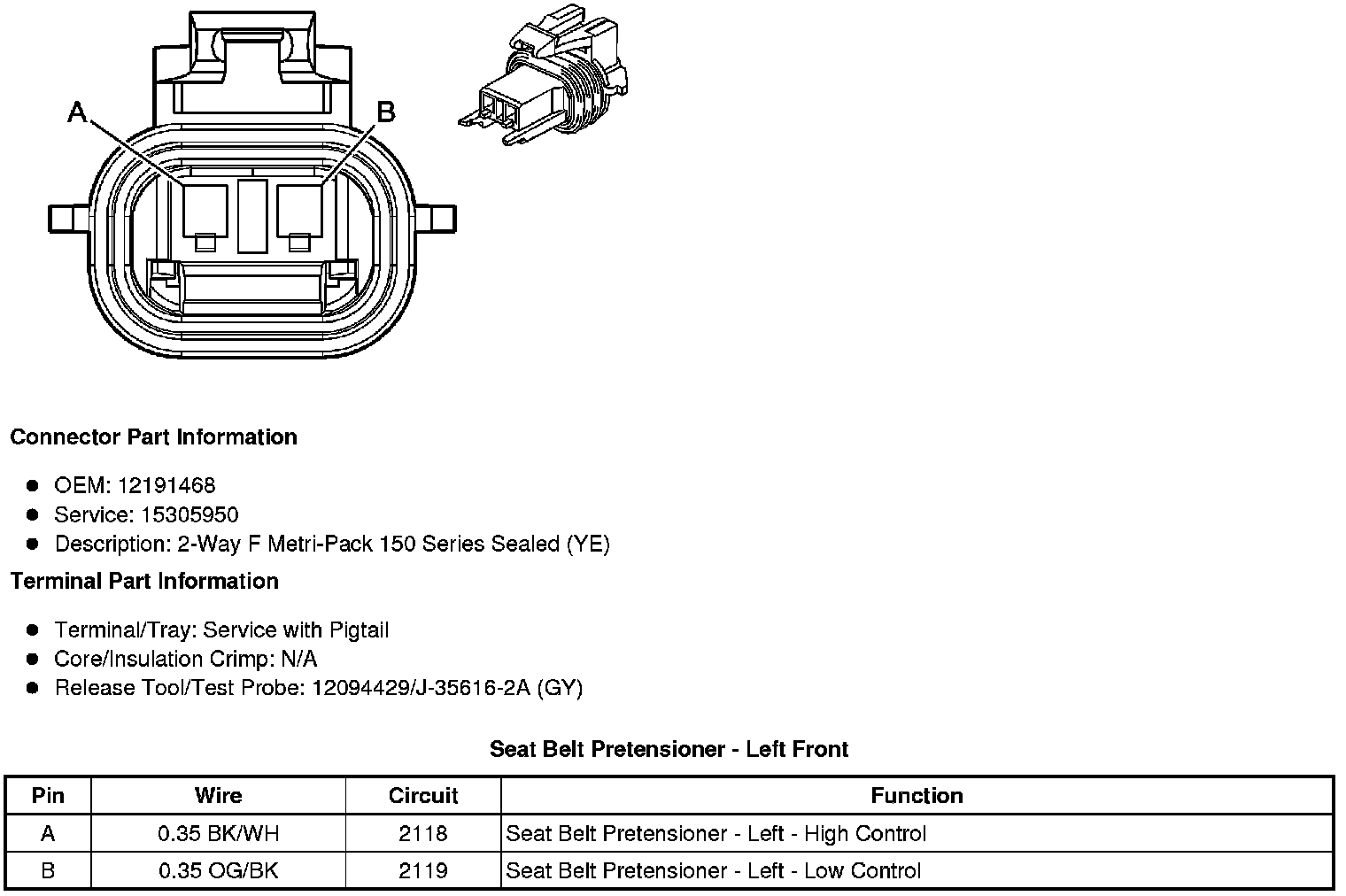

Seat Belt Pretensioner - Left Front

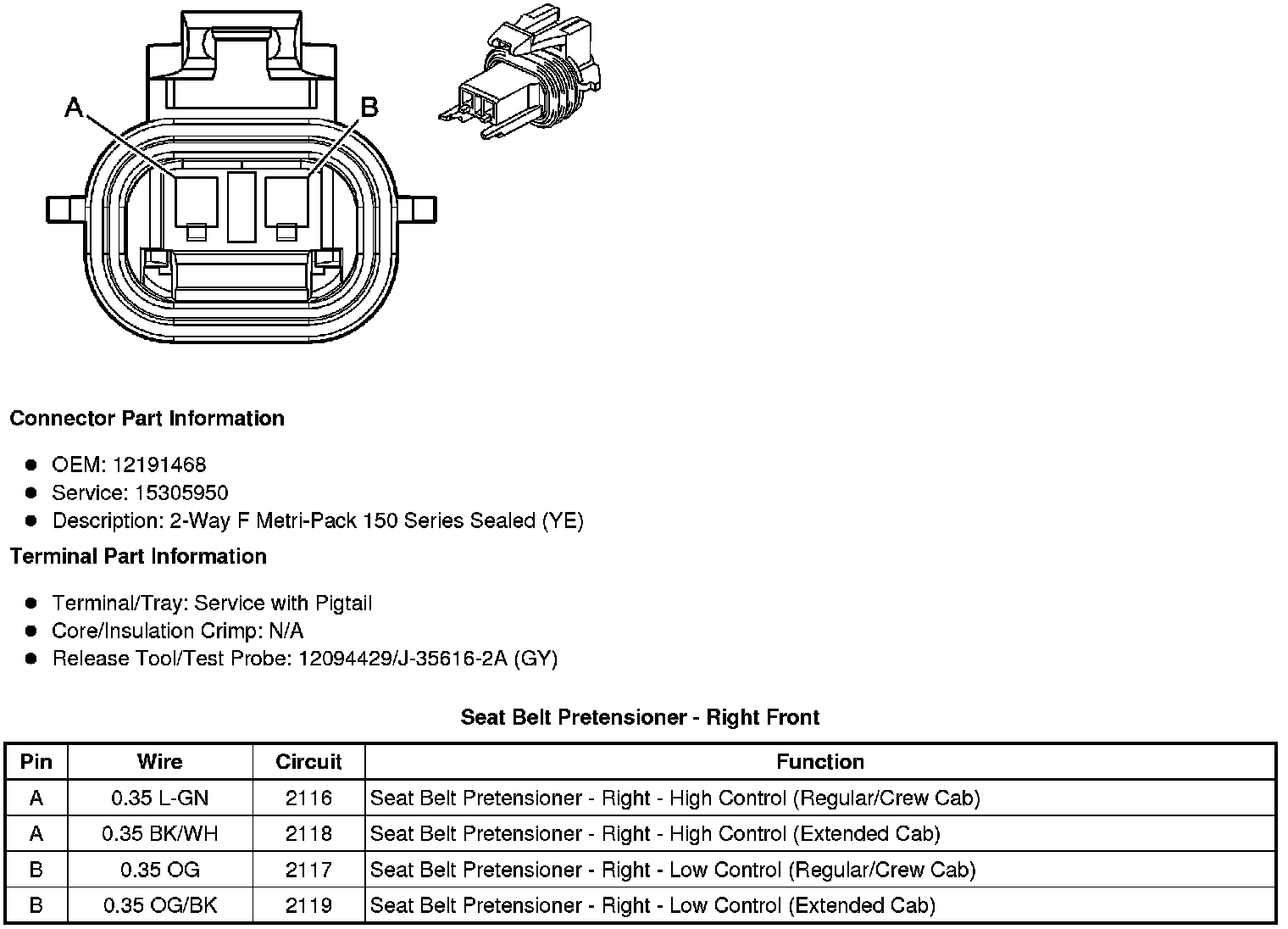

Seat Belt Pretensioner - Right Front
