Transmission and Drivetrain

Component Connector End Views

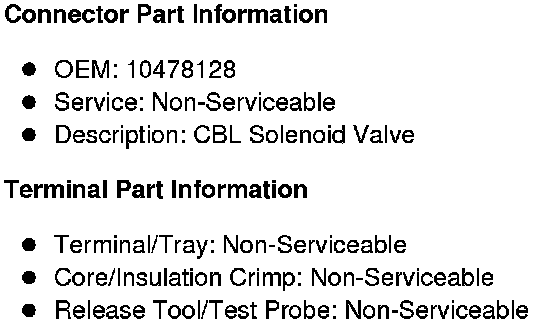

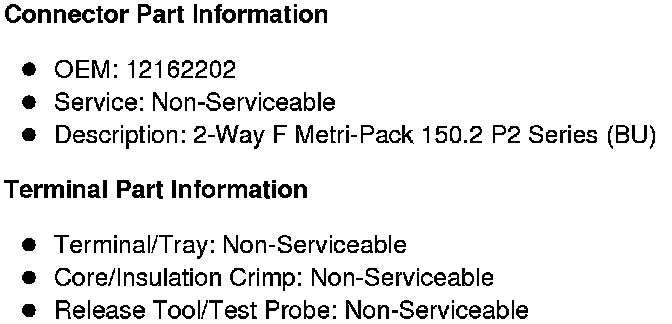

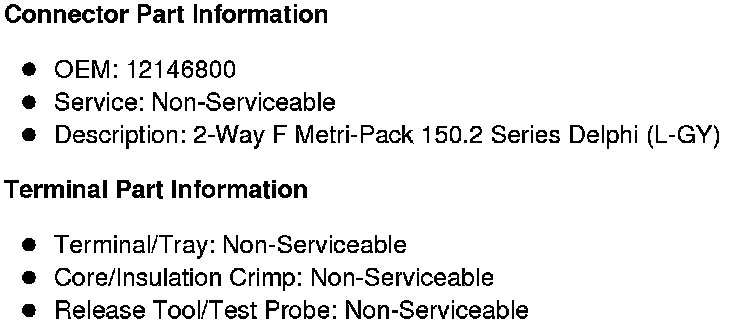

1-2 Shift Solenoid (SS) Valve (M30)

2-3 Shift Solenoid (SS) Valve (M30)

3-2 Shift Solenoid (SS) Valve Assembly (M30)

A/T Shift Lock Control Solenoid (M30)

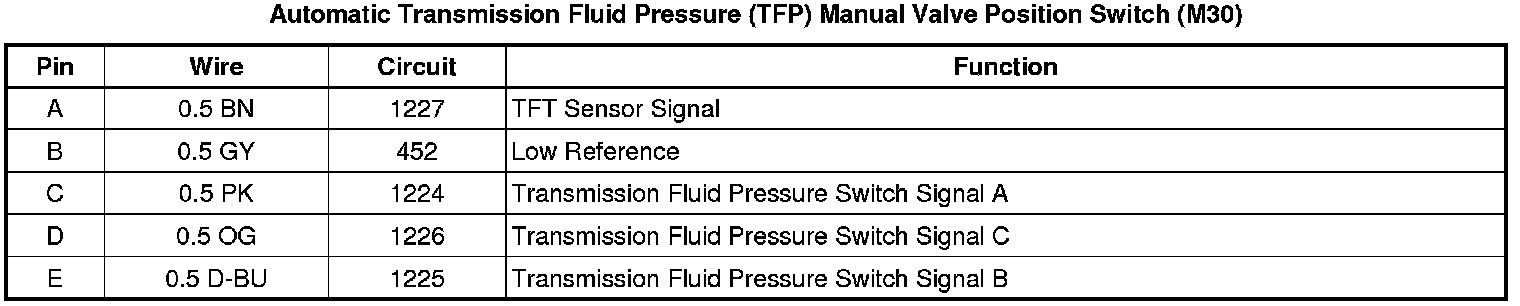

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (M30)

Clutch Pedal Position (CPP) Sensor (MA5)

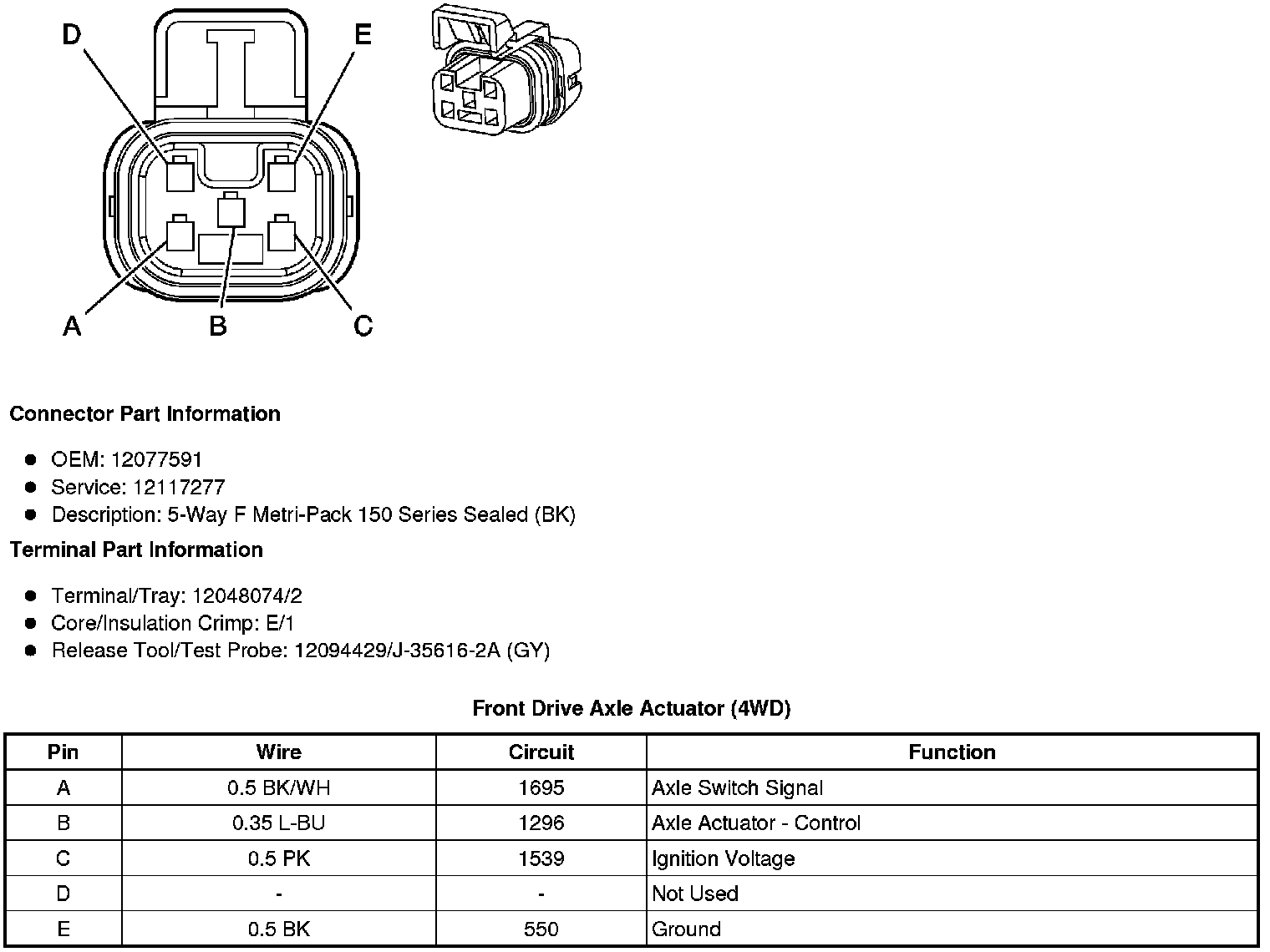

Front Drive Axle Actuator (4WD)

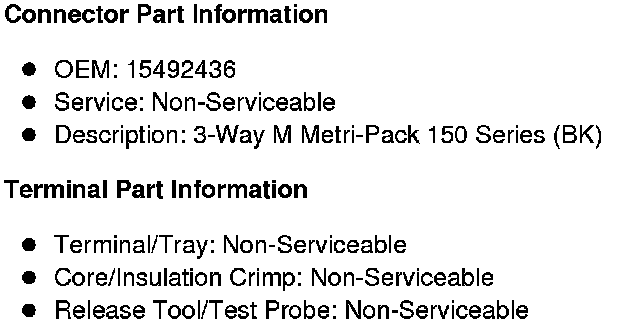

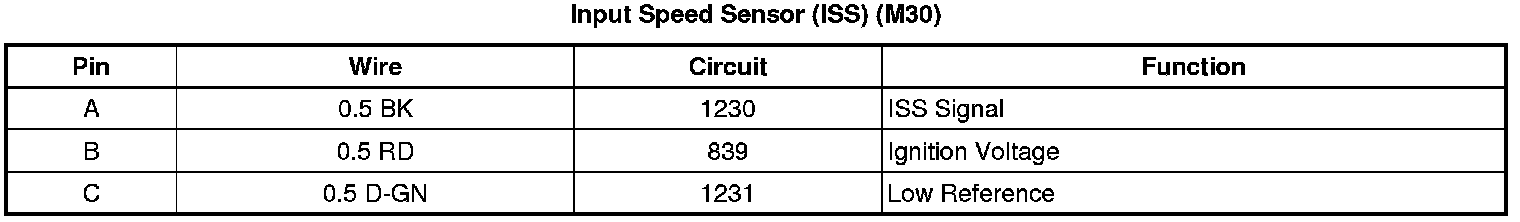

Input Speed Sensor (ISS) (M30)

Park Neutral Position (PNP) Switch (M30)

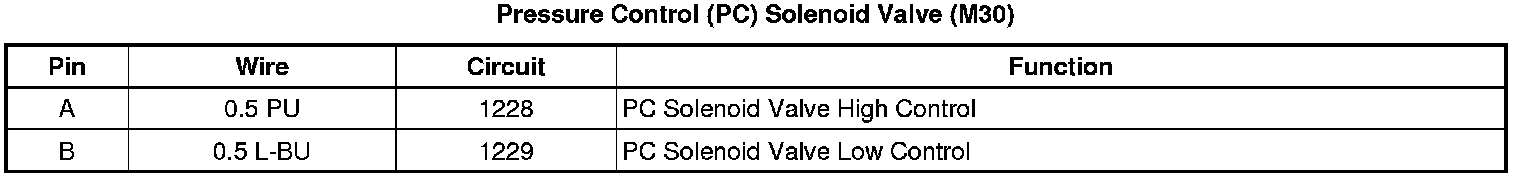

Pressure Control (PC) Solenoid Valve (M30)

TCC Brake/Cruise Release Switch

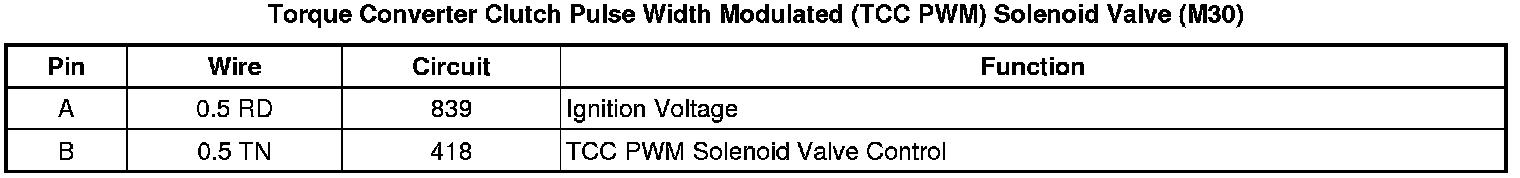

Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve (M30)

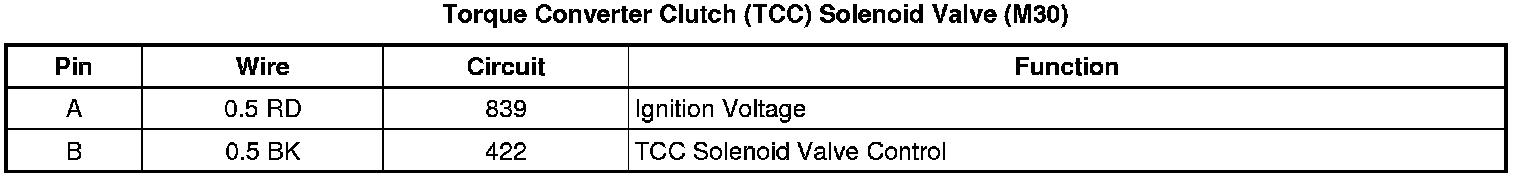

Torque Converter Clutch (TCC) Solenoid Valve (M30)

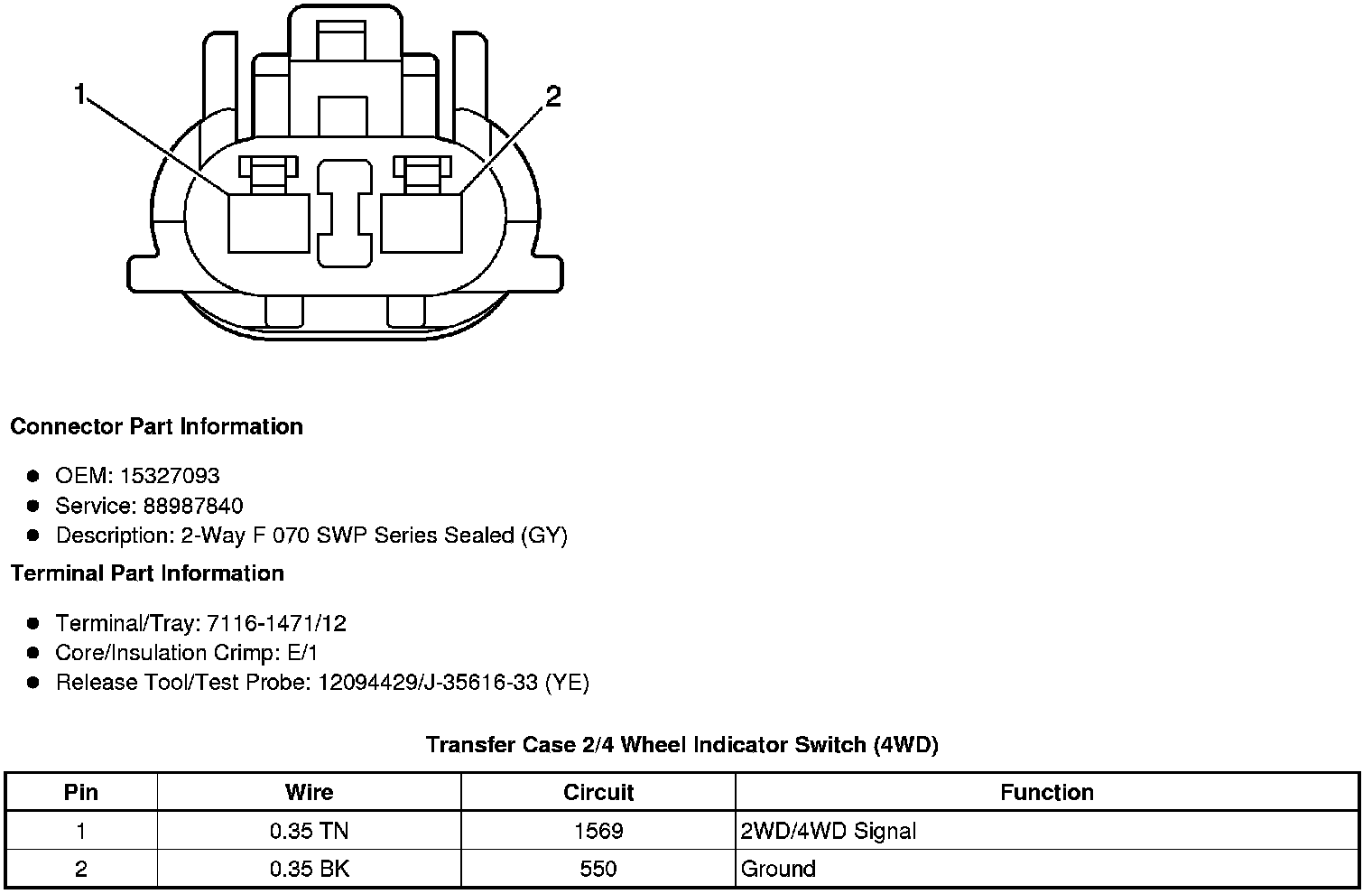

Transfer Case 2/4 Wheel Indicator Switch (4WD)

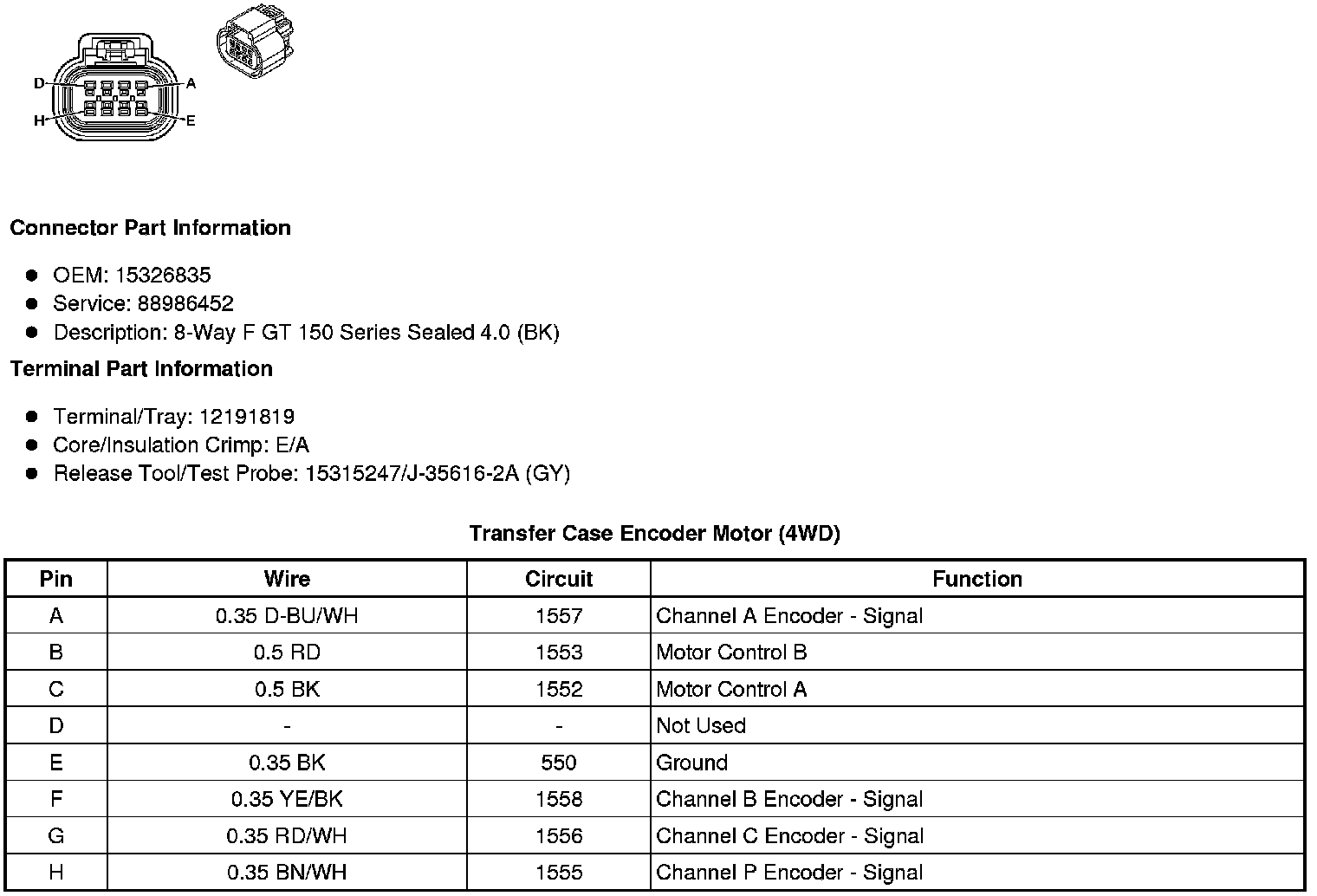

Transfer Case Encoder Motor (4WD)

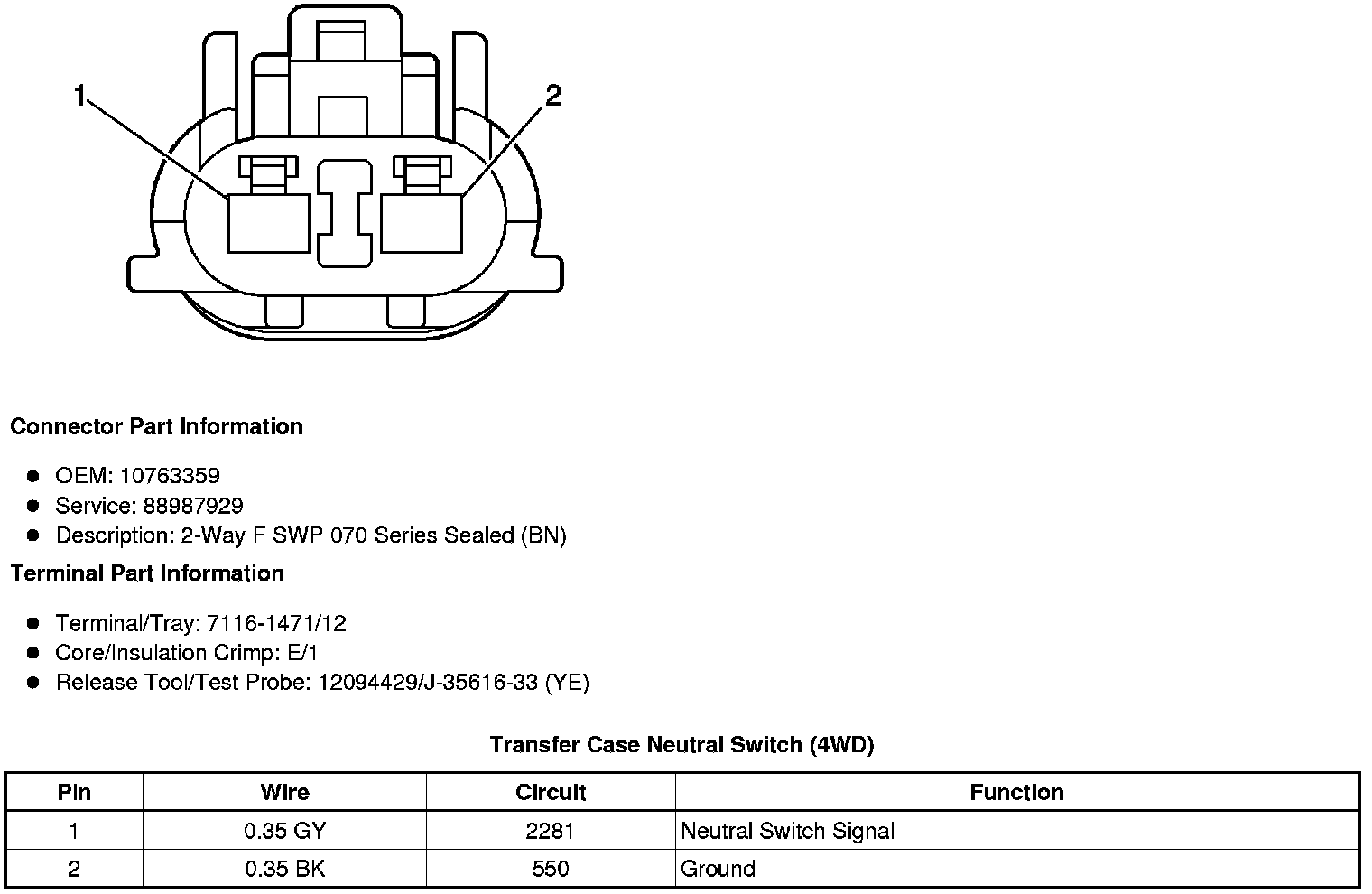

Transfer Case Neutral Switch (4WD)

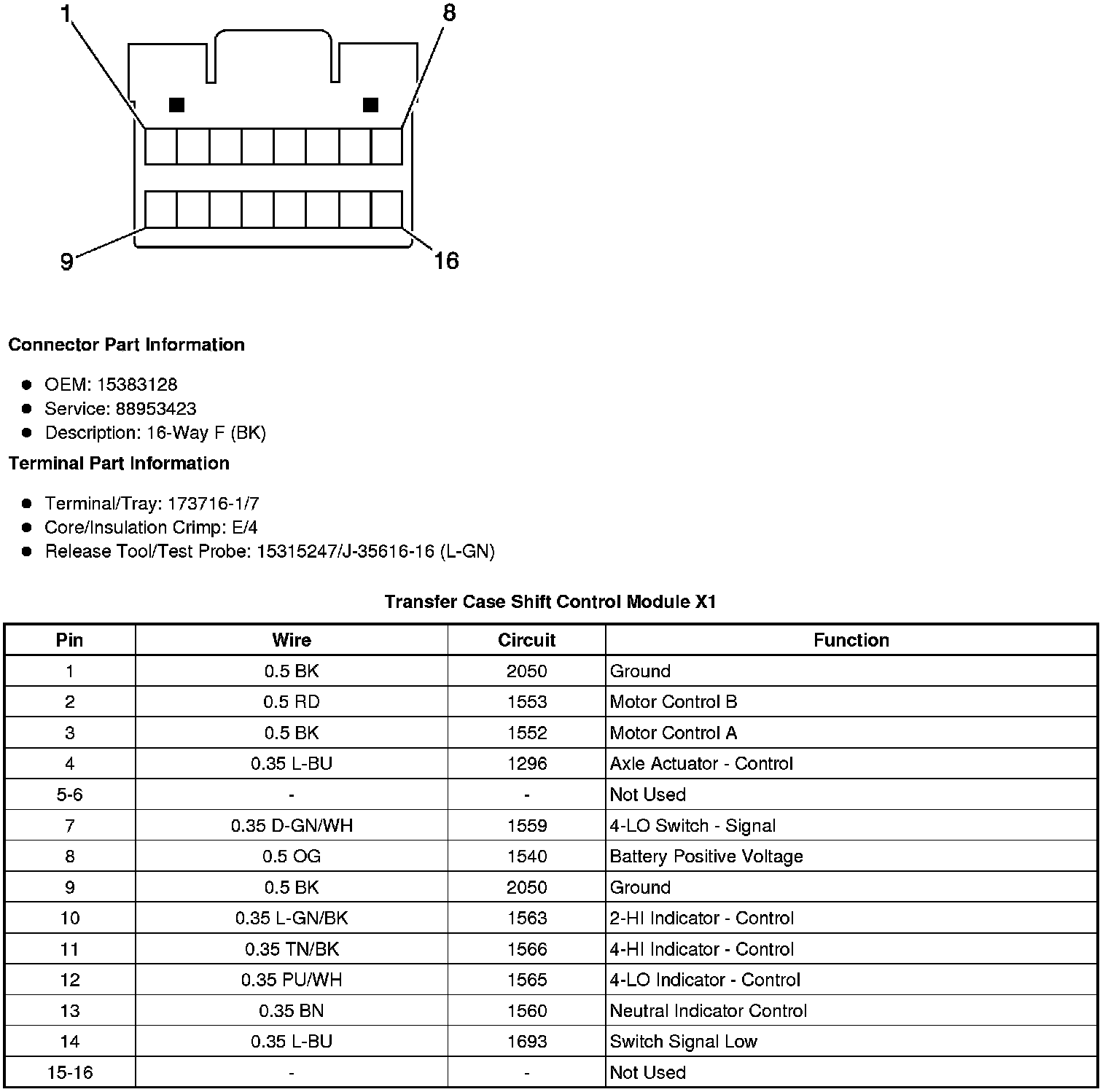

Transfer Case Shift Control Module X1

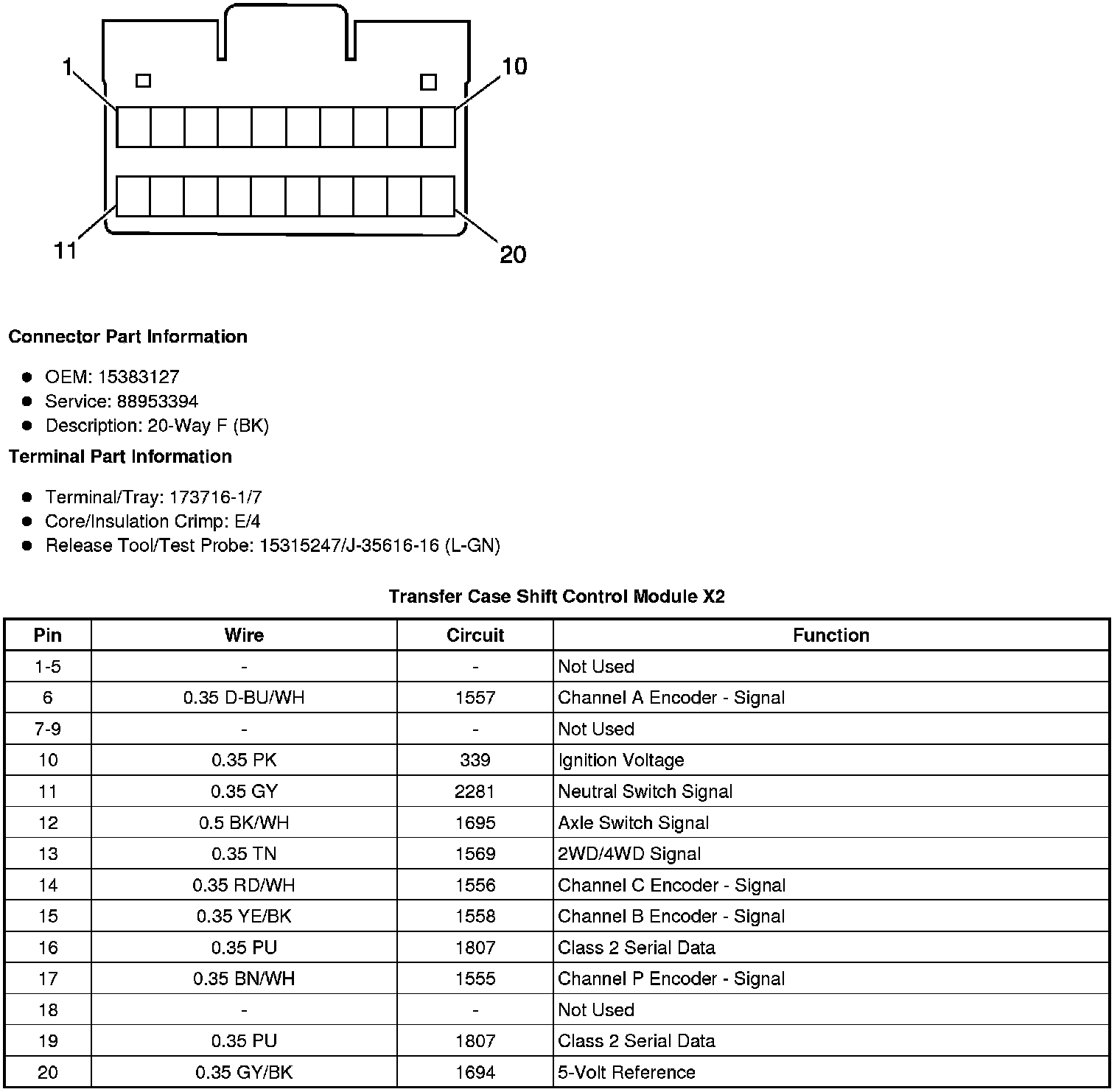

Transfer Case Shift Control Module X2

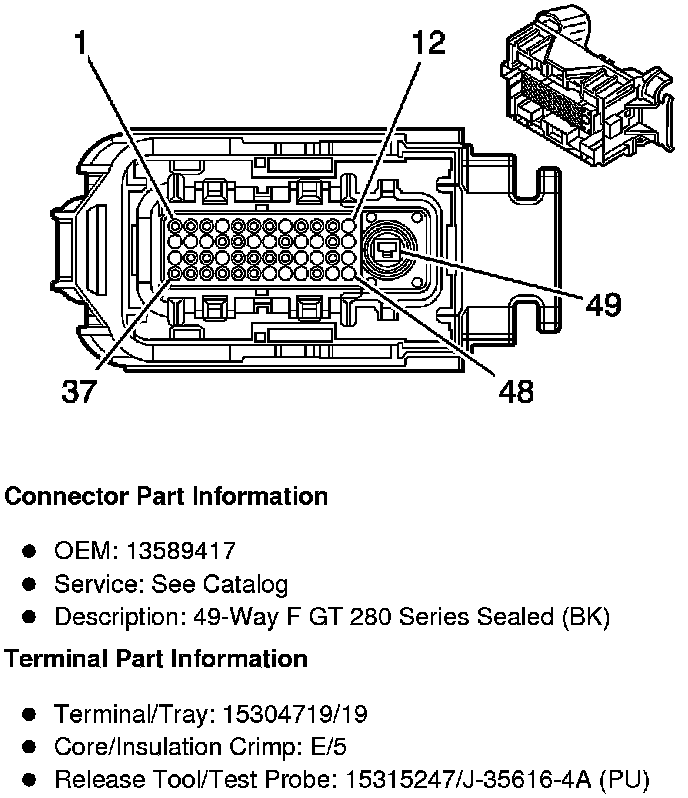

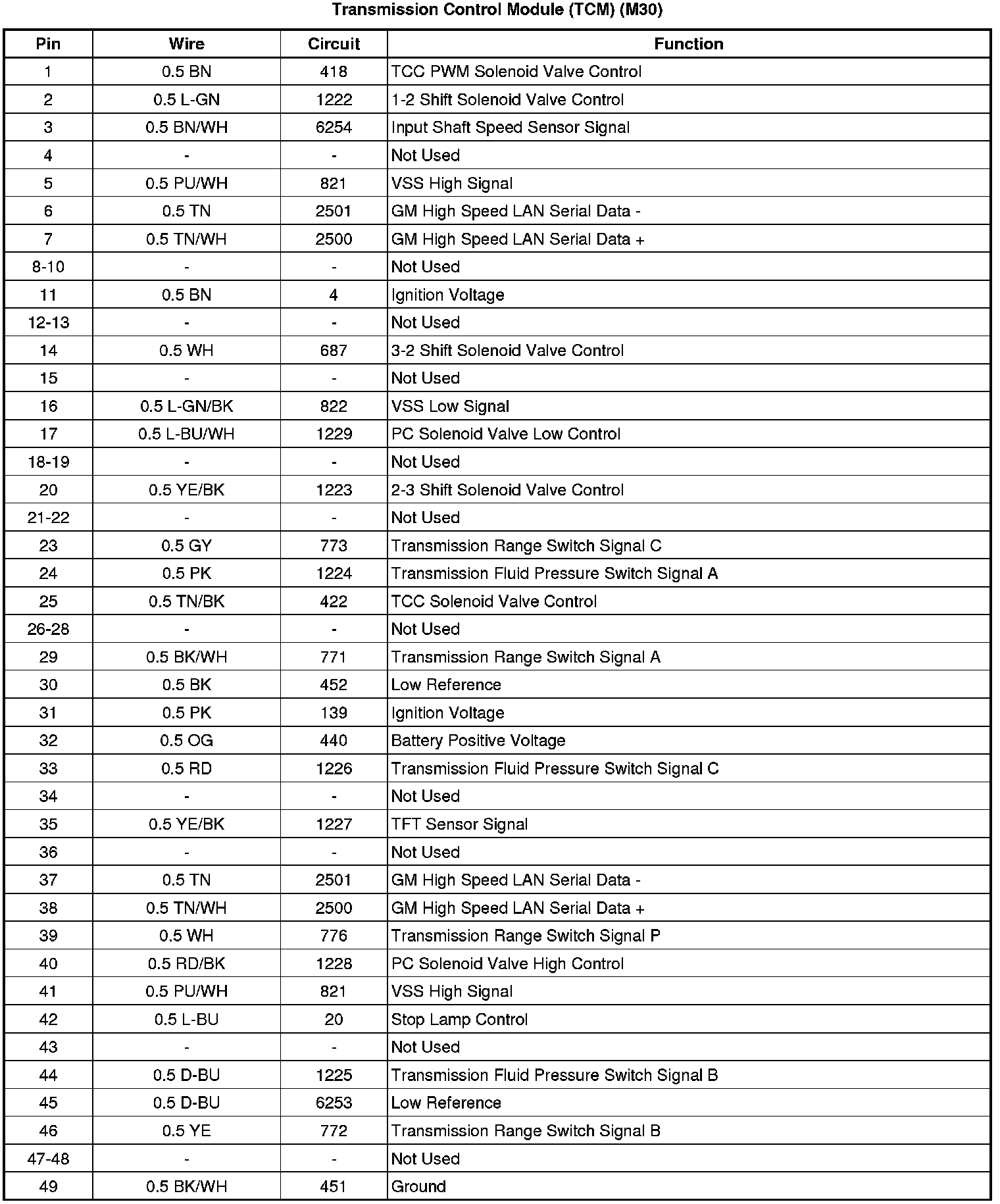

Transmission Control Module (TCM) (M30)
