X125
X125

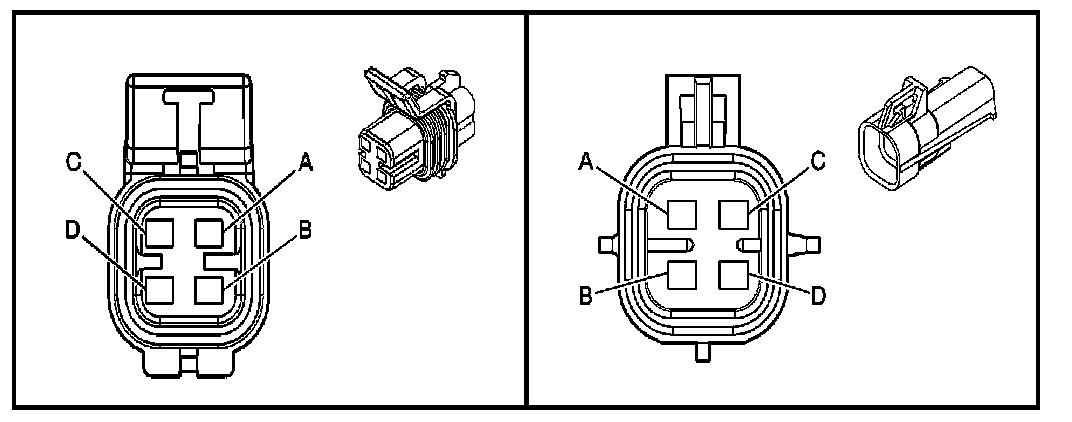

Inline Harness Connector End Views

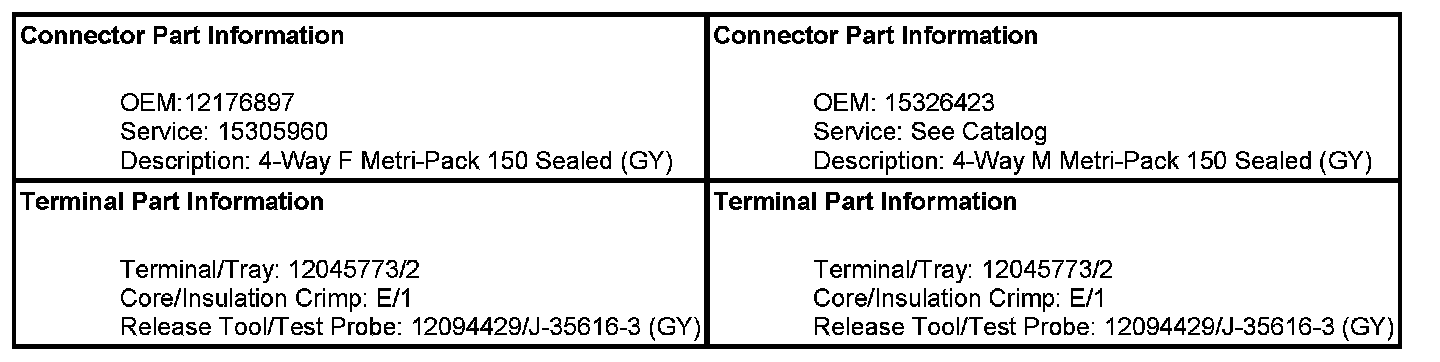

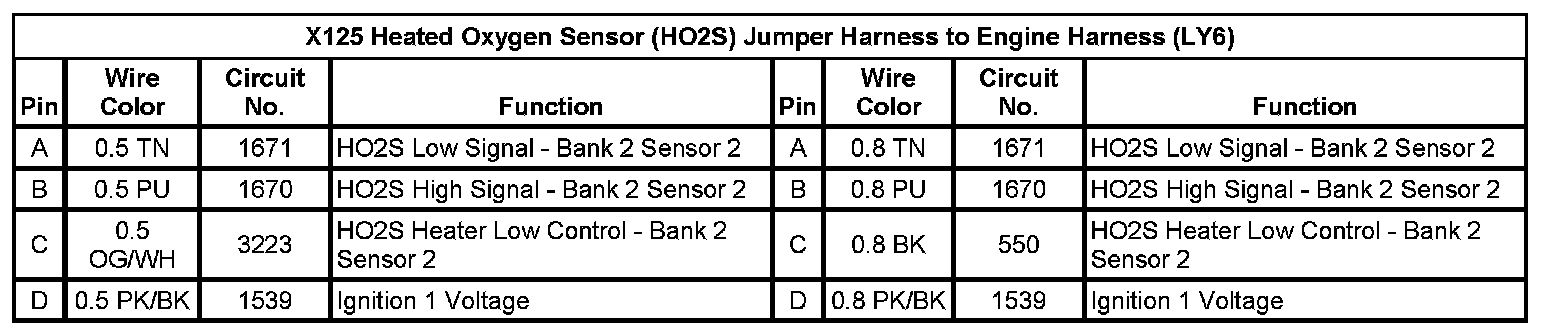

X125 Heated Oxygen Sensor (HO2S) Jumper Harness to Engine Harness (LY6)
