X175

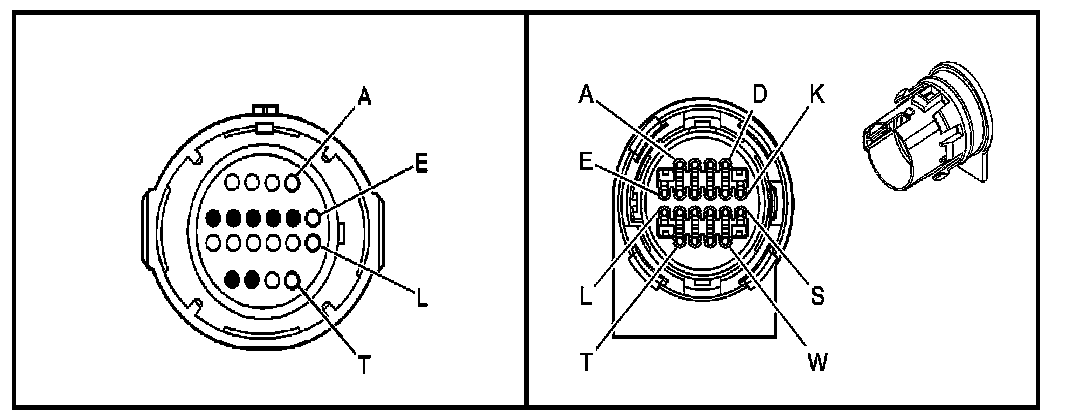

Inline Harness Connector End Views

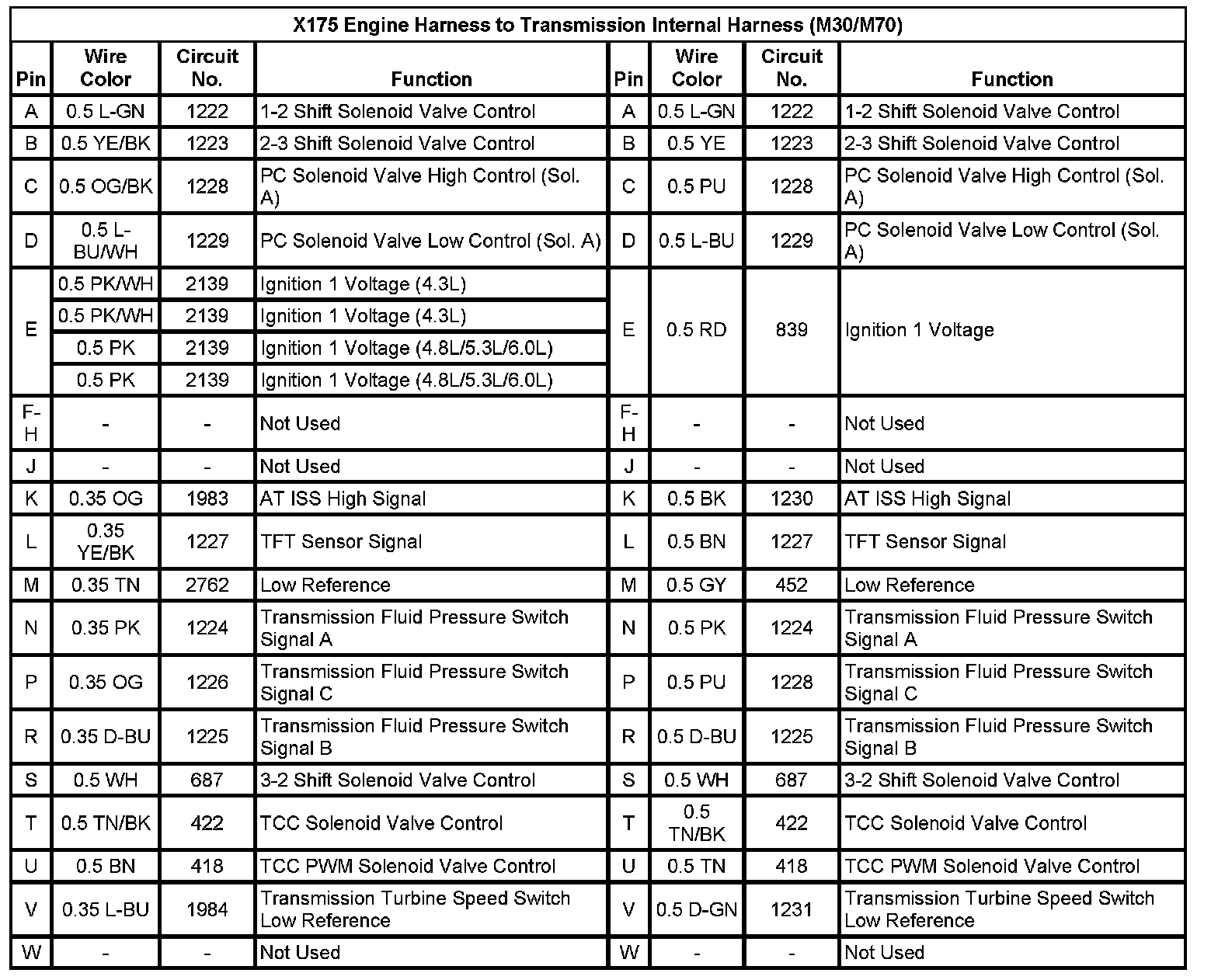

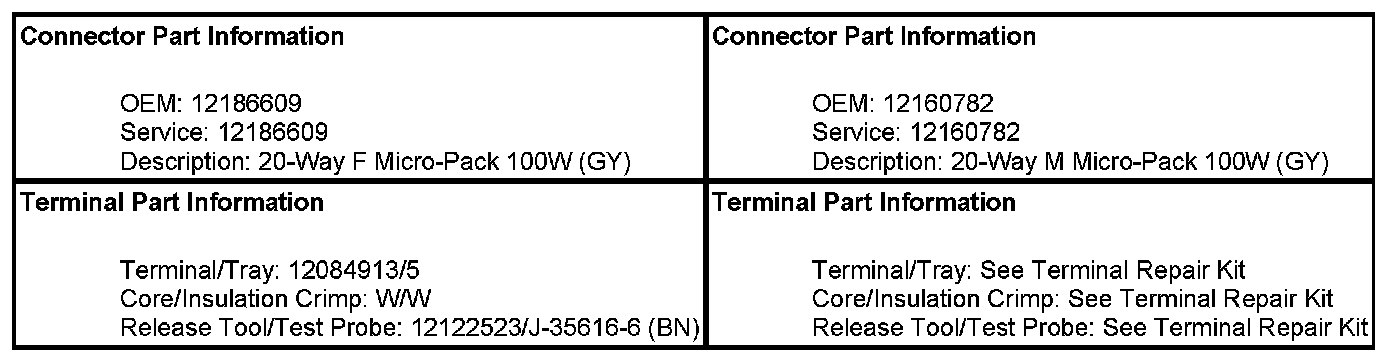

X175 Engine Harness to Transmission Internal Harness (M30/M70)

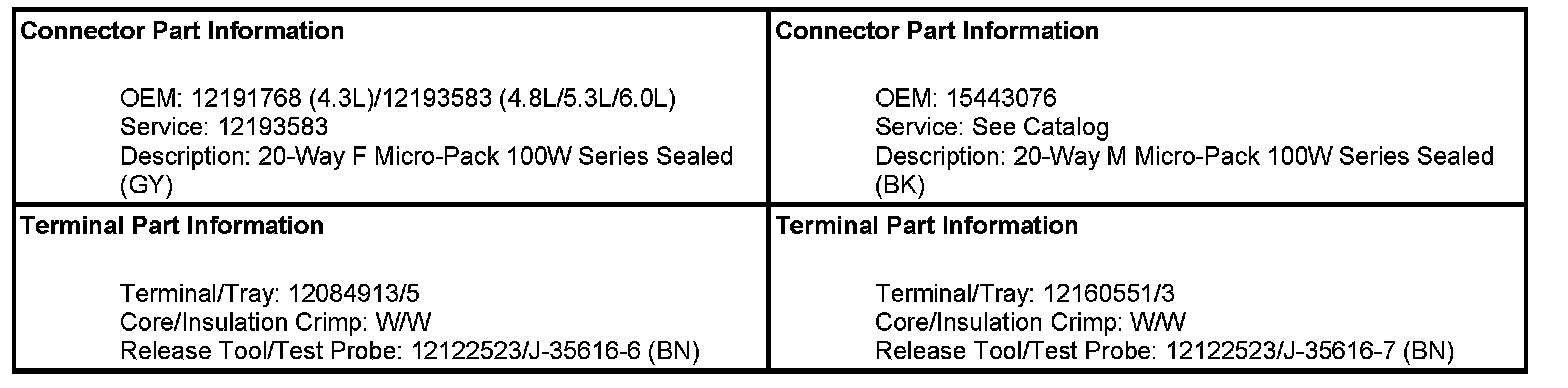

X175 Engine Chassis Harness to Transmission Internal Harness (MW7)
