6L50/6L80/6L90 - Automatic Transmission
6L50/6L80/6L90 - Automatic Transmission
Oil Pan

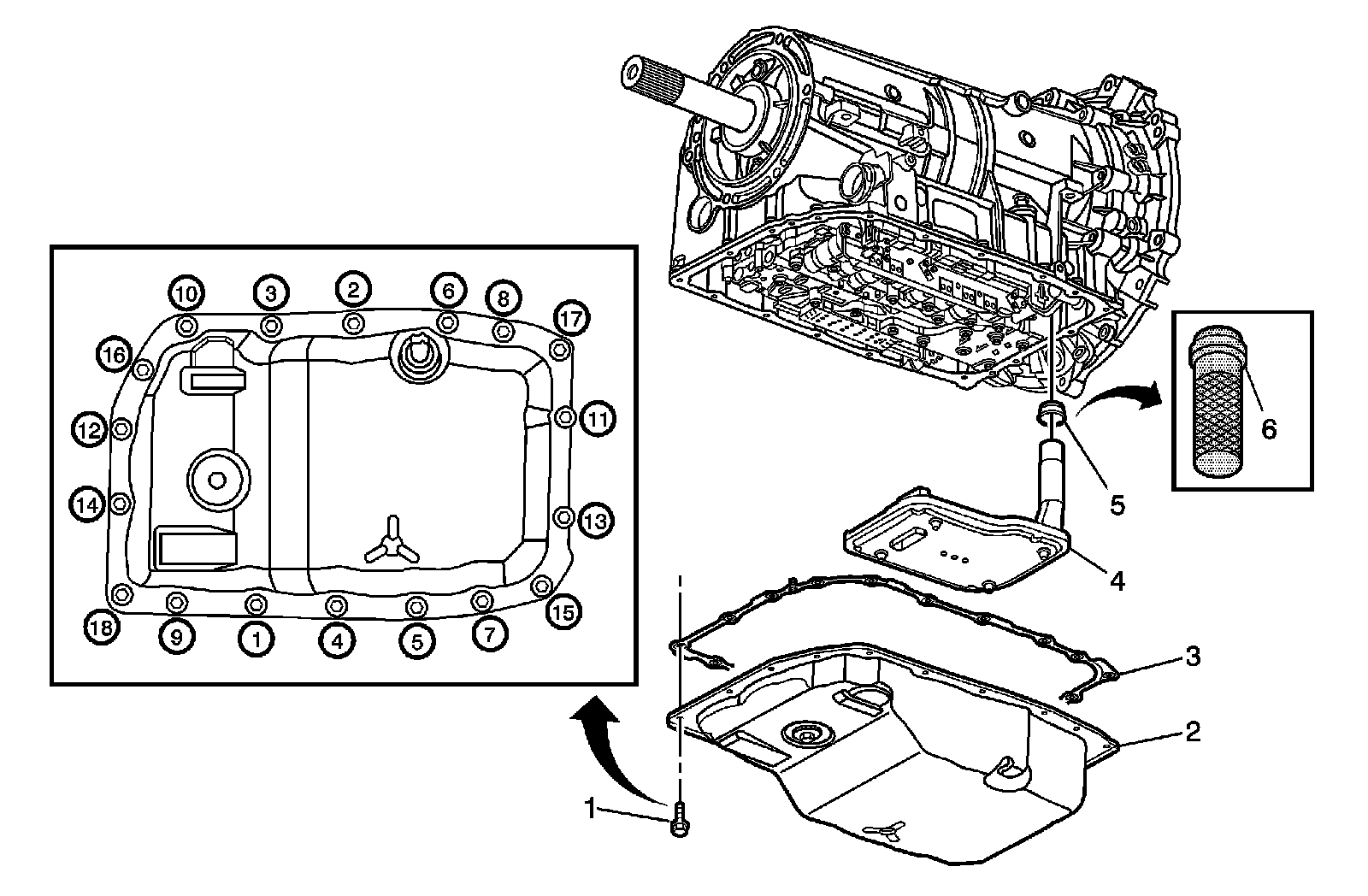

Tighten the bolts in sequence shown to
9 N.m (80 lb in).
