Tremec 5-Speed (TZ0) - Manual Transmission

Transmission Rear Mount Replacement

Removal Procedure

Notice: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.






1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .

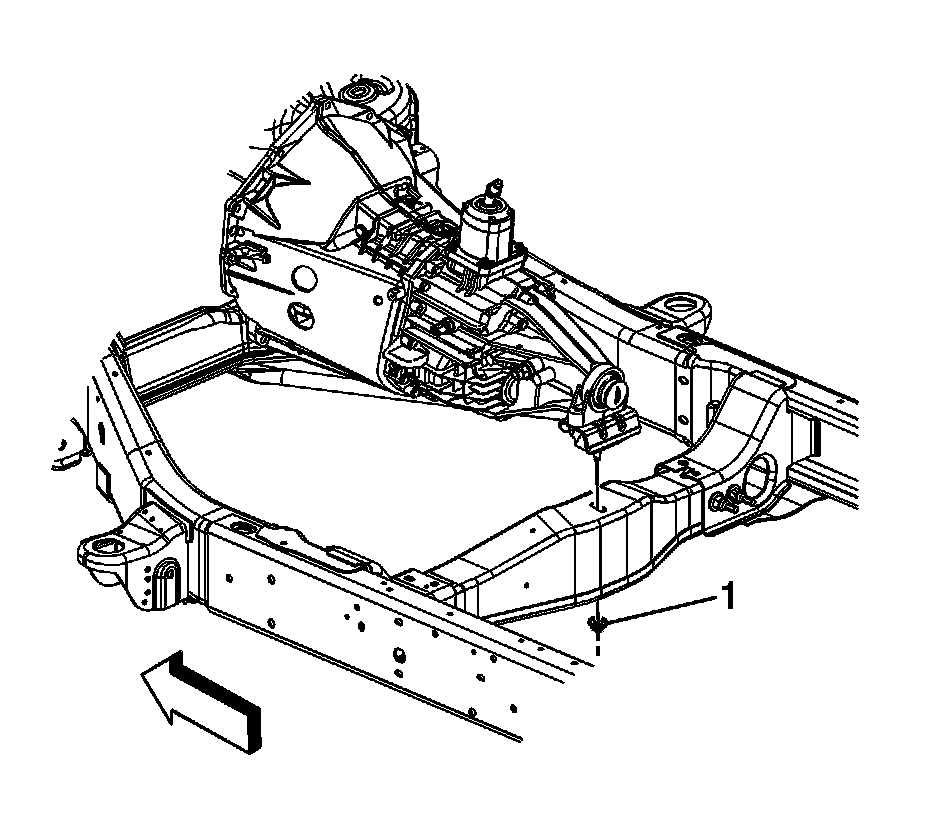

2. Remove the transmission mount to crossmember nut (1).

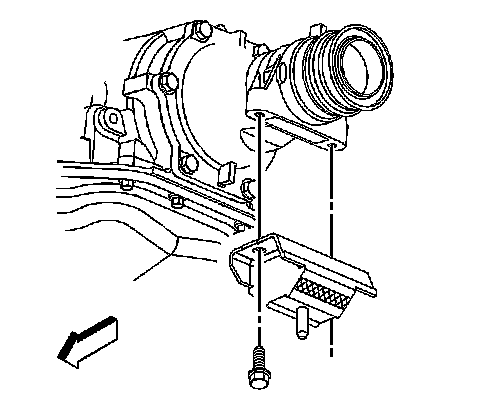

3. Remove the transmission mount to transmission bolts.
4. Raise the transmission just enough in order to permit removal of the mount using a suitable transmission jack.
5. Remove the transmission mount.



Installation Procedure





1. Position the transmission mount.
Notice: Refer to Fastener Notice .


2. Install the transmission mount to transmission bolts.

Tighten the bolts to 50 N.m (37 lb ft).

3. Lower the transmission and remove the transmission jack.




4. Install the transmission mount to crossmember nut (1).

Tighten the nut to 40 N.m (30 lb ft).

5. Lower the vehicle.
