Power Seat Motor

Component Connector End Views - Continued

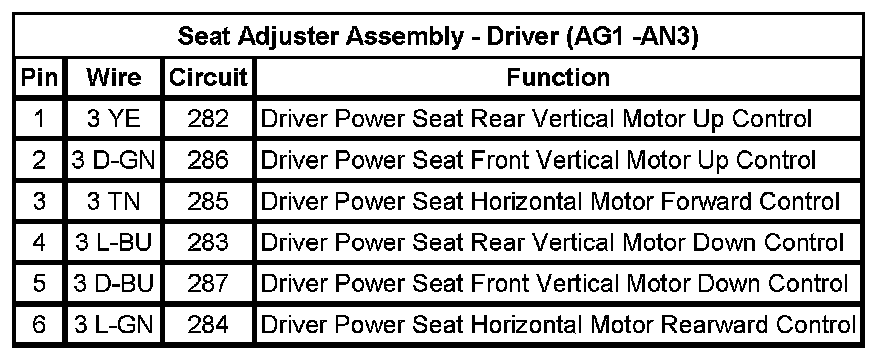

Seat Adjuster Assembly - Driver (AG1 -AN3)

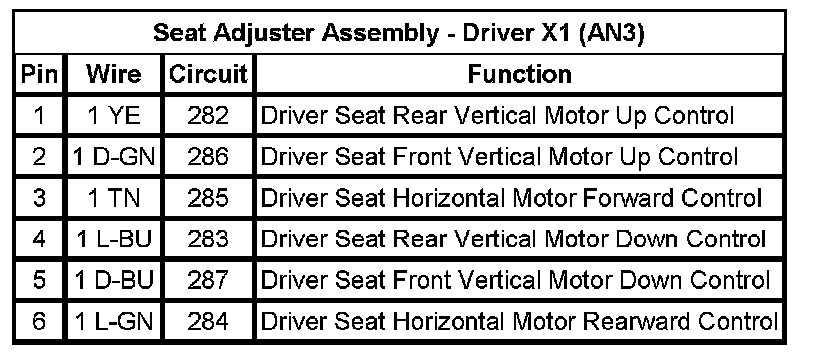

Seat Adjuster Assembly - Driver X1 (AN3)

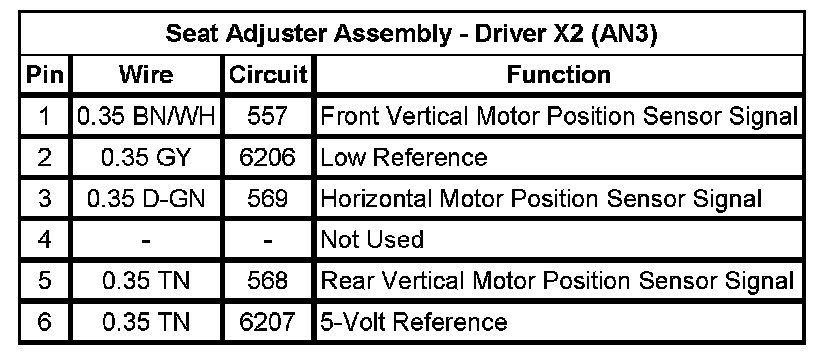

Seat Adjuster Assembly - Driver X2 (AN3)

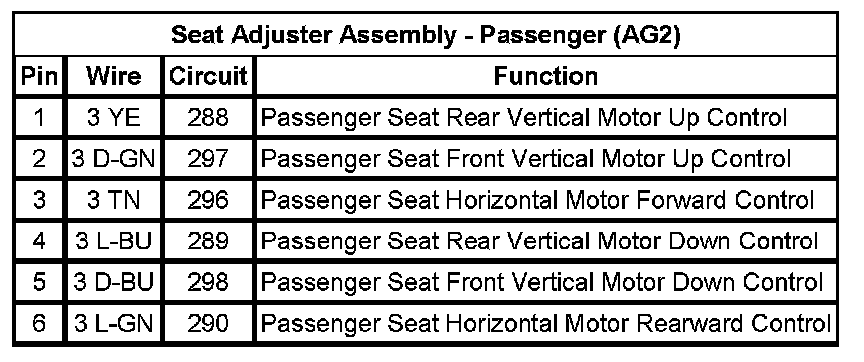

Seat Adjuster Assembly - Passenger (AG2)

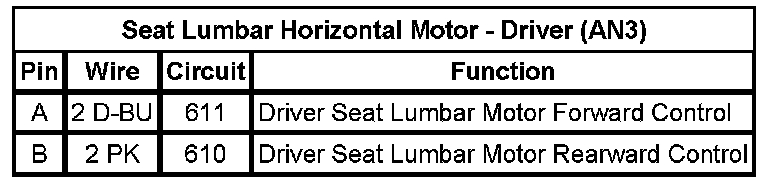

Seat Lumbar Horizontal Motor - Driver (AN3)

Telescoping Actuator C1:

Seat Lumbar Horizontal Motor - Passenger (AN3)

Telescoping Actuator C1:

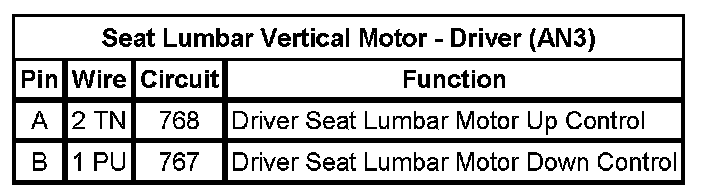

Seat Lumbar Vertical Motor - Driver (AN3)

Telescoping Actuator C1:

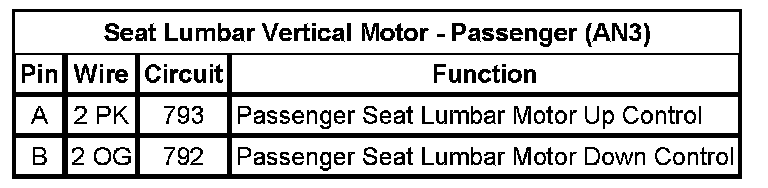

Seat Lumbar Vertical Motor - Passenger (AN3)

Telescoping Actuator C1:

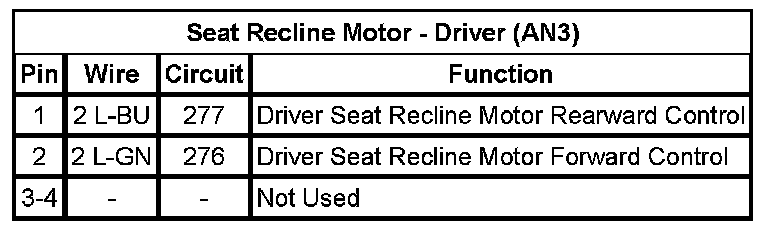

Seat Recline Motor - Driver (AN3)

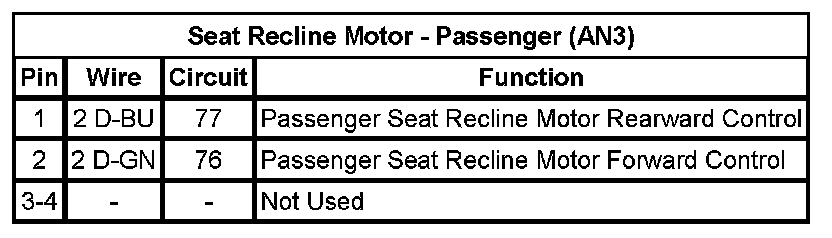

Seat Recline Motor - Passenger (AN3)
