Headliner Views

Harness Routing Views

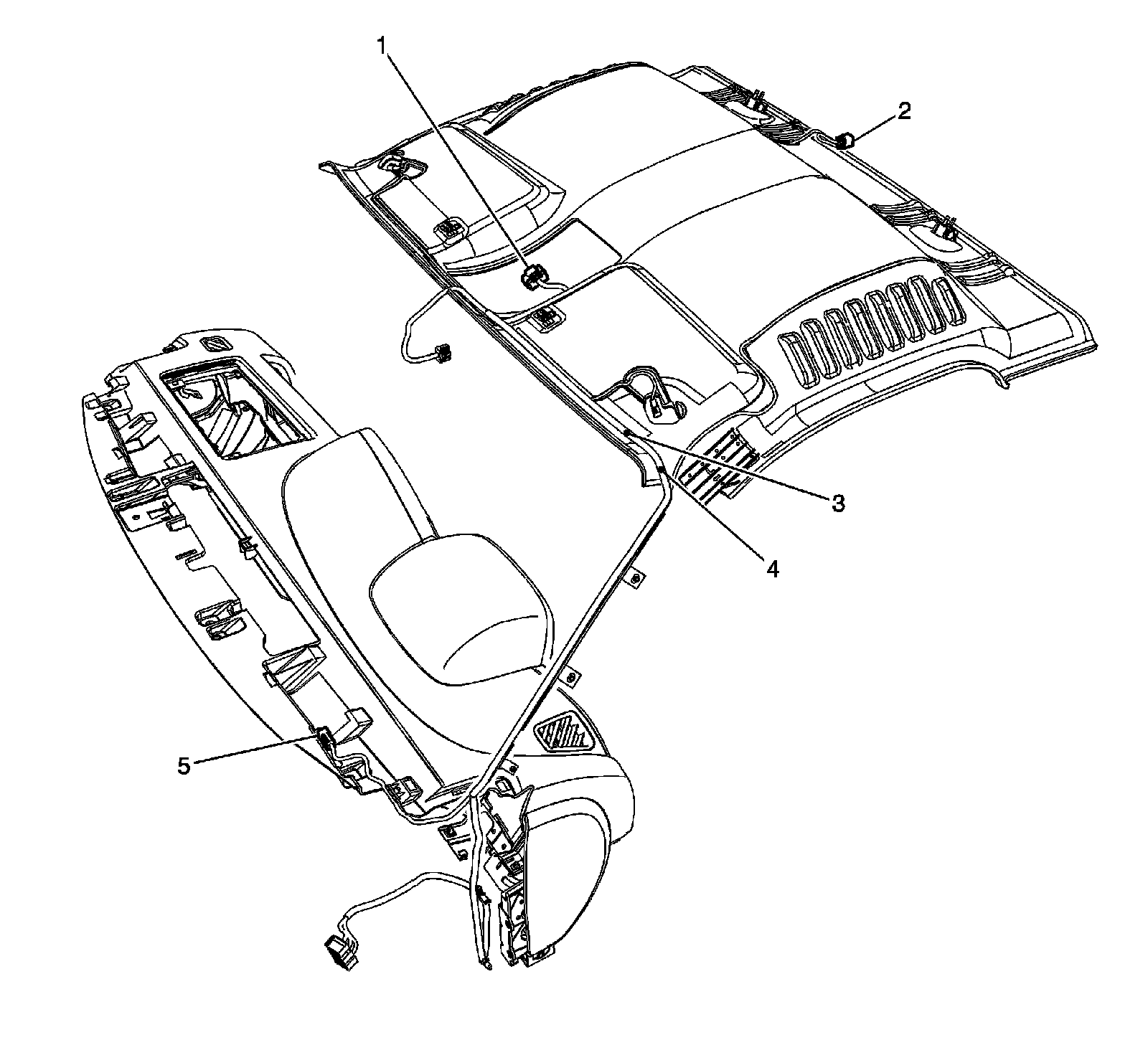

Headliner Harness Routing (Regular Cab)

1 - X304
2 - X318
3 - J327
4 - J328
5 - X203 (UE1)

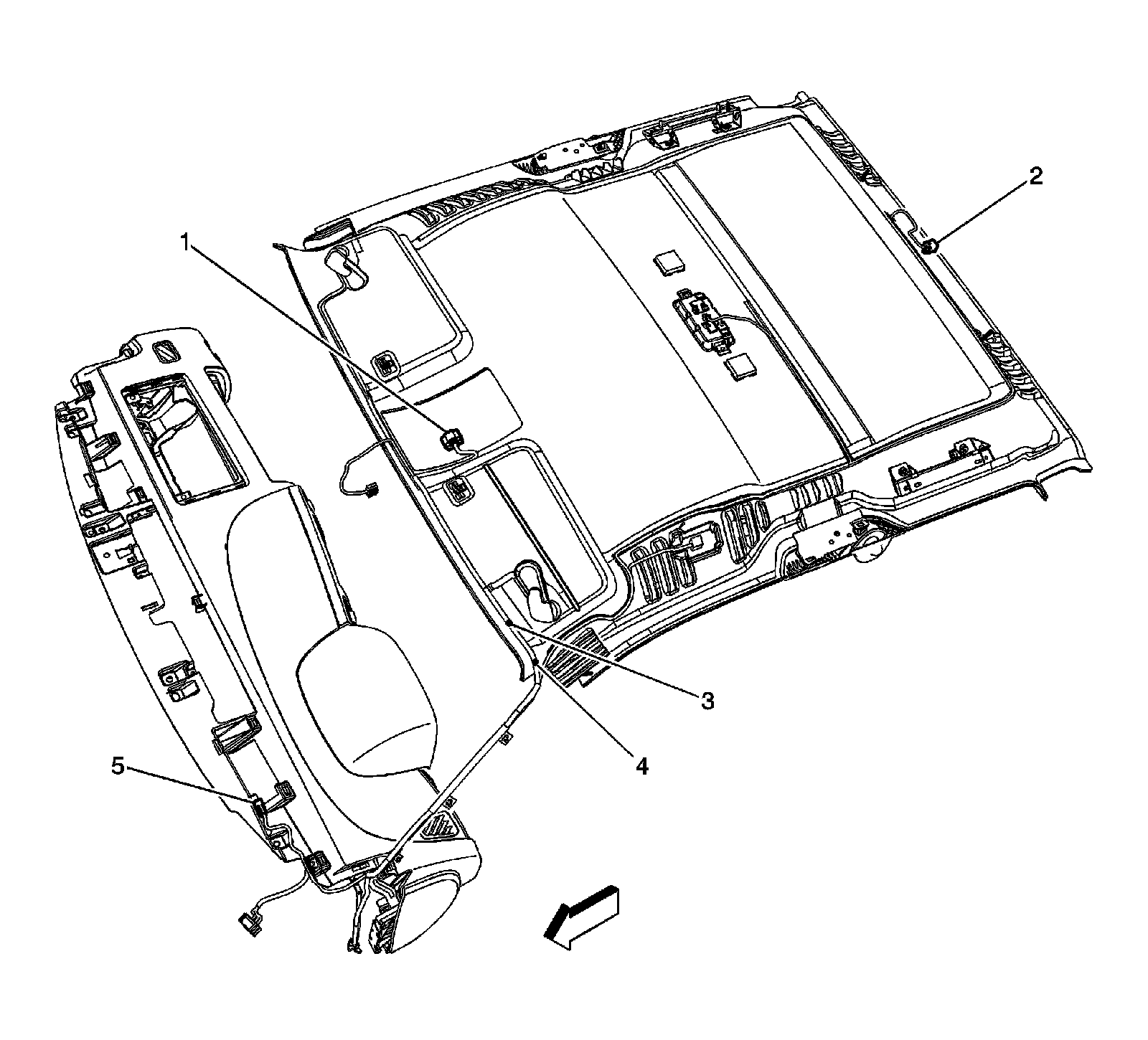

Headliner Harness Routing (Extended Cab)

1 - X304
2 - X318
3 - J327
4 - J328
5 - X203 (UE1/U3U/UVB)

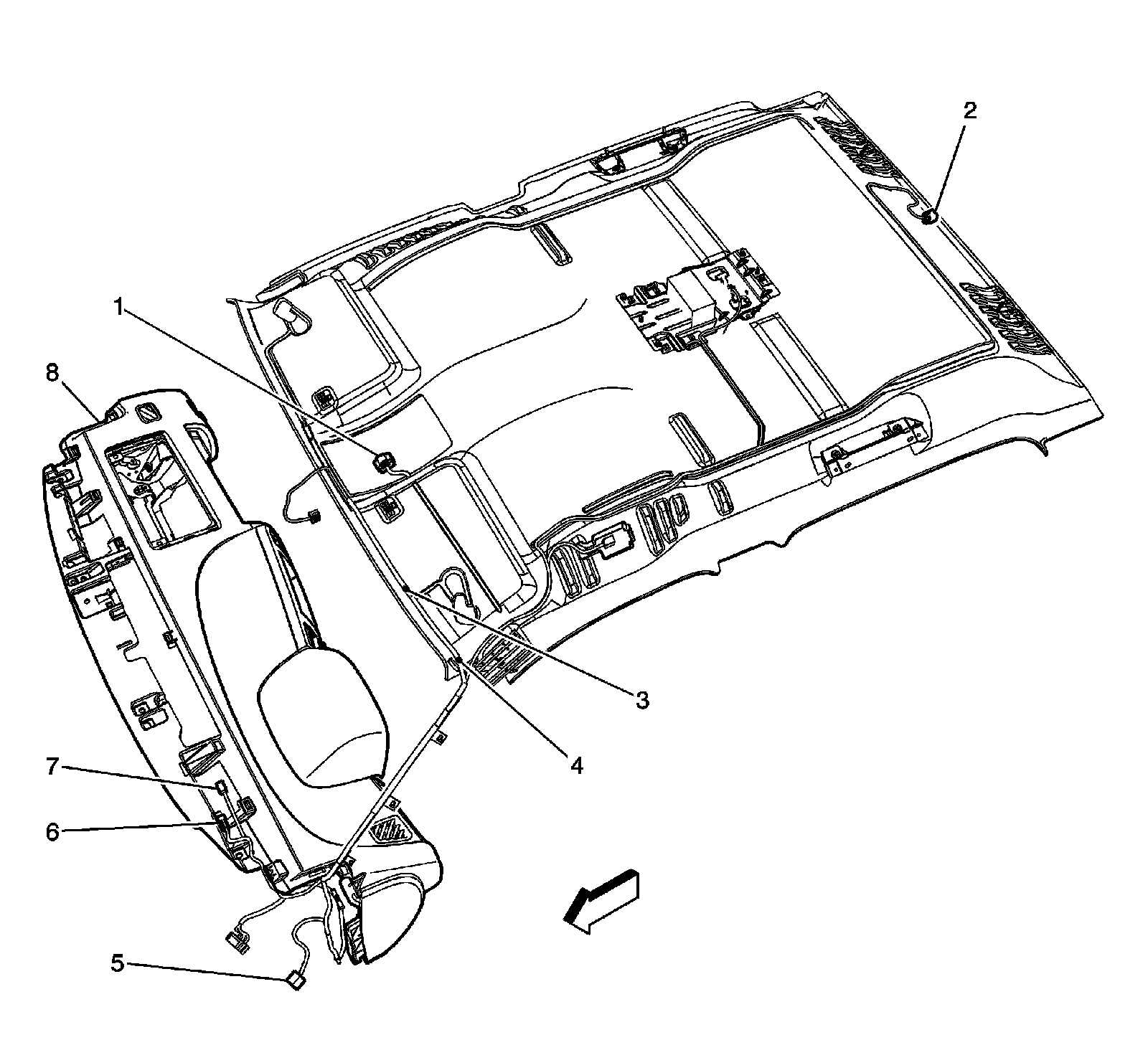

Headliner Harness Routing (Crew Cab)

1 - X304
2 - X318
3 - J327
4 - J328
5 - X321 (A48)
6 - X203 (UE1/U3U/UVB)
7 - X204 (U42)
8 - I/P Trim
