C0899

DTC C0899

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of this diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.

DTC Descriptors
DTC C0899 00
- Device Voltage Low - EBCM (w/o JL4)

DTC C0899 03
- Device Voltage Low - EBCM (JL4)

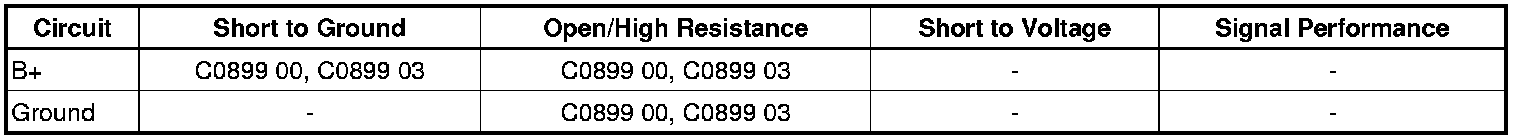

Diagnostic Fault Information

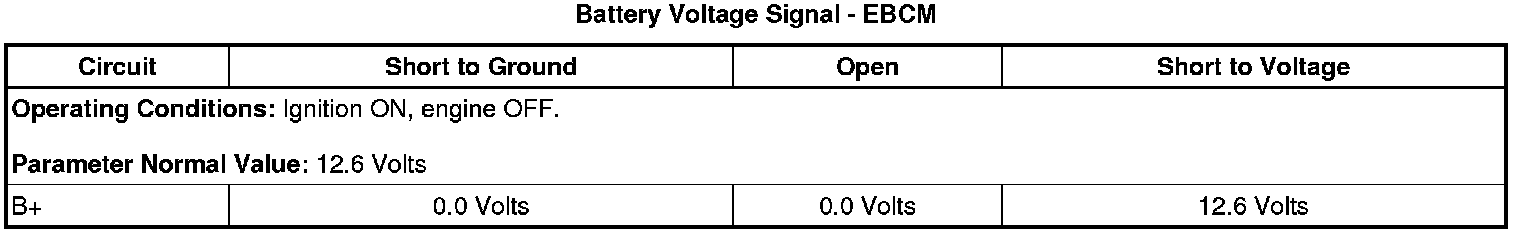

Typical Scan Tool Data





Circuit/System Description

The electronic brake control module (EBCM) monitors the battery positive (B+) voltage level available for system operation. A low voltage condition prevents the system from operating properly.

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

The ignition voltage available to the EBCM is less than 9 volts for 100 msec.

Action Taken When the DTC Sets

* The traction control system (TCS) and vehicle stability enhancement system (VSES) are disabled for the duration of the ignition cycle
* The vehicle dynamics caution (VDC) indicator turns ON.

Conditions for Clearing the DTC

* The condition for the DTC is no longer present.
* The EBCM automatically clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Diagnostic Aids

A low voltage DTC in multiple modules indicates a concern in the charging system.

Reference Information
Schematic Reference

* Antilock Brake System Schematics (Electrical Diagrams) for less than 3900 kg (8600 lb) GVW
* Antilock Brake System Schematics (Electrical Diagrams) for greater than 3900 kg (8600 lb) GVW

Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

* ABS Description and Operation (ABS Description and Operation) for less than 3900 kg (8600 lb) GVW
* ABS Description and Operation (ABS Description and Operation) for greater than 3900 kg (8600 lb) GVW

Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Verification

1. Engine running, accessories OFF, measure and record the voltage at the battery voltage at the battery terminals. The voltage should be between 12.6 and 15.0 V.

• If not within the specified range, refer to Charging System Test (Charging System Test).

2. Observe the scan tool EBCM Battery Voltage Signal parameter. The reading should be between 12.6 and 15.0 Volts.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the EBCM.
2. Ignition OFF and scan tool disconnected, open and close the driver door, and wait 1 minute. Test for less than 5 Ohms between the ground circuit terminals listed below and ground.

* Terminal 11 (JL4)
* Terminal 38 (w/o JL4)

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Verify that a test lamp illuminates between the B+ circuit terminals listed below and ground.

* Terminal 1 (JL4)
* Terminal 25 (w/o JL4)

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. If all circuits test normal, replace the EBCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

Control Module References (Programming and Relearning) for EBCM replacement, setup, and programming.
