Brake Pedal Assy: Service and Repair

Brake Pedal Assembly Replacement

Removal Procedure

1. Remove the instrument carrier. Refer to Instrument Carrier Replacement (Equinox) Instrument Carrier ReplacementInstrument Carrier Replacement (Terrain) Instrument Carrier Replacement.

2. Remove the accelerator pedal position sensor. Refer to Accelerator Pedal with Position Sensor Assembly Replacement Service and Repair or Accelerator Pedal with Position Sensor Assembly Replacement Service and Repair.

3. Remove the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .





4. Remove the brake booster pushrod nut (1).

5. Disconnect the brake booster pushrod from the brake pedal pivot pin.





6. Remove the brake pedal bracket bolt (1).

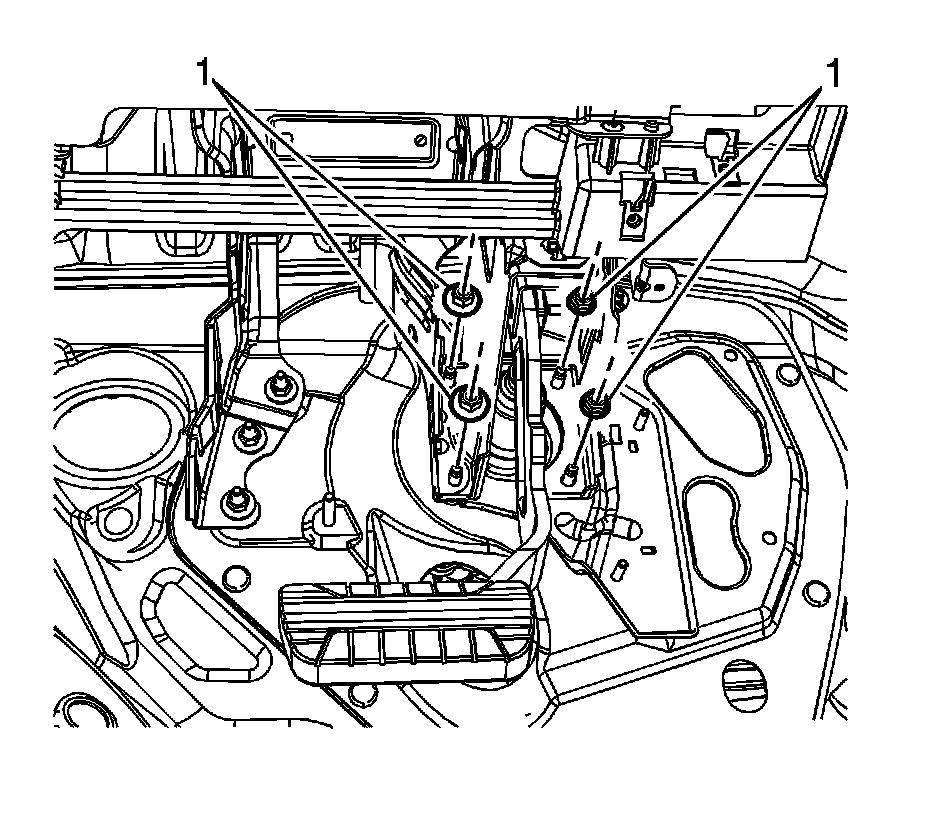

7. Remove the brake pedal bracket nuts (1) and the brake pedal assembly.

Installation Procedure





1. Install the brake pedal assembly to the dash panel reinforcement plate.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the brake pedal bracket nuts (1) and tighten to 25 Nm (18 lb ft).





3. Install the brake pedal bracket bolt (1) and tighten to 25 Nm (18 lb ft).





4. Connect the brake booster pushrod from the brake pedal pivot pin.

5. Install the brake booster pushrod nut (1) and tighten to 25 Nm (18 lb ft).

6. Install the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .

7. Install the accelerator pedal position sensor. Refer to Accelerator Pedal with Position Sensor Assembly Replacement Service and Repair or Accelerator Pedal with Position Sensor Assembly Replacement Service and Repair.

8. Install the instrument carrier. Refer to Instrument Carrier Replacement (Equinox) Instrument Carrier ReplacementInstrument Carrier Replacement (Terrain) Instrument Carrier Replacement.
