Oil Level Indicator and Tube Installation

Oil Level Indicator and Tube Installation

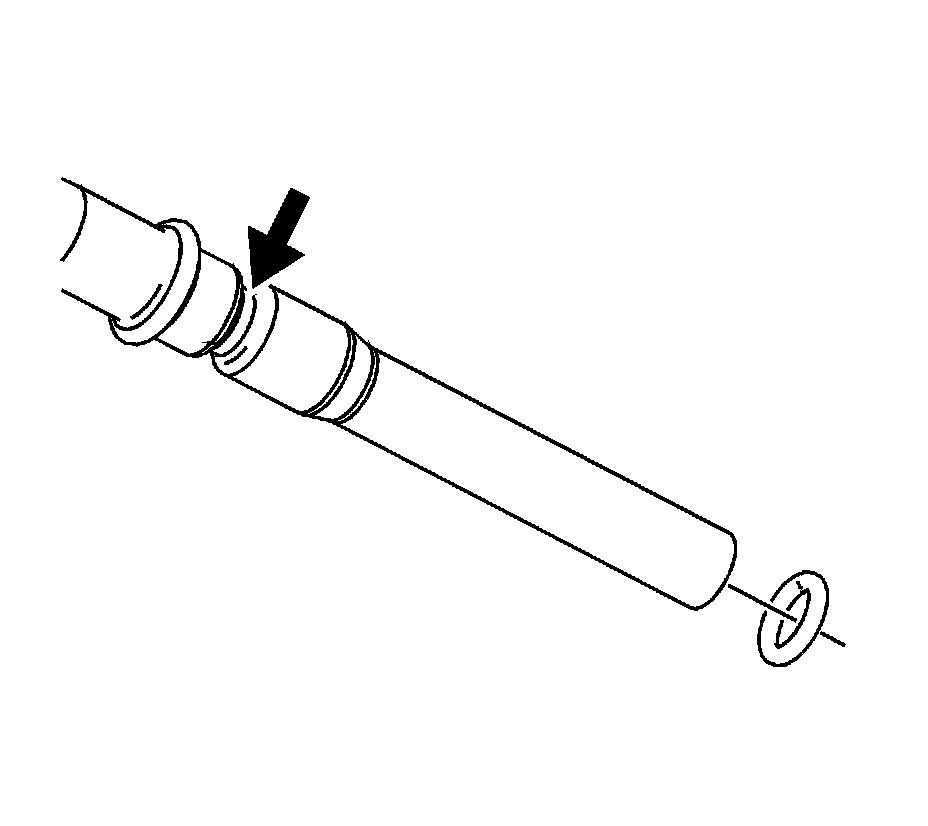

1. Install a NEW O-ring on the oil level indicator tube.





2. Install the oil level indicator and tube by sliding the tube down through the lower crankcase hole.





Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the oil level indicator tube bracket bolt and tighten to 10 Nm (89 lb in).
