Air Conditioning Compressor Malfunction
Air Conditioning Compressor Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

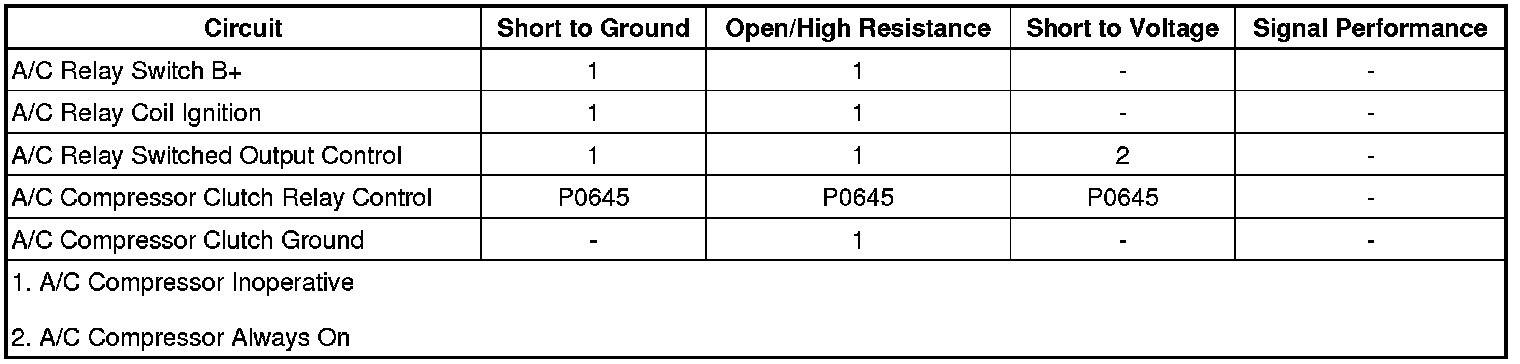

Diagnostic Fault Information
Circuit System Description
When the A/C switch is pressed, the HVAC control module sends a serial data message to the ECM. This input will request the engine control module (ECM) to ground the A/C compressor clutch relay control circuit, which will switch the A/C CMPRSR CLUTCH relay on. With the relay contacts closed, battery voltage is supplied to the A/C compressor clutch assembly.
Diagnostic Aids
The following conditions must be met in order for the ECM to turn on the compressor clutch:
* Battery voltage is between 9-18 volts
* Engine coolant temperature (ECT) is less than 123°C (253°F)
* Engine speed is greater than 600 RPM
* Engine speed is less than 4,760 RPM
* A/C high side pressure is between 2929-269 kPa (39-425 psi) Air Conditioning (A/C) System Performance Test Air Conditioning (A/C) System Performance Test
* Throttle position is less than 100 percent
* Evaporator temperature is greater than 0°C (32°F)
* ECM does not detect excessive torque load
* ECM does not detect insufficient idle quality
* The ambient temperature is above 1°C (34°F)
Reference Information
Schematic Reference
HVAC Schematics HVAC - Automatic
Connector End View Reference
Component Connector End Views A/C Compressor Clutch
Description and Operation
* Air Temperature Description and Operation Air Temperature
* Air Delivery Description and Operation Air Delivery
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
Engine running place the mode switch in the defrost position. The A/C compressor clutch should engage.
If the clutch does not engage refer to Air Conditioning (A/C) System Performance Test Air Conditioning (A/C) System Performance Test
Circuit/System Testing
1. Ignition OFF, disconnect the A/C relay.
2. Ignition ON, verify that a test lamp does not illuminate between the control circuit terminal 86 and ground.
• If the test lamp illuminates, test the control circuit for a short to voltage.
3. Verify that a test lamp illuminates between the ignition circuit terminal 85 and ground.
• If the test lamp does not illuminate, test the ignition circuit for a short to ground or a open/high resistance. If the circuit tests normal and ignition circuit fuse is open, test all components connected to the ignition circuit and replace as necessary.
4. Verify that a test lamp illuminates between the relay B+ circuit terminal 30 and ground.
• If the test lamp does not illuminate, test the B+ circuit for a short to ground or a open/high resistance. If the circuit tests normal and B+ circuit fuse is open, replace the A/C Clutch Relay.
5. Disconnect the harness connector at the A/C clutch coil.
6. Test for less than 1 ohm between the ground circuit terminal ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
7. Connect the harness connector at the A/C clutch coil.
8. Connect a 10-amp fused jumper wire between the B+ circuit terminal 30 and control circuit terminal 87. Verify the A/C clutch is activated.
• If the A/C clutch does not activate, test the control circuit for an open/high resistance. If the circuit tests normal, test or replace the A/C clutch.
9. Connect a test lamp between the ignition circuit terminal 85 and the control circuit terminal 86.
10. Command the A/C Relay output function ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.
• If the test lamp is always ON, test the control circuit for a short to ground. If the circuit tests normal, replace the ECM.
• If the test lamp is always OFF, test the control circuit for a short to voltage, or an open/high resistance. If the circuit tests normal, replace the ECM.
11. If all circuits test normal, test or replace the A/C clutch relay.
Component Testing
Relay Test
1. Ignition OFF, disconnect the A/C relay.
2. Test for 60-200 ohms between terminal 85 and 86.
• If the resistance is not within the specified range, replace the relay.
3. Test for infinite resistance between the following terminals:
* 30 and 86
* 30 and 87
* 30 and 85
* 85 and 87
• If not the specified value, replace the relay.
4. Install a 15A fused jumper wire between relay terminal 85 and 12 volts. Install a jumper wire between relay terminal 86 and ground. Test for less than 2 ohms between terminals 30 and 87.
• If greater than the specified range, replace the relay.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Air Conditioning Compressor Replacement Removal and Replacement
* Relay Replacement (Within an Electrical Center) Relay Replacement (Within an Electrical Center)Relay Replacement (Attached to Wire Harness) Relay Replacement (Attached to Wire Harness)
* Air Conditioning Clutch Assembly Replacement Service and Repair
* Control Module References Control Module References for HVAC control module and ECM replacement, setup, and programming
