Left Rear of the Passenger Compartment

Luggage Compartment/Rear of Vehicle Component Views

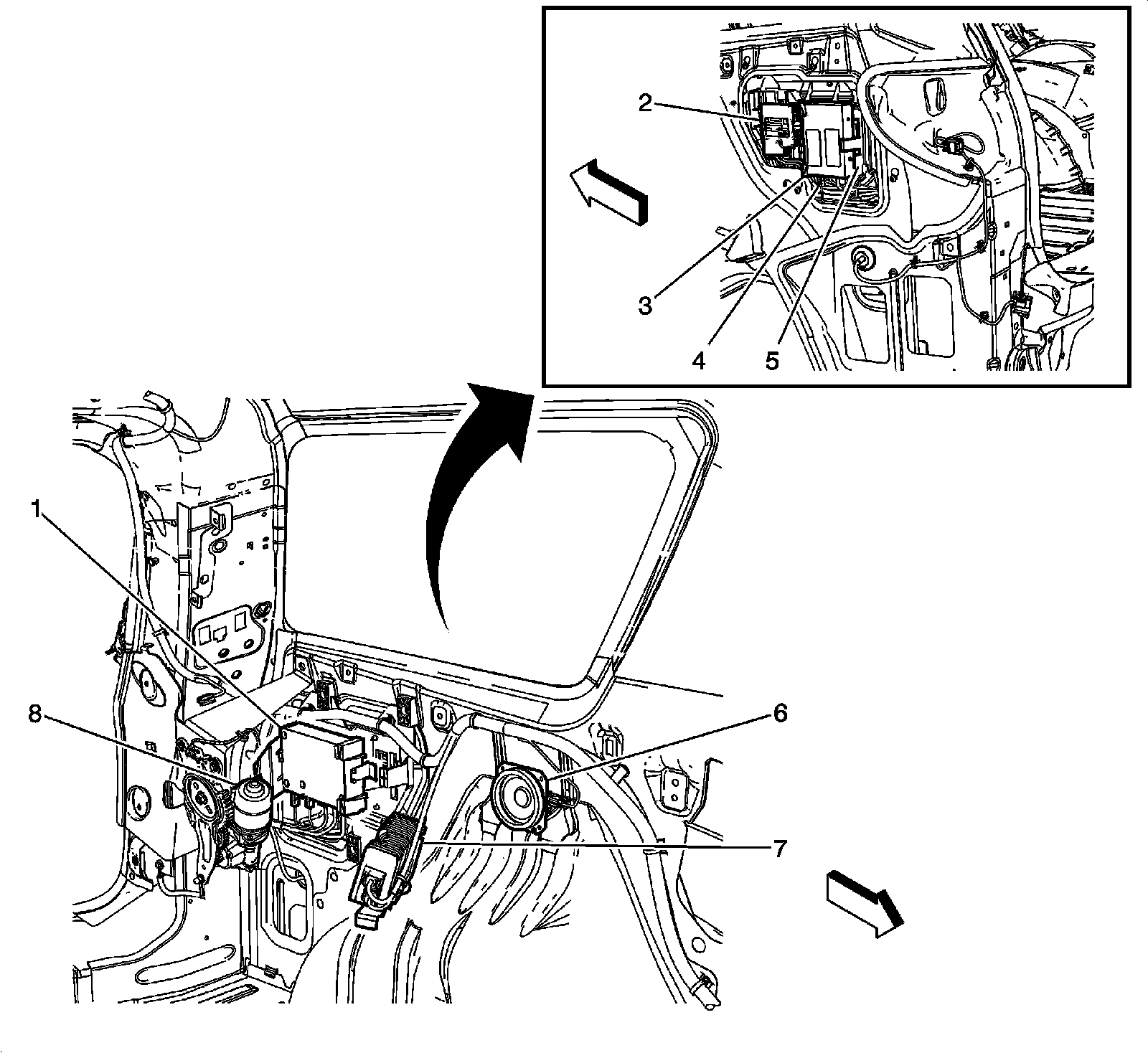

Left Rear of the Passenger Compartment





1 - Liftgate Module (LGM) (TB5)

2 - Object Alarm Module (UD7)

3 - Vehicle Communications Interface Module (VCIM) (UE1)

4 - Wireless Communication Interface Antenna- Bluetooth (UPF)

5 - Digital Radio Receiver (U2K or UBS)

6 - Speaker- Left Rear Compartment (UQA or UQS)

7 - Accessory AC/DC Power Control Module (KV1)

8 - Liftgate Actuator Assembly (TB5)
