Hub & Rotor

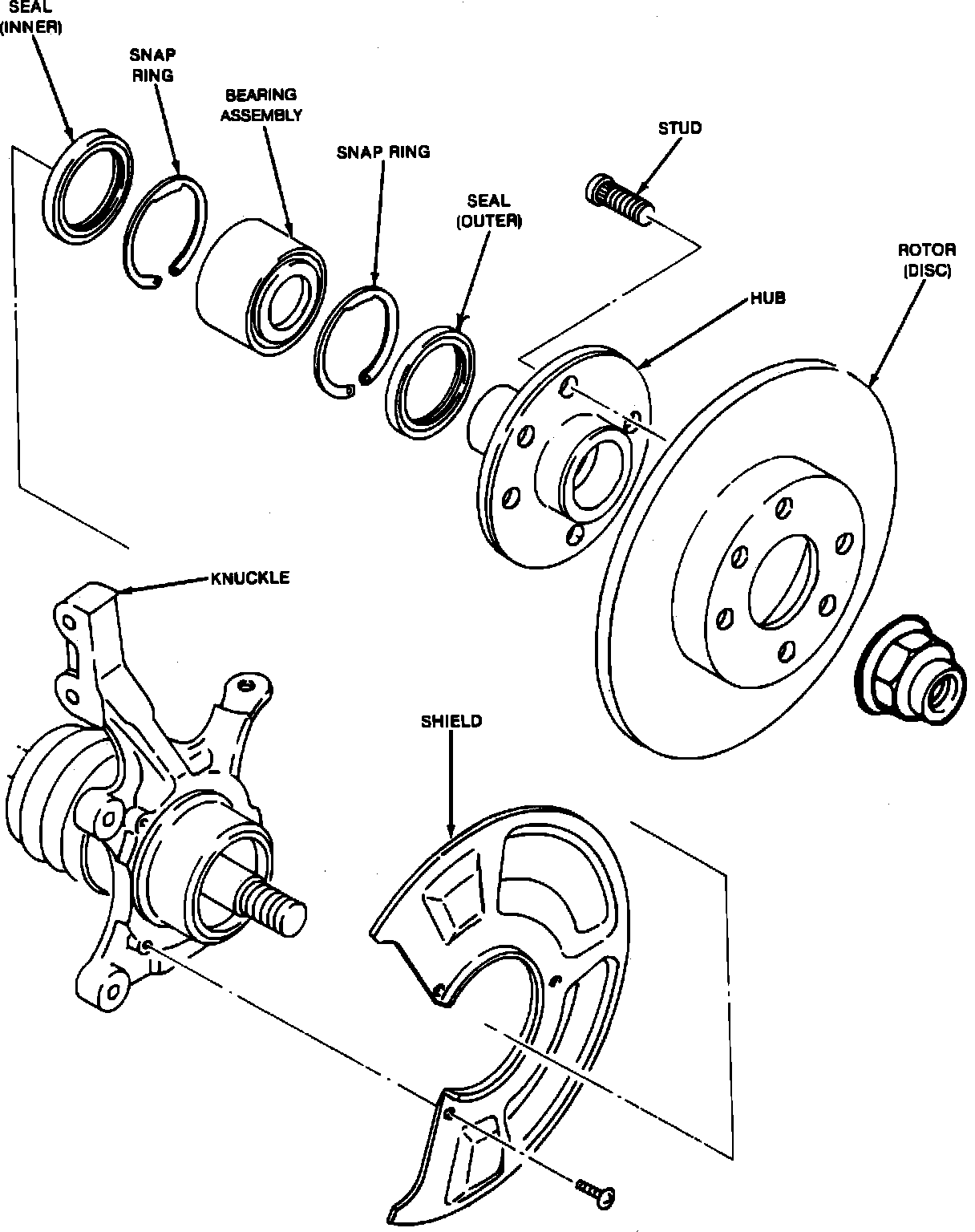

Fig. 10 Exploded View Of Steering Knuckle & Hub Assembly:

Fig. 11 Hub Removal:

Fig. 12 Hub Spindle Nut Installation:

1. Raise and support front of vehicle.
2. Loosen wheel lug nuts, then remove wheel and tire assembly.
3. Remove caliper to knuckle attaching bolts, then position caliper aside.
4. Unstake nut, then remove nut and rotor, Fig. 10.
5. Using tool Nos. J-34866 and J-2619-01, remove hub, Fig. 11.
6. Reverse procedure to install. Replace all bearings, seals and self locking nuts. After tightening nut to specified torque, stake nut, Fig. 12.
