Brake Proportioning/Combination Valve: Service and Repair

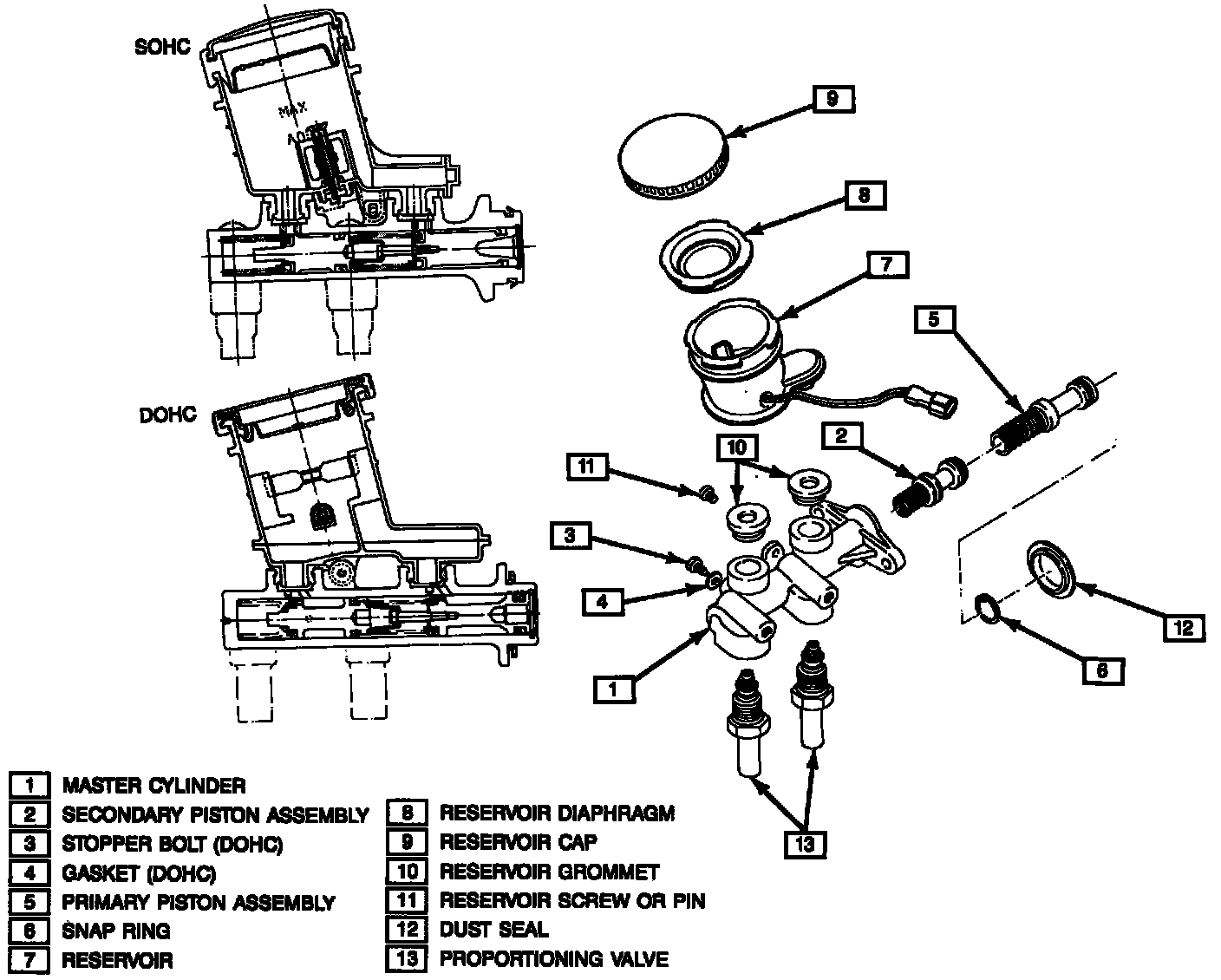

Master Cylinder:
REMOVE OR DISCONNECT 1.
Brake lines from proportioner valves.
2.
Proportioner valves from master cylinder.
INSTALL OR CONNECT 1.
Proportioner valves to master cylinder and tighten to
45 Nm (33 lbs ft).
2.
Brake lines to proportioner valves and tighten to
15 Nm (11 lbs ft).
