Wheel Alignment, Front - Revised Specifications
9216chevy02
Number:
90-35l-3A
Section:
3A
Date:
October 1990
Corporate Bulletin No.: 033102
Subject:
FRONT ALIGNMENT SPECIFICATIONS
Model and Year:
1989-90 GEO PRIZM
TO:
ALL CHEVROLET DEALERS

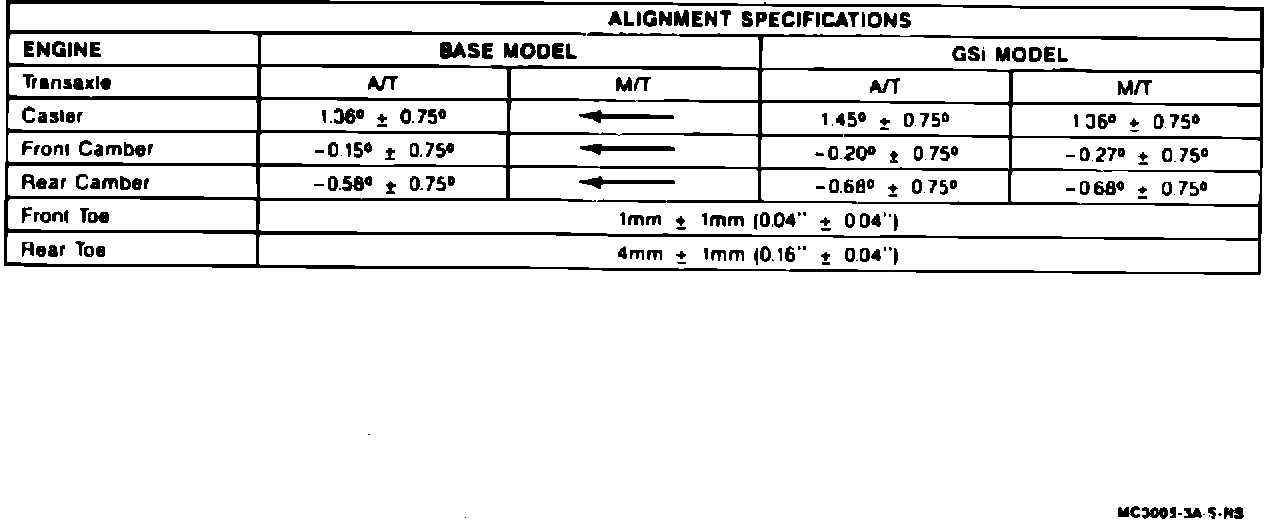

The attached chart replaces the chart in Figure 12 on page 3A-5 in the 1989/90 GEO Prizm Service Manual (ST373-89/90).
Please note your copies of the above Service Manuals accordingly.
