Automatic Transmission/Transaxle: Testing and Inspection

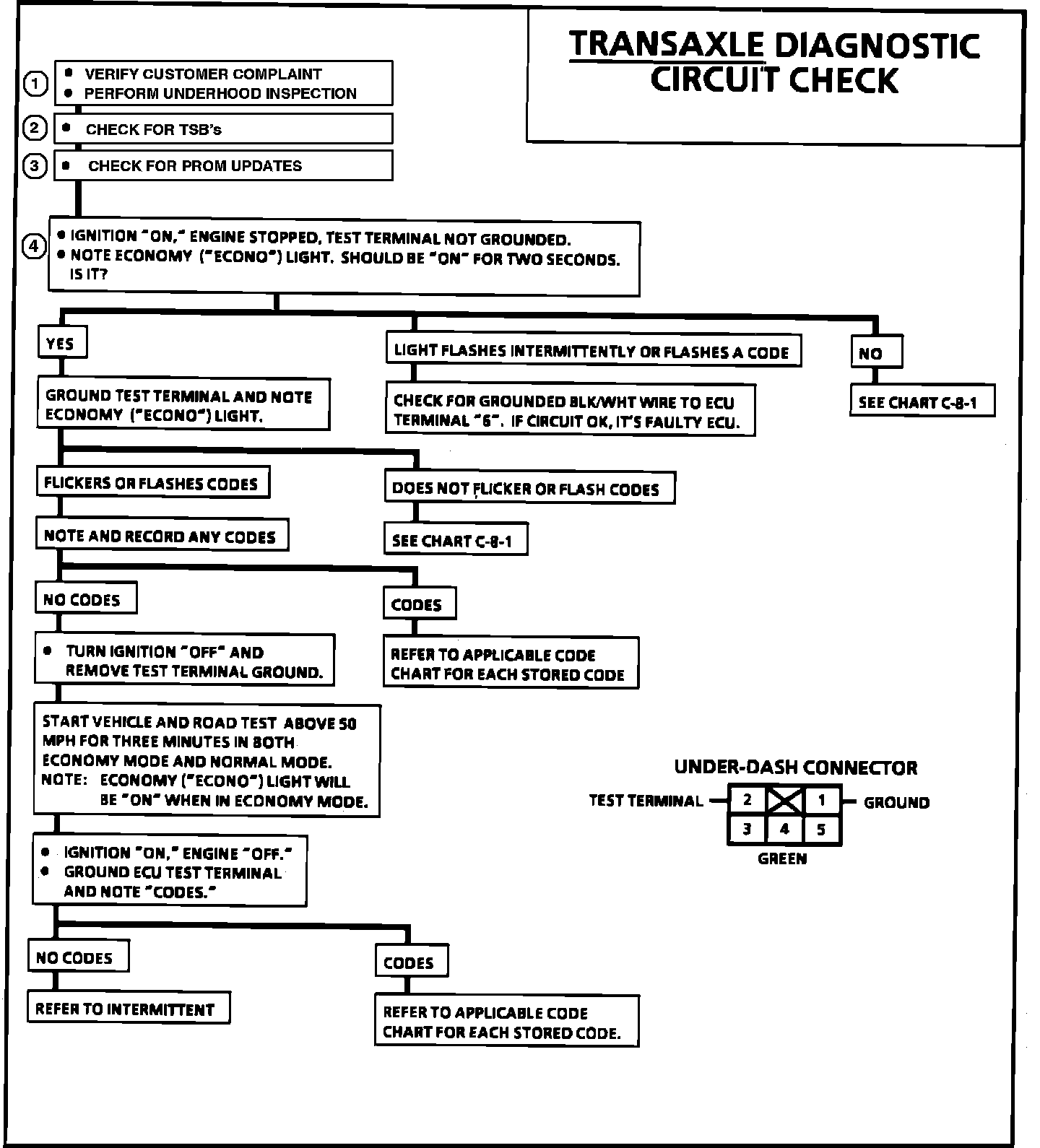

Flow Of Diagnosis:

NOTE:
a. Numbers below refer to circled numbers in flow chart.
b. Since this is the starting point for all diagnostic procedures or finding the cause of an emissions test failure, always begin here and always follow the flow chart as directed.

1. Get an accurate description of the complaint and verify. Include filling out the DRIVEABILITY WORKSHEET and VEHICLE REPAIR HISTORY. Refer to INFO TYPE/TECHNICAL MANAGEMENT SUPPORT for forms.

Perform Underhood Inspection:

a. Check vacuum hoses for splits, kinks, and proper routing.
b. Check ignition wires for cracking, hardness, and proper connections at both the distributor and spark plugs.
c. Check all wiring for proper connections, pinches, and cuts.
d. Check wiring harness for proper routing.
e. Check for missing components.

2. Check for manual updates, testing procedures, warranty and recall information.

3. Refer to PROM I.D.

4. Perform the system check. The system check is performed through the twelve terminal assembly line data link (ALDL) connector under the instrument panel in the passenger compartment.
