Electronic/Powertrain Control Module (ECM/PCM)

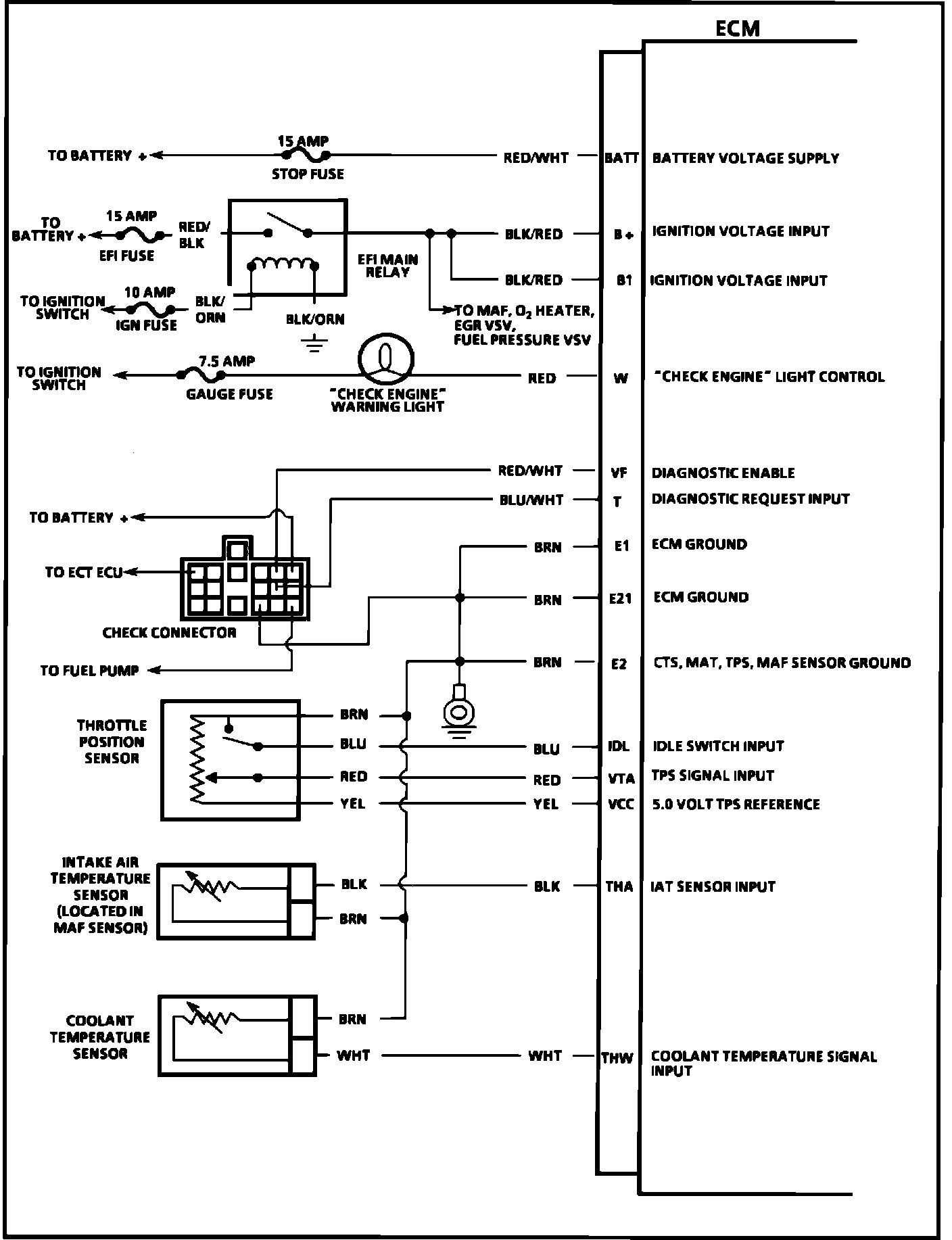

Driveability And Emissions:

BATT = BATTERY VOLTAGE SUPPLY
B+ = IGNITION VOLTAGE INPUT
B1 = IGNITION VOLTAGE INPUT
W = CHECK ENGINE LIGHT CONTROL
VF = DIAGNOSTIC ENABLE
T = DIAGNOSTIC REQUEST INPUT
E1 = ECM GROUND
E21 = ECM GROUND
E2 = CTS, IAT, TPS, AND MAF SENSOR GROUND
IDL = IDLE SWITCH INPUT
VTA = TPS SIGNAL INPUT
VCC = 5.0 VOLT TPS REFERENCE
THA = IAT SENSOR INPUT
THW = COOLANT TEMPERATURE SIGNAL INPUT

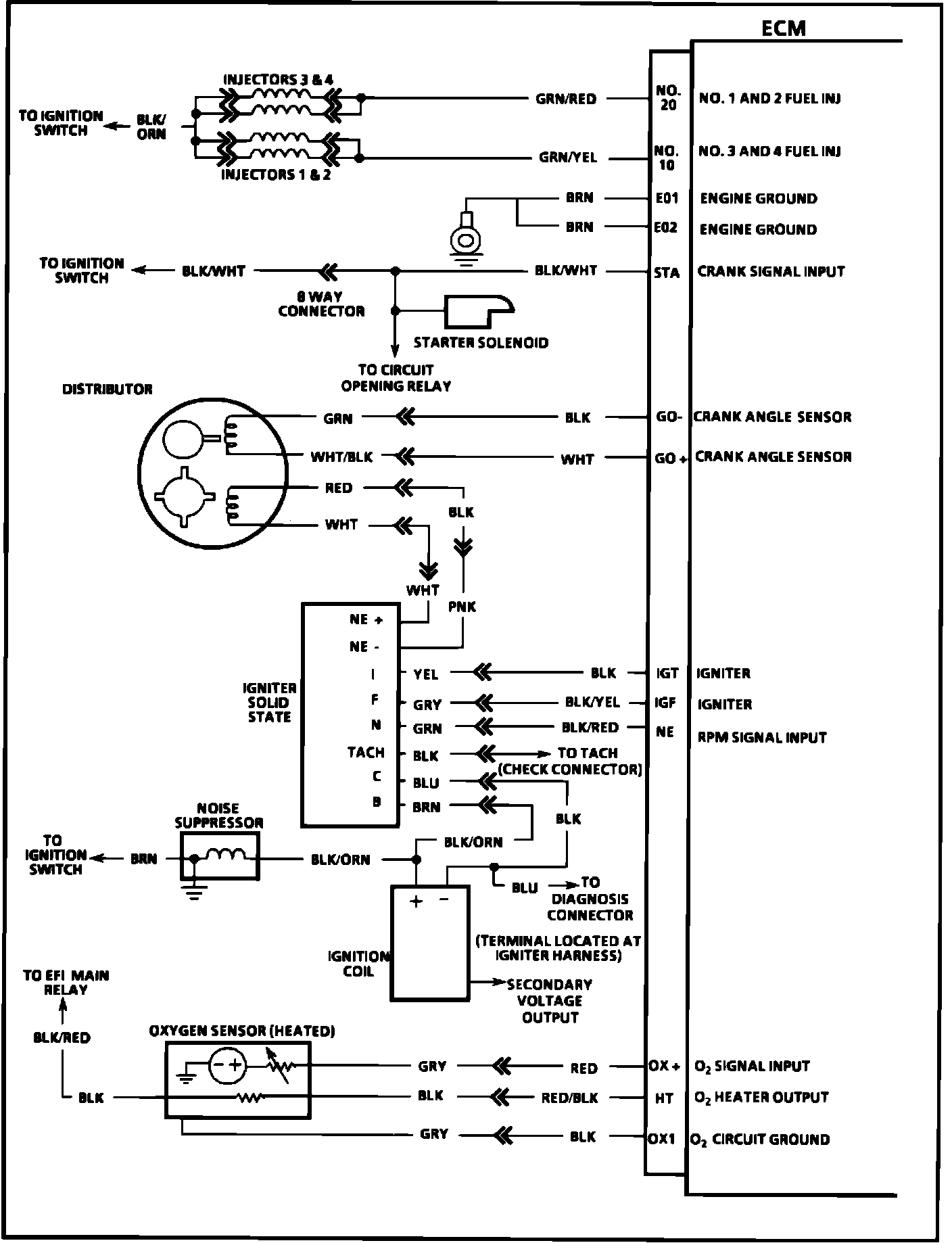

Driveability And Emissions:

28 = NUMBER 1 AND 2 FUEL INJECTOR
10 = NUMBER 3 AND 4 FUEL INJECTOR
E01 = ENGINE GROUND
E02 = ENGINE GROUND
STA = CRANK SIGNAL INPUT
GO- = CRANK ANGLE SENSOR
GO+ = CRANK ANGLE SENSOR
IGT = IGNITER
IGF = IGNITER
NE = RPM SIGNAL INPUT
OX+ = 02 SIGNAL INPUT
HT = O2 HEATER OUTPUT
OX- = O2 CIRCUIT GROUND

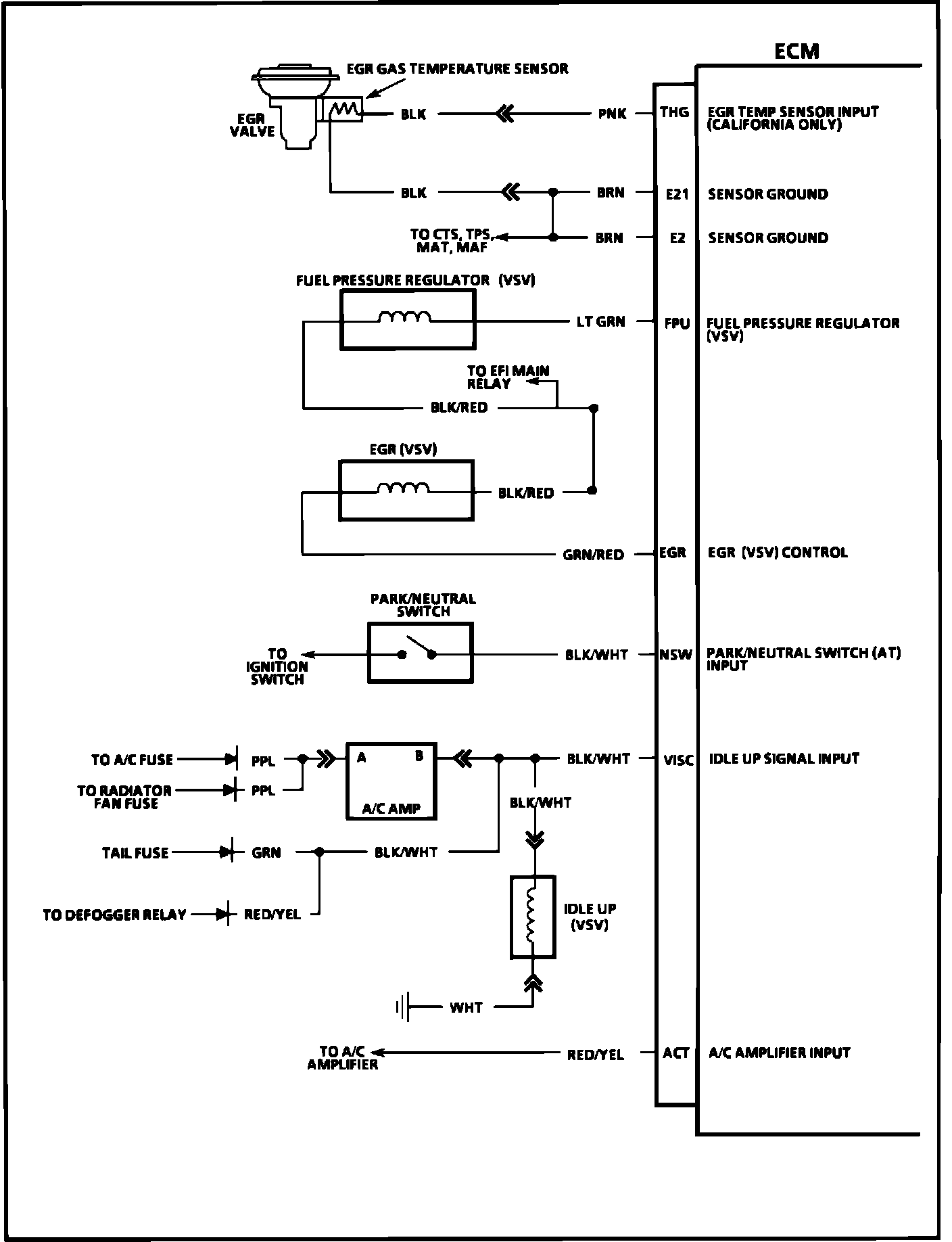

Driveability And Emissions:

THG = EGR TEMP SENSOR INPUT
E21 = SENSOR GROUND
E2 = SENSOR GROUND
FPU = FUEL PRESSURE REGULATOR (VSV)
EGR = EGR (VSV) CONTROL
NSW = PARK/NEUTRAL SWITCH (AT) INPUT
VSC = IDLE UP SIGNAL INPUT
ACT = A/C AMPLIFIER INPUT

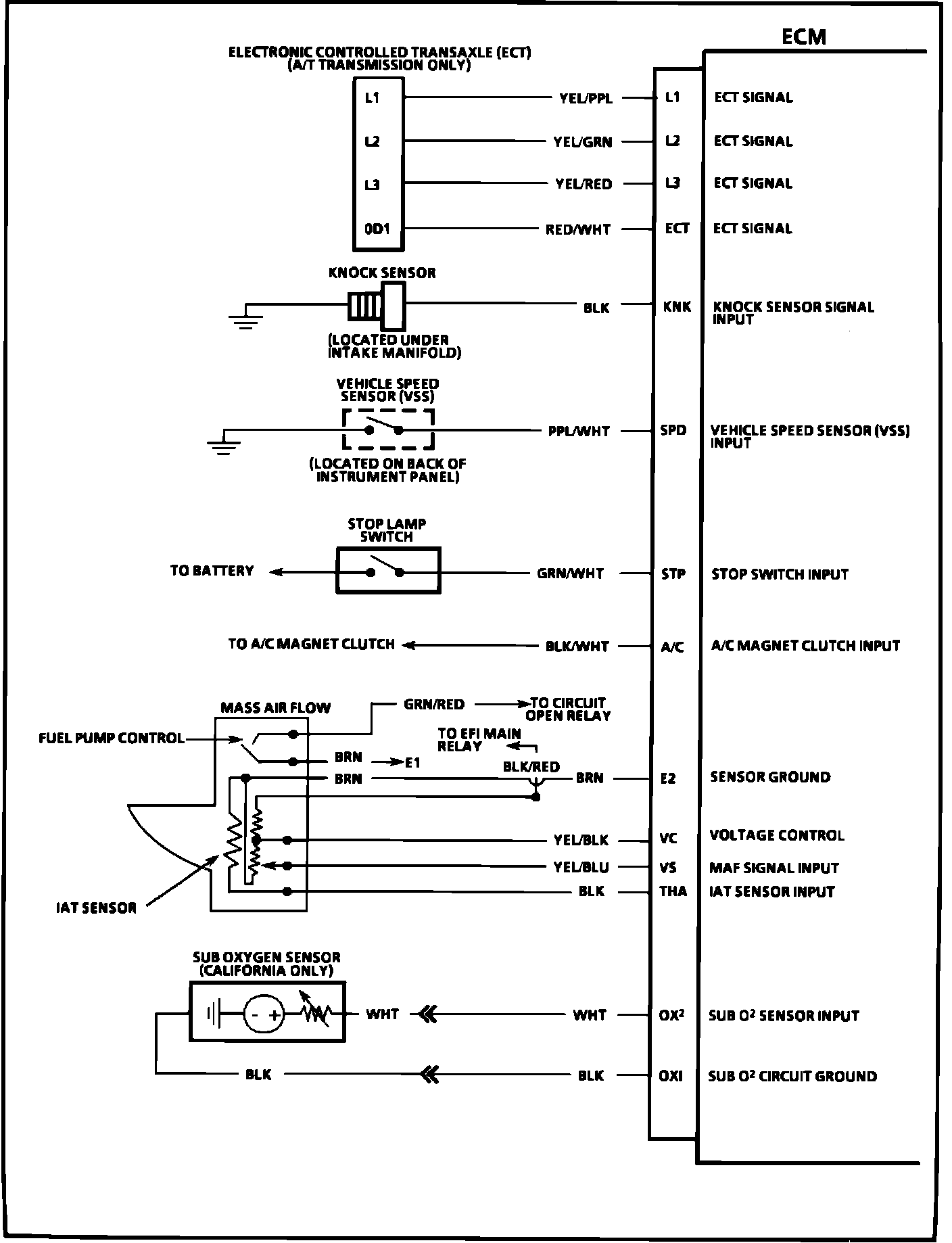

Driveability And Emissions:

L1 = ECT SIGNAL
L2 = ECT SIGNAL
L3 = ECT SIGNAL
ECT = ECT SIGNAL
KNK = KNOCK SENSOR SIGNAL INPUT
SPD = VSS INPUT
STP = STOP SWITCH INPUT
A/C = A/C MAGNET CLUTCH INPUT
E2 = SENSOR GROUND
VC = VOLTAGE CONTROL
VS = MAF SIGNAL INPUT
THA = IAT SENSOR INPUT
OX2 = SUB O2 SENSOR INPUT
OX1 = SUB 02 CIRCUIT GROUND
