Chart A-3

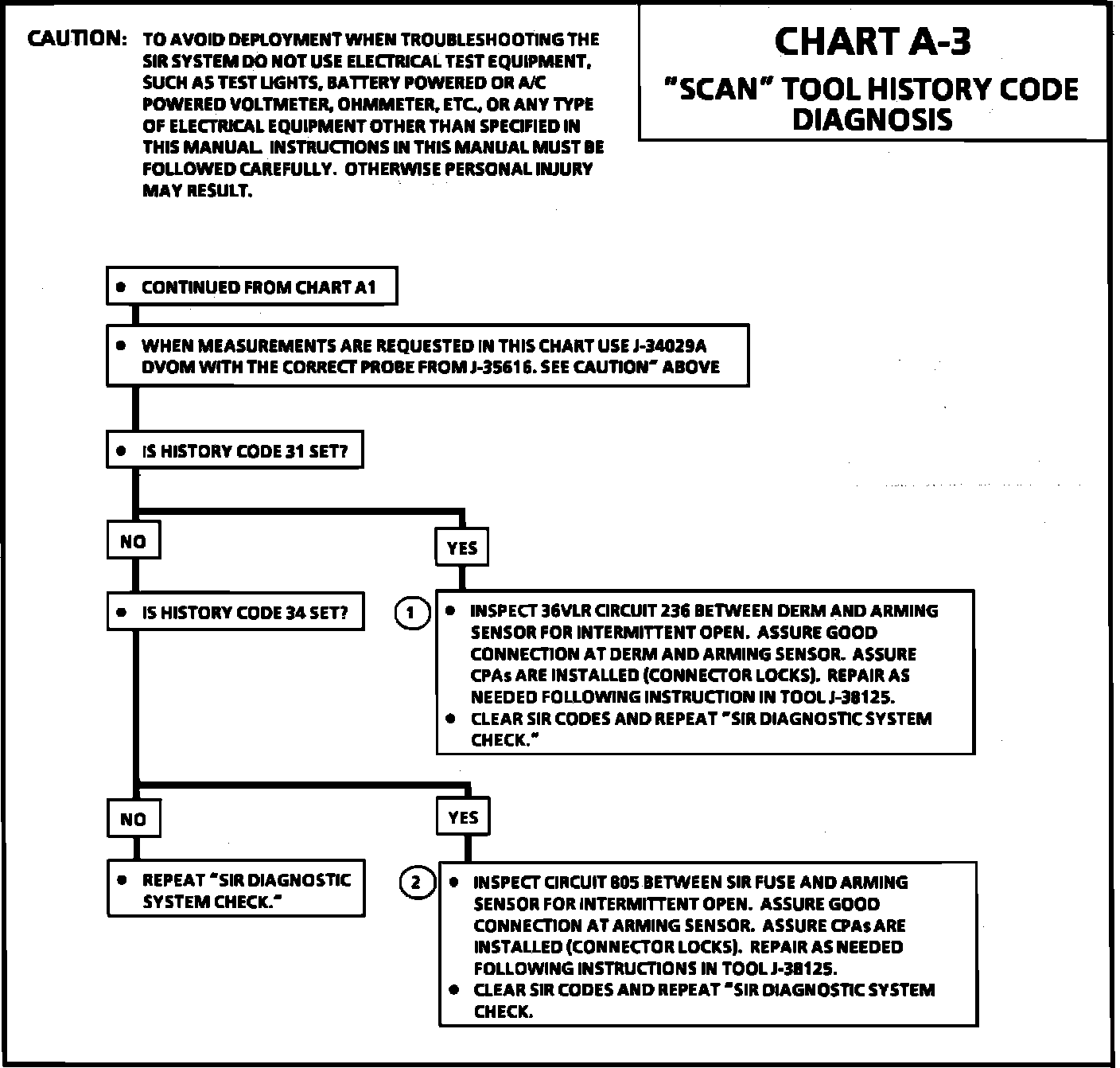

Fig. 43 Chart A3, Scan Tool History Code Diagnosis (Part 1 Of 2).:



Fig. 43 Chart A3, Scan Tool History Code Diagnosis (Part 2 Of 2).:
