Suspension - Strut R&R, Alignment Rod Special Tool

Number:
92-231-3C

Section:
3C

Date:
JUNE 1992

Corporate Bulletin No.:
233304

ASE No:



Subject:
ALIGNMENT ROD SPECIAL TOOL


Model and Year:
1989-92 GEO METRO

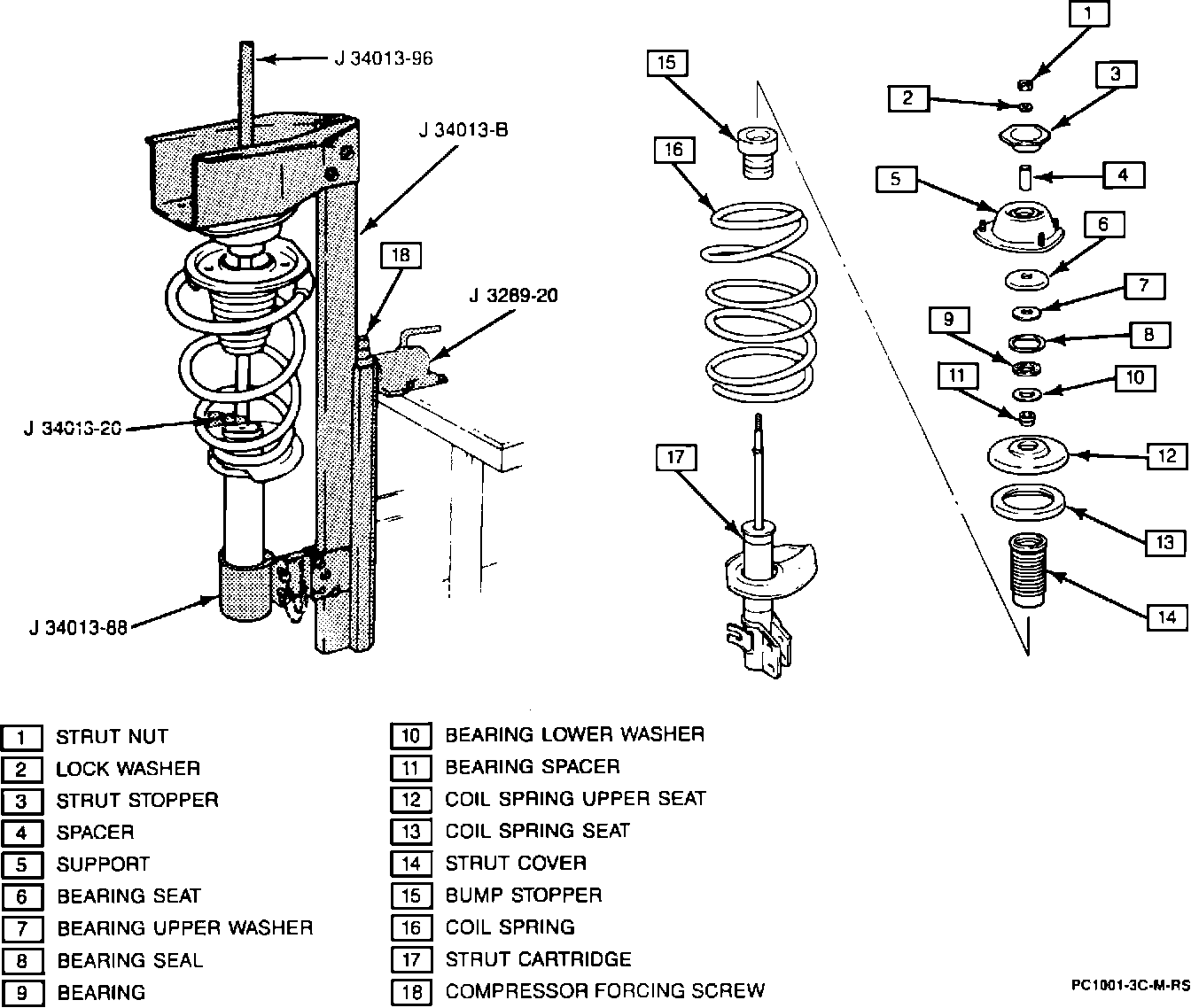

This bulletin amends a special tool number used in Section 3C of the 1989-92 Geo Metro Service Manuals (ST370-89, ST370-90, ST370-91 and ST370-92, respectively). Previously, a J 34013-38 Alignment Rod was shown during front suspension strut disassembly and assembly procedures. Instead of the J 34013-38, a J 34013-96 should be used for this procedure (Figure 1).
