Oil Pressure Control Cable

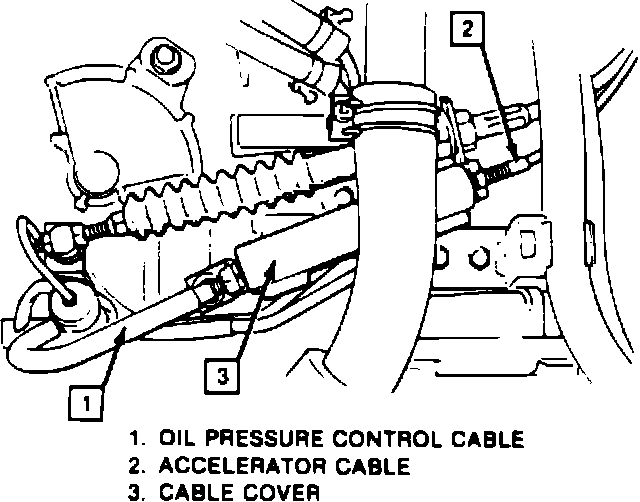

Fig. 11 Oil Pressure Control Cable Replacement:
1.
Remove cable cover, then disconnect oil pressure control cable from accelerator cable.
2.
Drain transaxle fluid and remove oil pan.
3.
Disconnect oil pressure control cable from
throttle valve cam, then remove the cable from transaxle case.
4.
Reverse procedure to install, then adjust cable as previously described.
