Connecting Rod: Service and Repair

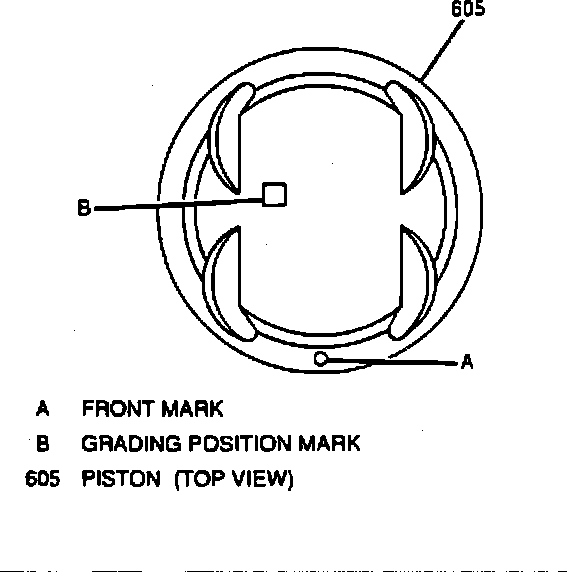

Fig. 27 Piston Mark Location. 1.6L Engine:

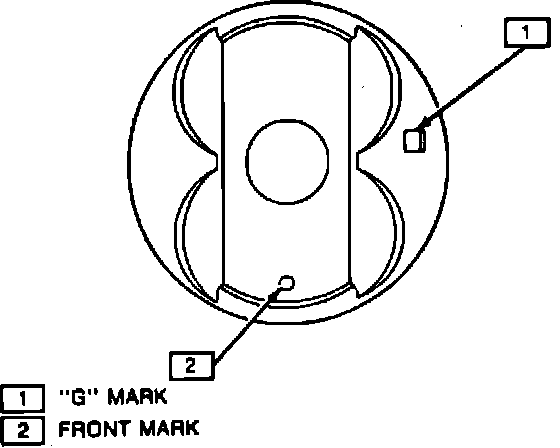

Fig. 28 Piston Mark Location. 1.8L Engine:

Align front marks on piston and rod assemblies, Figs. 27 & 28.. Ensure that mark is facing front of engine when installing into cylinder block.
