Automatic Transmission

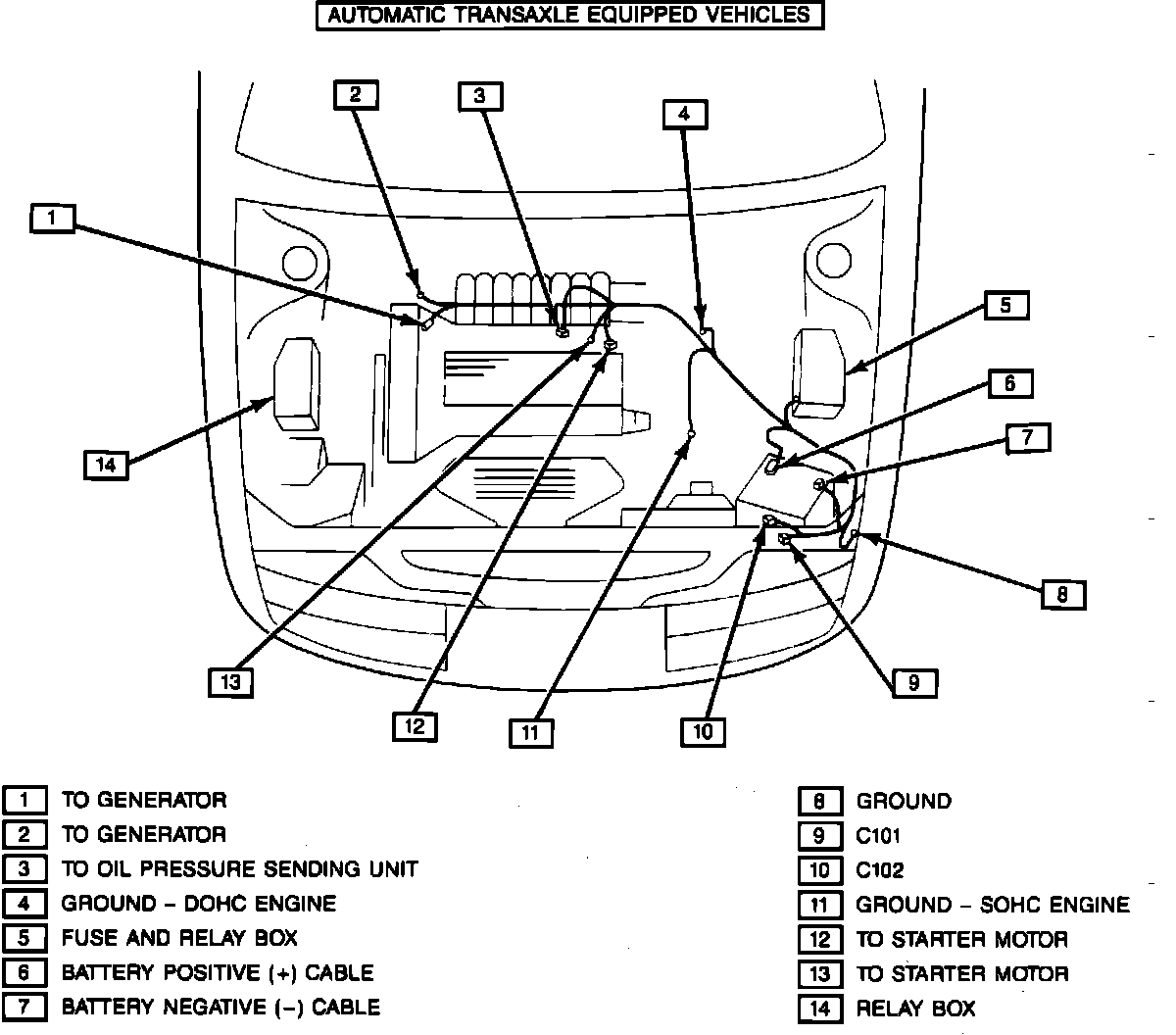

Underhood Block Diagram:
1.
TO GENERATOR
2.
TO GENERATOR
3.
TO OIL PRESSURE SENDING UNIT
4.
GROUND-DOHC ENGINE
5.
FUSE AND RELAY BOX
6.
BATTERY POSITIVE (+) CABLE
7.
BATTERY NEGATIVE (-) CABLE
8.
GROUND
9.
C101
10.
C102
11.
GROUND-SOHC ENGINE
12.
TO STARTER MOTOR
13.
TO STARTER MOTOR
14.
RELAY BOX
