Blower Motor: Service and Repair

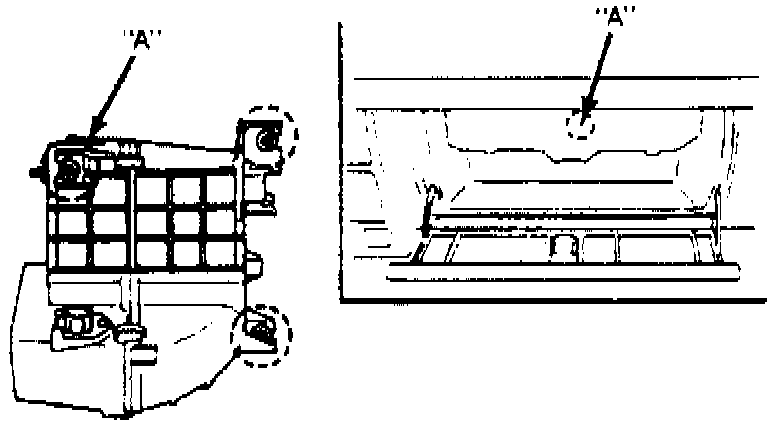

Fig. 13 Blower Motor Case Attaching Screw Locations.:

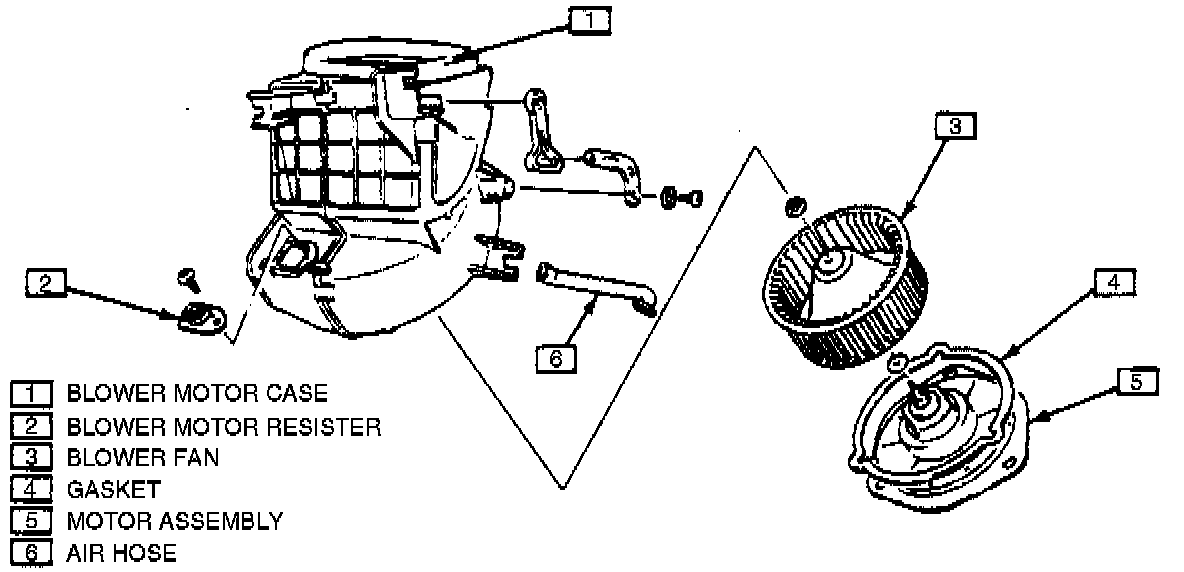

Fig. 14 Blower Motor & Case Assembly.:

1. Disconnect battery ground cable.
2. Proceed as follows:
a. Remove two screws attaching glove compartment striker to instrument panel.
b. Remove one screw attaching rear of glove compartment upper panel, then remove upper panel.
3. Disconnect blower motor and blower resistor electrical connectors.
4. Disconnect fresh air control cable from blower motor housing.
5. Remove three blower motor housing attaching bolt, then remove blower motor housing, Fig. 13 .
6. Remove air hose, then remove three attaching screws and separate blower motor from housing, Fig. 14 .
7. Reverse procedure to install.
