Speedometer Gear, A/T: Service and Repair

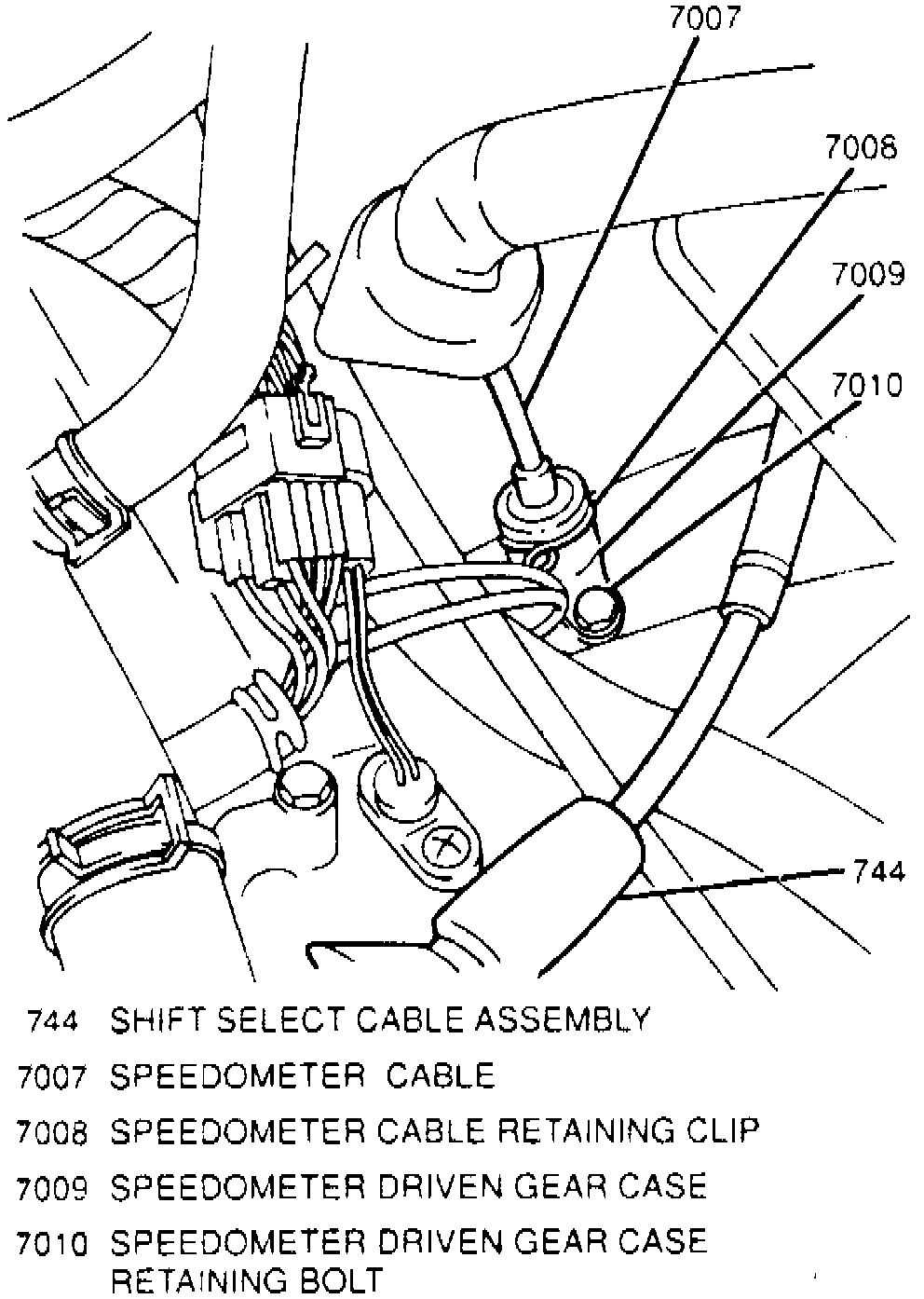

Fig. 18 Speedometer Driven Gear Case.:






REPLACE
1. Slide speedometer driven gear case boot up speedometer cable and off speedometer driven gear case, Fig. 18.
2. Remove speedometer cable retaining clip and speedometer cable from speedometer driven gear case.
3. Remove retaining bolt and speedometer driven gear from transaxle case.
4. Using a drift punch and hammer, remove driven gear case roll pin from speedometer driven gear case.
5. Remove speedometer driven gear from driven gear case.
6. Remove driven gear case O-ring, then the driven gear case lip seal.
7. Reverse procedure to install, lubricate speedometer driven gear, lip seal and O-ring with Transjel transmission assembly lubricant No. J-36850 or equivalent, tighten driven gear retaining bolt to specification.
