Pictoral Views

Engine Wiring:

606 = MAIN HARNESS
607 = ENGINE HARNESS.
615 = BATTERY POSITIVE (+) TERMINAL.
616 = C-100
617 = TO FUEL INJECTOR
618 = IDLE AIR CONTROL (IAC) VALVE
619 = INTAKE AIR TEMPERATURE (IAT) SENSOR.
620 = THROTTLE POSITION (TP) SENSOR.
621 = COOLANT TEMPERATURE SENSOR.
622 = OIL PRESSURE SWITCH.
623 = EXHAUST GAS RECIRCULATION SOLENOID VACUUM VALVE
624 = THROTTLE OPENER SOLENOID VACUUM VALVE
625 = GROUND G-106
626 = ENGINE COOLANT TEMPERATURE SENDING UNIT
627 = EVAPORATIVE EMISSION SOLENOID PURGE VALVE
628 = GENERATOR
629 = STARTER SOLENOID.
630 = GROUND G-103.
631 = EXHAUST GAS RECIRCULATION (EGR) TEMPERATURE SENSOR. (CALIFORNIA MODELS ONLY)

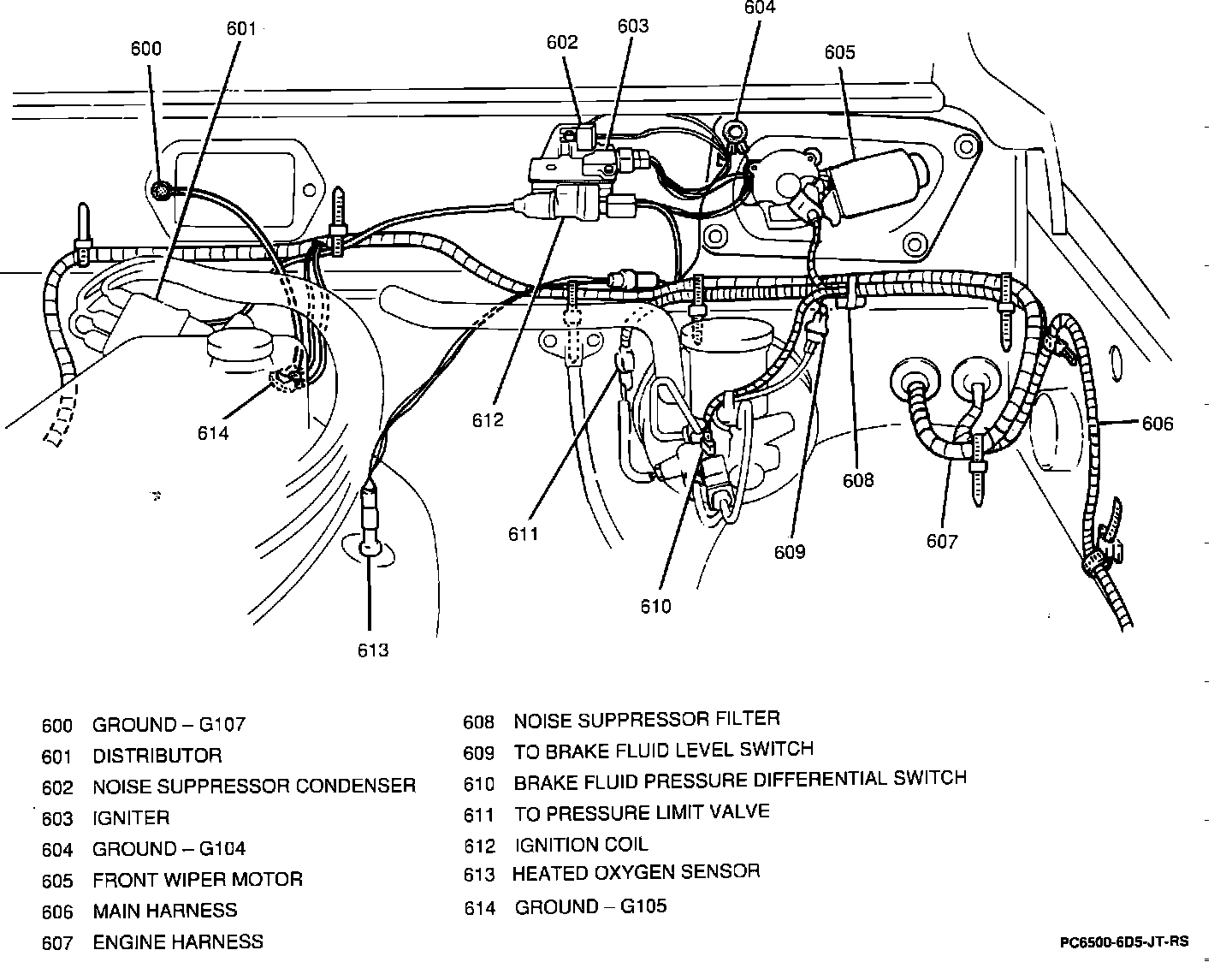

Engine Wiring:

600 = GROUND G-107
601 = DISTRIBUTOR
602 = NOISE SUPPRESSION CONDENSER.
603 = IGNITER
604 = GROUND G-104
605 = FRONT WIPER MOTOR
606 = MAIN WIRING HARNESS.
607 = ENGINE WIRING HARNESS.
608 = NOISE FILTER.
609 = TO BRAKE FLUID SWITCH.
610 = BRAKE FLUID PRESSURE DIFFERENTIAL SWITCH
611 = TO PRESSURE LIMIT VALVE.
612 = IGNITION COIL
613 = HEATED OXYGEN SENSOR
614 = GROUND G-105
