Junction Block


Junction Block, Fuse Block Details

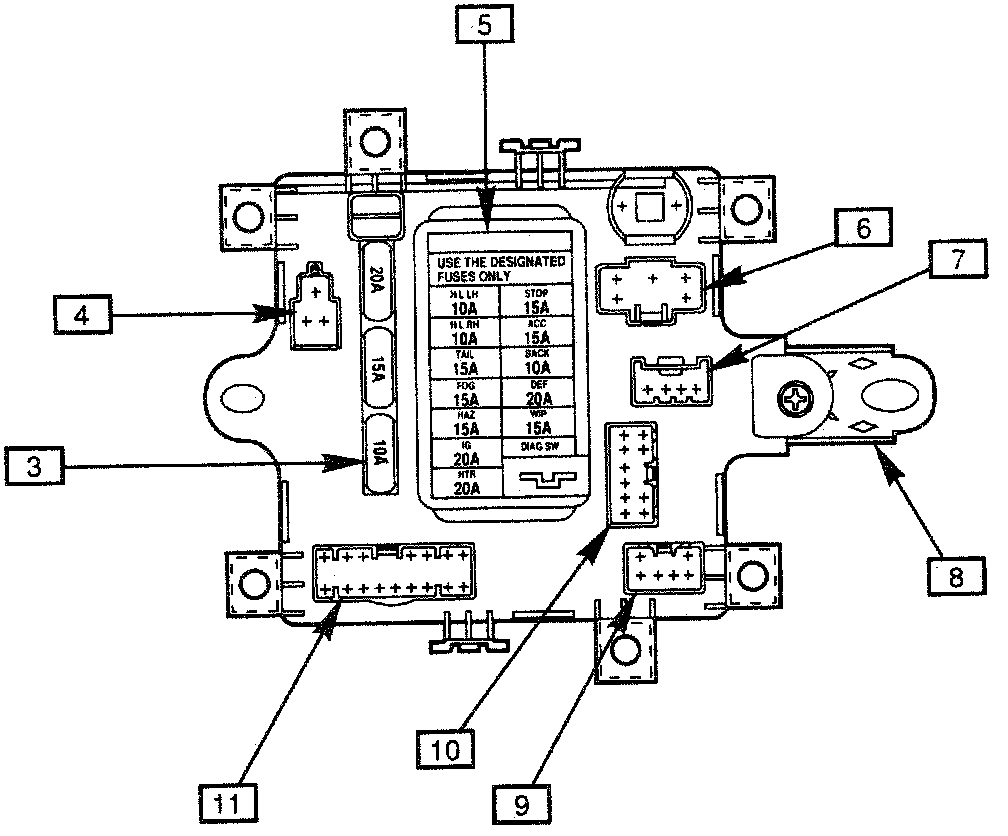

Junction Block, Top View:




Junction Block, Bottom View:






1) MAIN WIRING HARNESS CONNECTOR (C8)
2) TURN SIGNAL RELAY
3) SPARE FUSES
4) INSTRUMENT PANEL WIRING HARNESS CONNECTOR (C6)
5) FUSE BLOCK
6) IGNITION SWITCH (C1)
7) IGNITION SWITCH (C2)
8) GROUNDING BRACKET
9) TURN SIGNAL-DIMMER SWITCH (C3)
10) COMBINATION SWITCH CONNECTOR (C4)
11) INSTRUMENT PANEL WIRING HARNESS CONNECTOR (C5)
12) MAIN WIRING HARNESS CONNECTOR (C9)
13) MAIN WIRING HARNESS CONNECTOR (C7)
14) FLOOR WIRING HARNESS CONNECTOR (C10)
