Main Relay (Computer/Fuel System): Service and Repair
REMOVE OR DISCONNECT 1.
Negative (-) battery cable.
2.
Relay box cover from relay box.
3.
Main relay from
relay box.
INSTALL OR CONNECT 1.
Main relay into
relay box.
2.
Relay box cover to relay box.
3.
Negative (-) battery cable. Tighten negative (-) battery cable-to-negative (-) battery terminal.

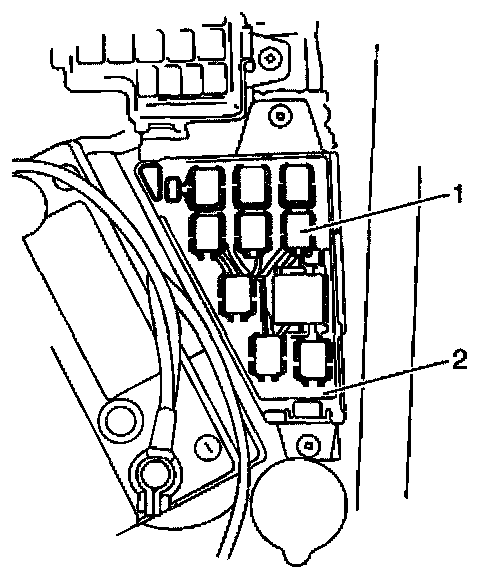

Legend 1.
Main Relay
2.
Relay Box
