Torque Specifications

Cylinder Head Bolts

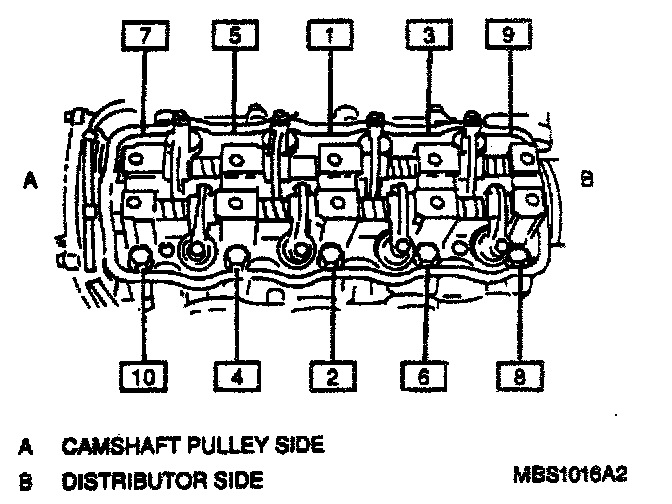

In the sequence shown (refer to image), tighten bolts a little at a time and evenly. Repeat tightening sequence three or four times before reaching specified torque.

- Torque all bolts to 73 N.m (54 lb. ft.)
