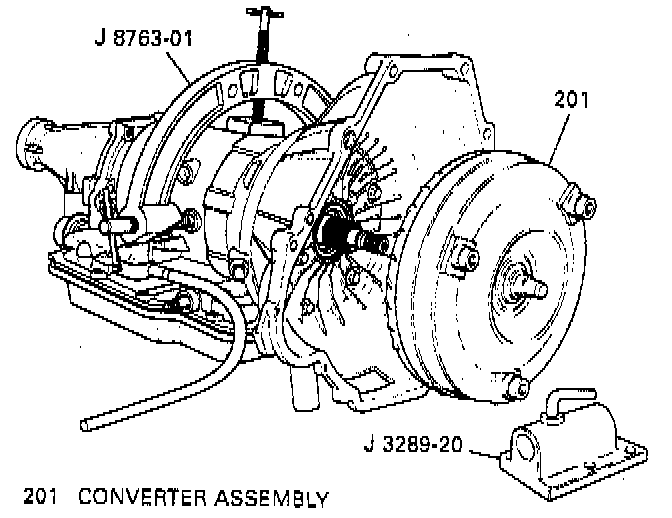

Holding Fixture






REMOVE OR DISCONNECT
1. Transmission Assembly and Holding fixture J 8763-01 from base J 3289-20.
2. Holding fixture J 8763-01 from Transmission Assembly.
