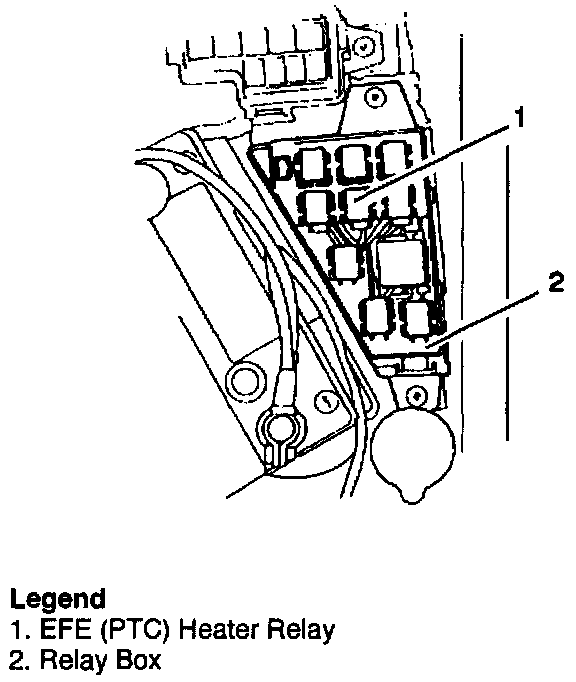

EFE Relay: Service and Repair
REMOVE OR DISCONNECT 1.
Negative (-) battery cable.
2.
Relay box cover from relay box.
3.
EFE Positive Temperature Coefficient
(PTC) Heater relay from
relay box.
INSTALL OR CONNECT 1.
PTC heater relay to
relay box.
2.
Relay box cover to relay box.
3.
Negative (-) battery cable. Tighten Negative (-) cable-to-negative (-) battery terminal retainer to
5.5 Nm (4 lb. ft.).
