Backup Lamp: Service and Repair

Removing Rear Combination Lamp Assembly:

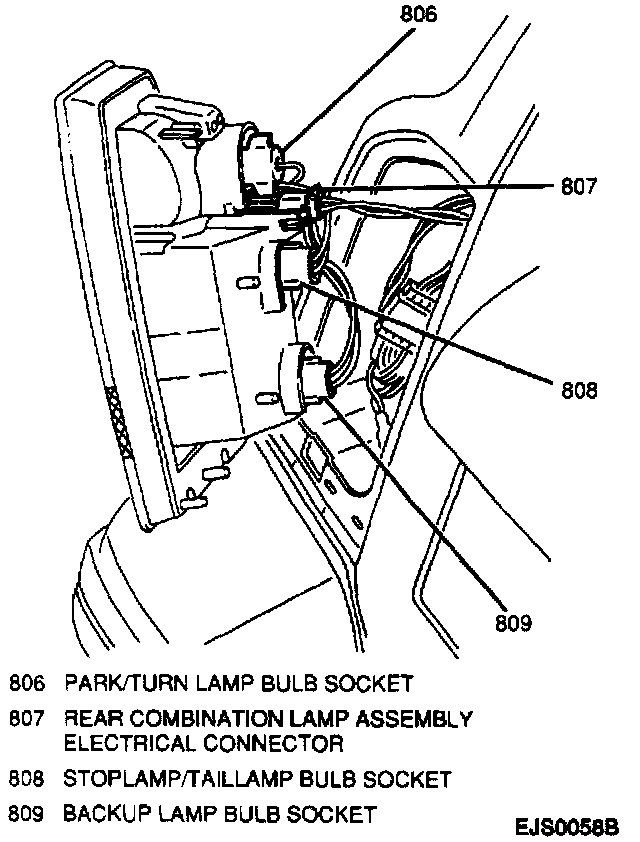

Rear Combination Lamp Identification:






Remove or Disconnect
1. Negative (-) battery cable.
2. Two screws at bottom of rear combination lamp assembly.
3. Rear combination lamp assembly from vehicle by pulling upward and rearward.
4. Backup lamp bulb socket from lamp assembly.
5. Backup lamp bulb from socket.

Install or Connect
1. Backup lamp bulb to socket.
2. Backup lamp bulb socket to lamp assembly.
3. Rear combination lamp assembly to vehicle; secure with two screws.
4. Negative (-) battery cable.
